Descriptions:

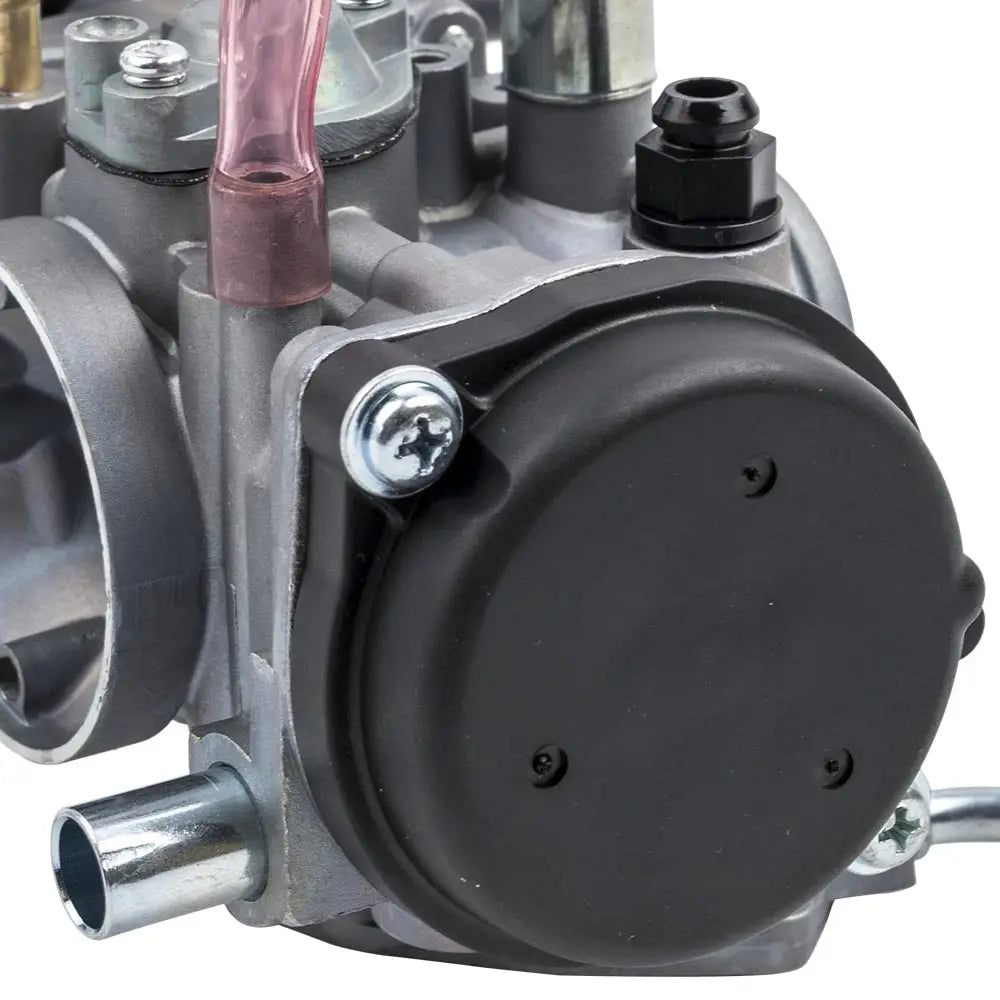

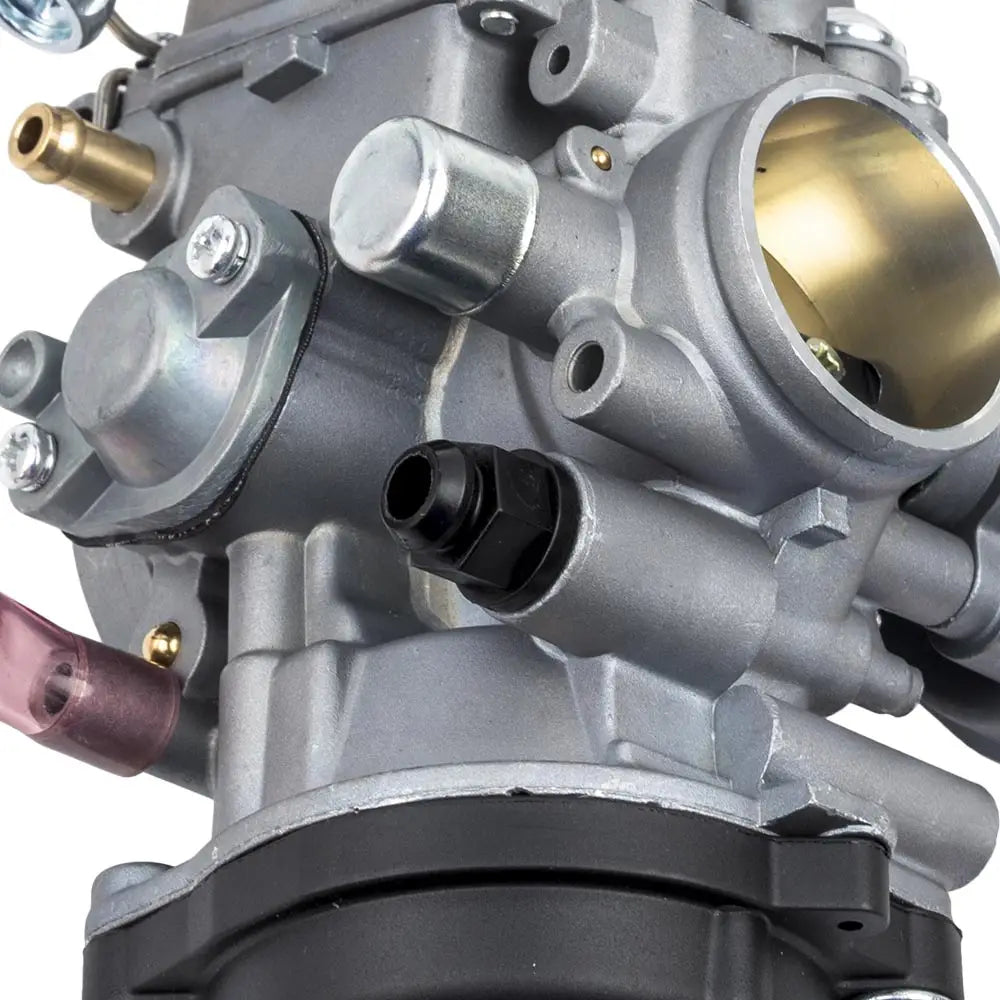

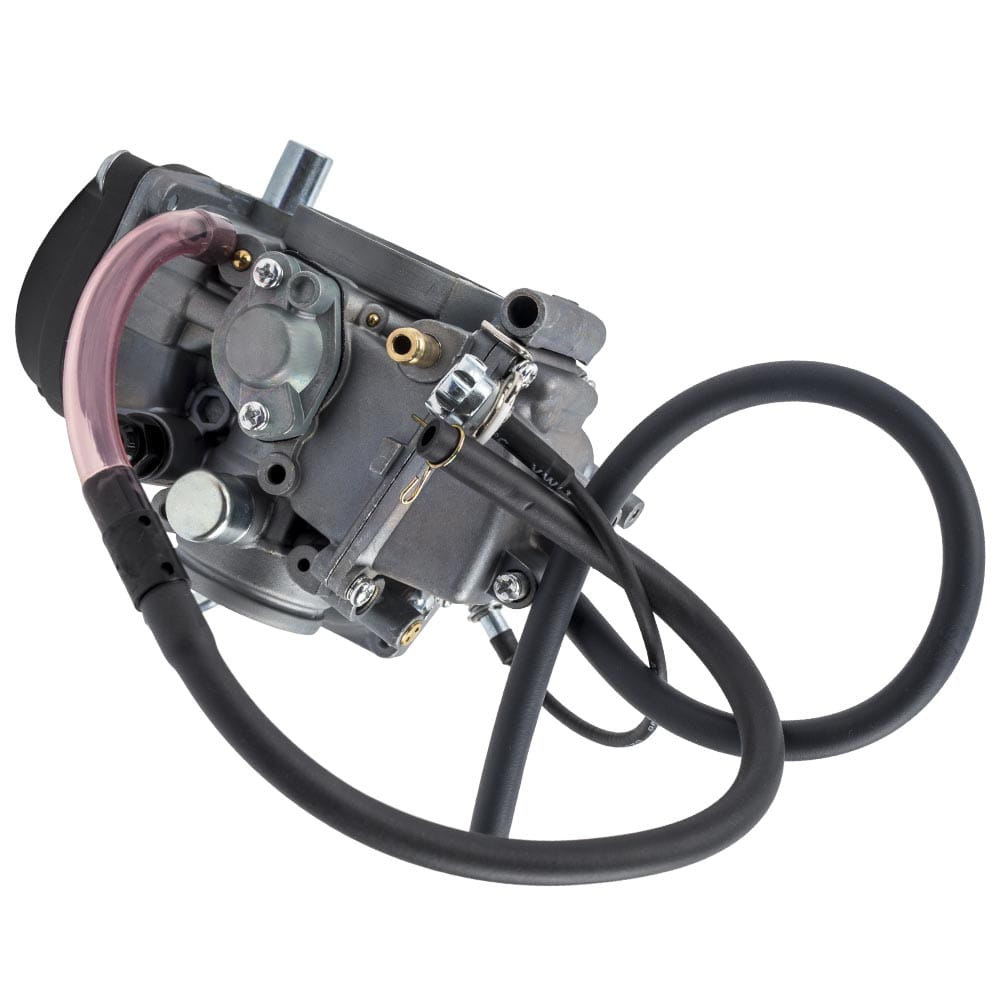

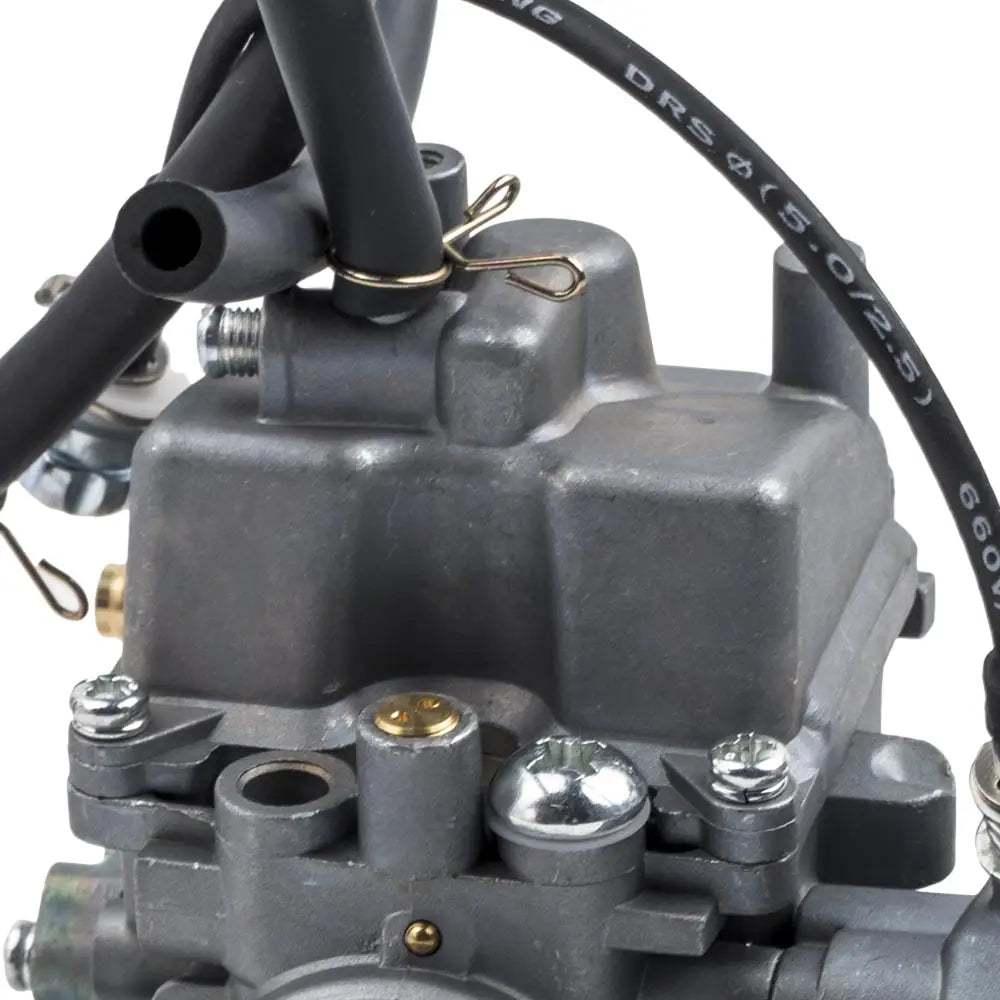

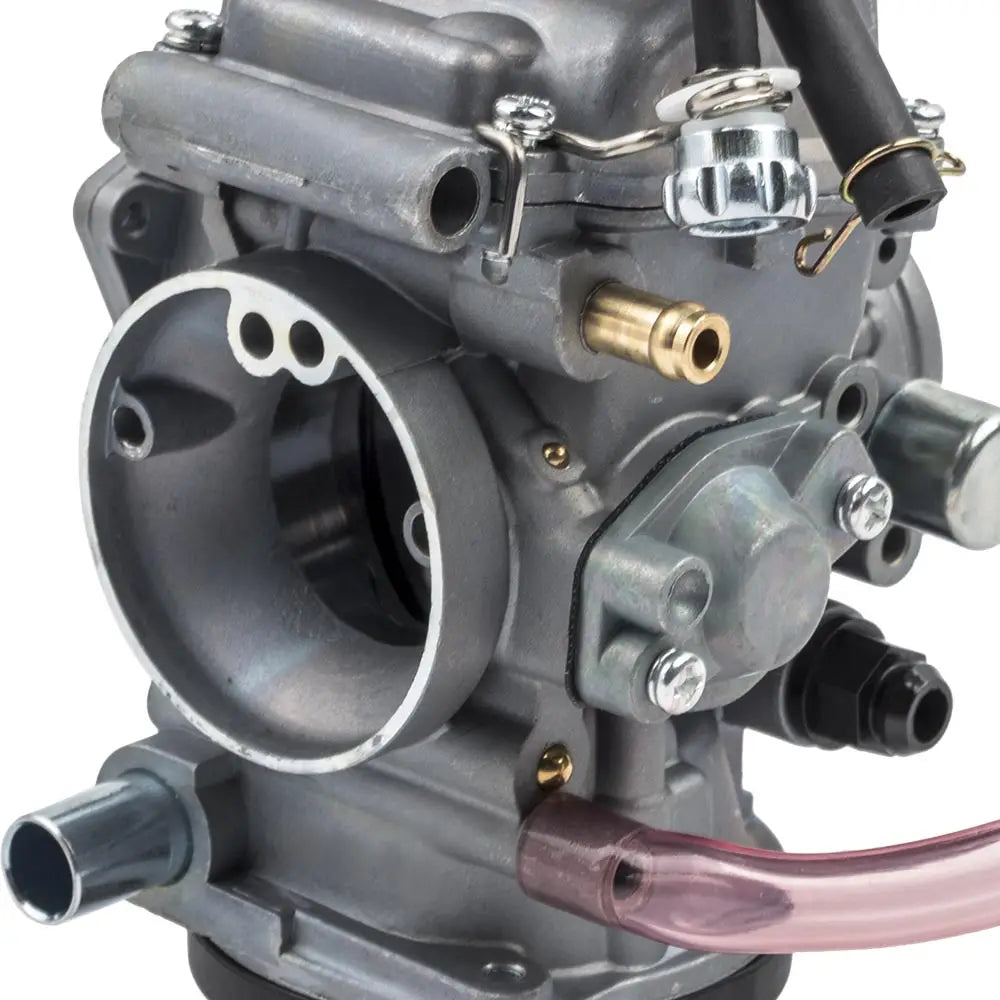

1. Comes with shatterproof sealed and corrosion resistant case.,The carburetor is made of chrome-platedZinc alloywhich provides better wear resistance, insulation and heat resistance.

2. Improved air intake holes to improved airflow structure,stable performance and sensitive reaction,If your vehicle with issues of slow start, unstable idle speed, high fuel consumption, oil spill, poor speed and poor power, Manufactured and tested to help deliver optimum engine capability.

3. The carburetor can stably control the intake air volume of the engine, The perfect solution for the appropriate ratio of air and fuel mixture, and improve fuel economy, provides great power and torque.It's an ideal replacement for your stock one,and will make your engine run like new!

4. ATTENTION:Please verify the year/make/model of your vehicle and refer to our detailed fitment information on product description page below, if you do not sure, please kindly contact us.

Fit for:

for Yamaha BIG BEAR 250 2007 - 2009
for Yamaha BIG BEAR 400 YFM 400 2x4 & 4x4. 2001 - 2007
for Yamaha BRUIN 250 YFM 250 2005 - 2006
for Yamaha BRUIN 350.2x4 & 4x4. 2004 - 2006
for Yamaha ATV KODIAK 400 2WD 4WD 2000-2003
for Yamaha KODIAK 450 4x4 2003 - 2006
for Yamaha WOLVERINE 350 2x4 & 4x4 2006 - 2009
for Yamaha WOLVERINE 450 4x4. 2006 - 2010
for Yamaha GRIZZLY 350 2x4 & 4x4. 2007 - 2010
for Yamaha GRIZZLY 400. 2000
for Yamaha GRIZZLY 450 4x4. 2007 - 2012

Features

- Tested For good reliability and performance
- Brand new
- Heavy duty Zinc alloy construction
- Direct Fit, No Modification Needed
- 2 year warranty for any manufacturing defects

Specifications:

- Inner diameter (intake side): 33mm
- Outer diameter (intake side): 37mm
- Inner diameter (air filter side): 48mm
- Outer diameter (air filter side): 52mm
- Material: Zinc alloy
- Weight: 0.9kg
- Warranty: 2 Years
- Package size: 16*12*12cm

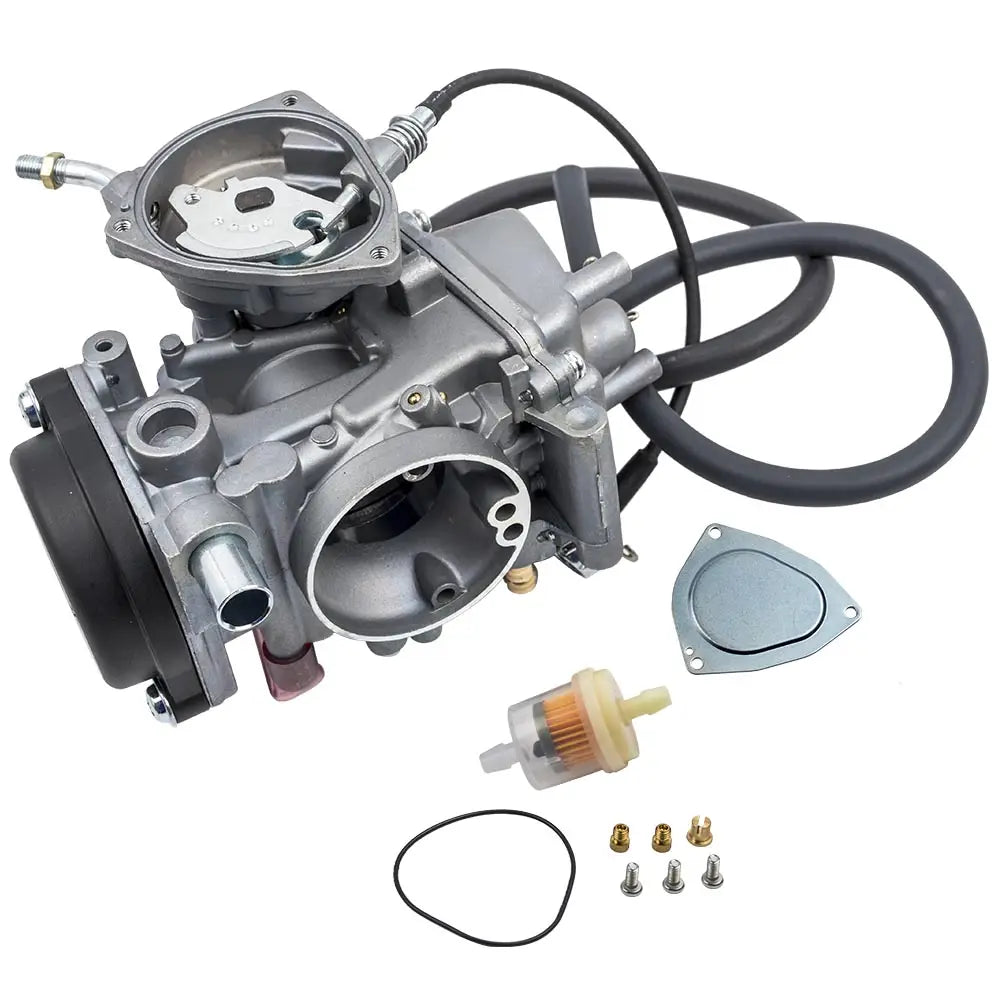

Package Content:

1x Carburetor.

1x Throttle Base Cover.

1x Throttle Base Rubber Gasket.

1x Throttle Cable Clip.

3x Base Cover Screw

1x FREE Inline Fuel Filter

Carburetor cleaning process:

(1) First remove the carburetor from the car
Turn off the oil and unplug the oil pipe. Twist out the nut connecting the carburetor and the engine with a quincunx or quincunx (depending on the size of the nut), and then twist out the screw that connects the carburetor to the filter. Finally, remove the throttle cable. Turn off. Oil, unplug the oil pipe.
(2) Remove the carburetor float chamber
Use a cross knife to twist out the three screws of the carburetor float chamber cover
(3) Understand the carburetor
After disassembling the carburetor, let's get to know the names of its parts
(4) Decompose the various parts of the carburetor
Remove the main fuel injection hole, idle fuel injection hole and float of the carburetor
(5) Start cleaning the carburetor
Use the carburetor cleaning agent to aim at each measuring hole and spray (note that the eyes should not be aimed at the carburetor, so as not to spray the cleaning agent into the eyes)
(6) Install carburetor
After cleaning, the carburetor can be installed. Then you can load him into the car.

★ 15-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
