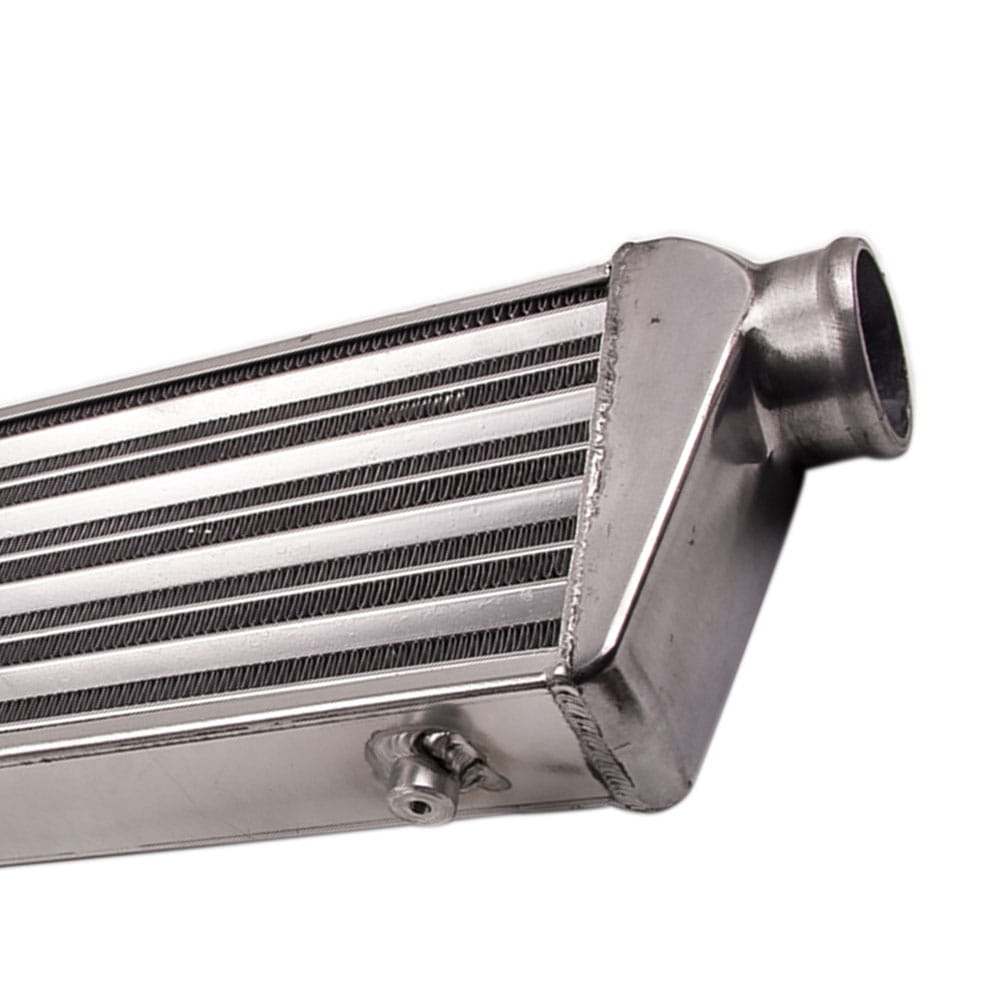

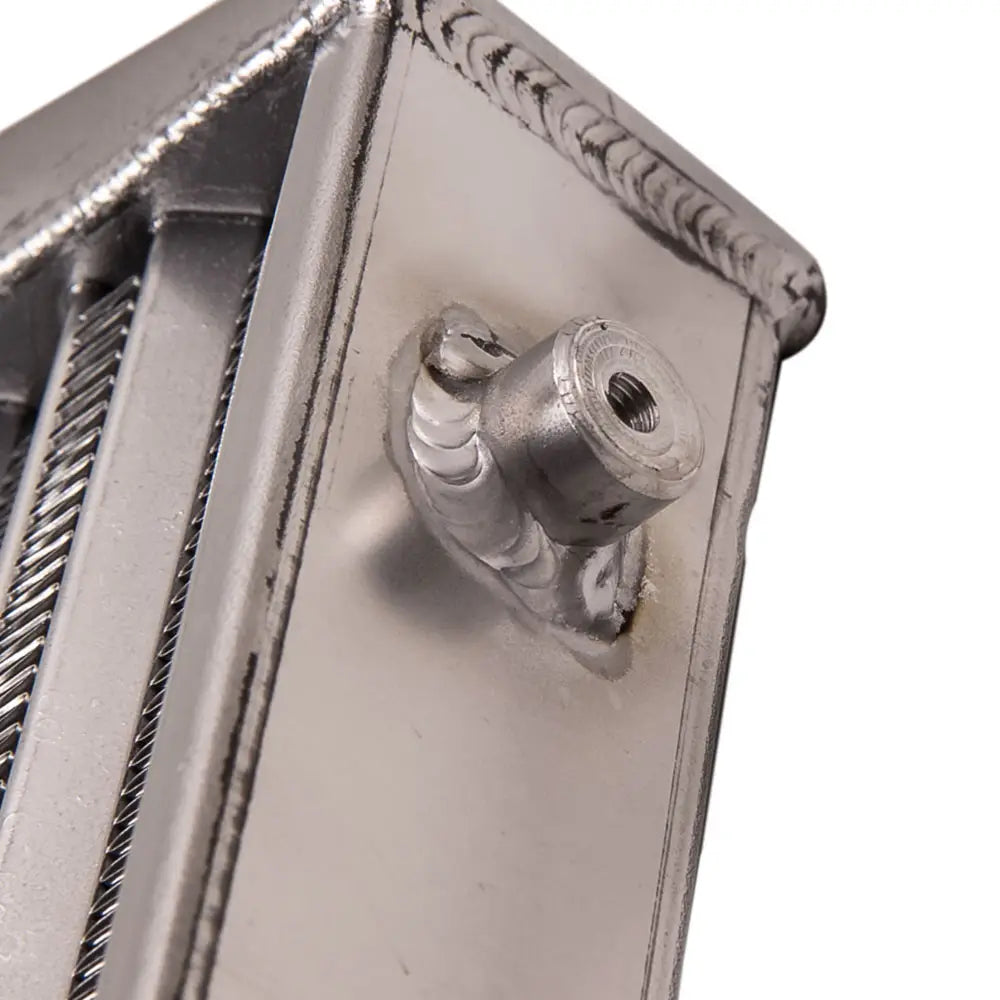

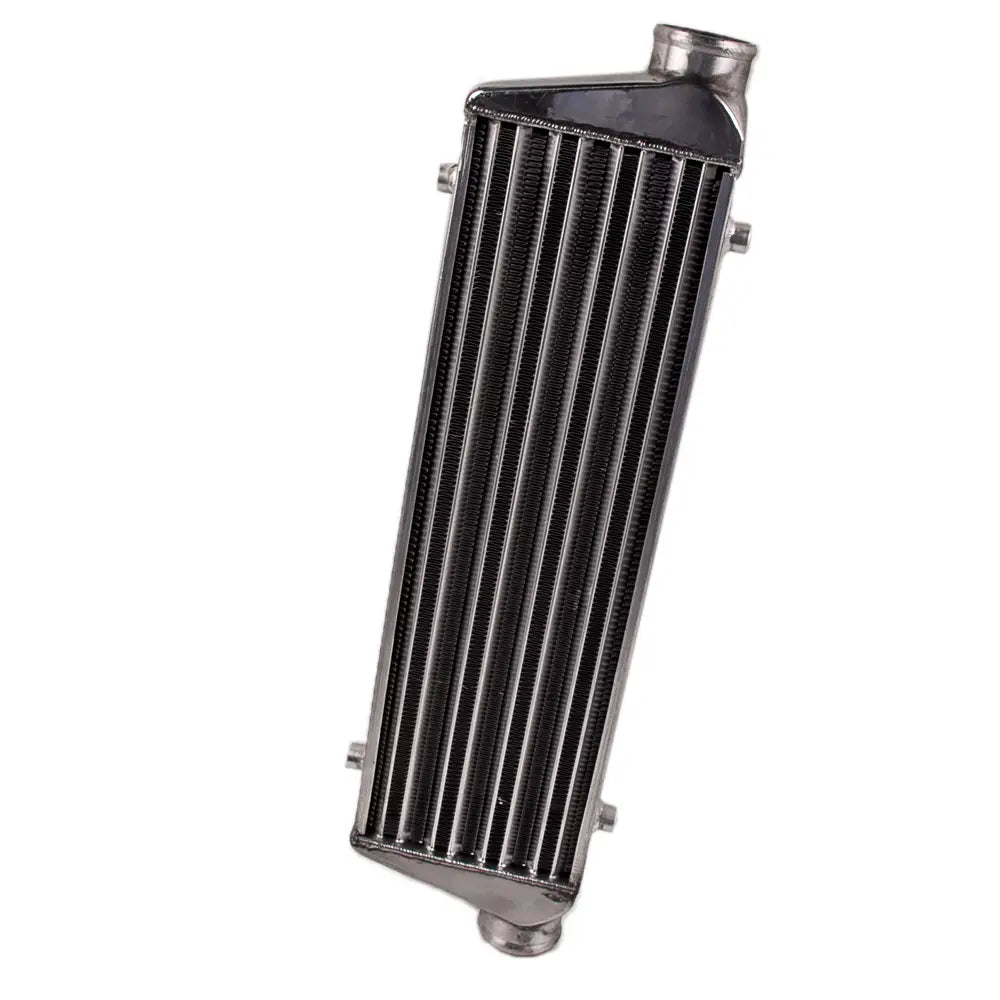

Universal Front Mount Intercooler Tube Fin 550*175*64 Core 21*7*2.25

Application: Universal (Please take correct measurements to make sure it will fit in the location)

INTERCOOLER OVERALL SIZE: 27"x7"x2.5"

Features:

1. 100% brand new condition never used.
2. Tube & Fin Design
3. Light weight designed. Made of Aluminum.(Increase 10-20 HP).
4. Constructed with T6061 aluminum and precision TIG welded.
5. Extremely strong one-piece cast aluminum end tanks withstand high boost pressures.
6. PSi Drop under 0.2. Other Intercooler usually drop 10Psi Some are More.
7. Max PSi is 30 Up to 400HP

Specification: Intercooler exchange device used on turbocharged and supercharged internal combustion engines to improve their volumetric efficiency by increasing intake air charge density through nearly isobaric cooling, which removes the heat of compression that occurs in any gas when its pressure is raised or its unit mass per unit volume is increased.

sepecification:

Condition: 100% Brand New
Inlet/outlet size: 2.5"
Full size: 27.00" (L) X 7.00" (H) X 2.50"(IN)
Core size: 21''x 7''x 2.25''
weight: 3.160kg
Compress Air Flow Rate＜350Cubic Feet/Min，Rated up to 500 Max HP
Pressure drop: 2~5psi at 35psi, 0.2~0.5psi at 15psi
Material: Aluminum, Light weight designed
Core design: Tube & Finn
Quantity: 1 piece
Warrants: 2 years
Quantity: 1 piece

Direct Replacement, No Modifications Necessary

Performance Tested to Meet or Exceed Standard Manufacturer Quality

Notice:

1.Universally Fits Any Vehicle and Turbo Project
2. Please measure the area where the intercooler is planned to mount on to see if the dimension of this item fits the allotted space.
3. Modification might be Required for Some Vehicles
4. Professional installation is highly recommended
