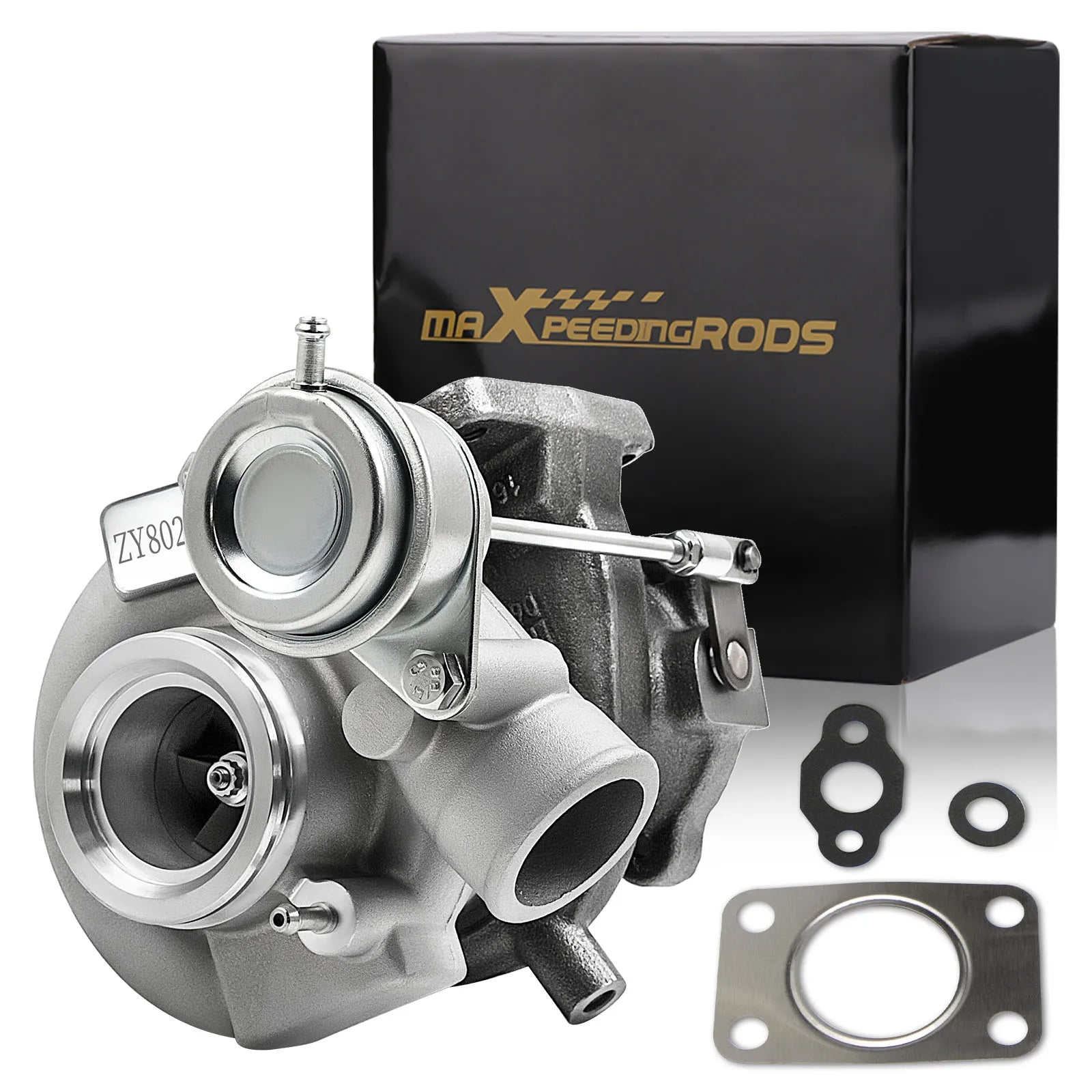

TD04 turbocharger for Saab cars
Turbocharger for selected Saab 9-3 and Saab 9-5 models with 2.3 Turbo engines. This product uses the TD04 turbo model and the TD04HL-15T variant. Before purchasing, please compare the nameplate number of your existing turbocharger, the engine code, and your vehicle's data.
Application
- Saab 9-3 Aero B205R, 205 HP, 2000–2003.
- Saab 9-3 Viggen B235R, 2.3 l engine, 1999–2002.
- Saab 9-5 2.3T Aero B235R, 1998–2005.
- Saab 9-5 B235L, 230 HP, 1998–2006.
Source data indicates that the product does not fit the 2006-2009 Saab 9-5. Applicability may depend on the specific turbocharger number and vehicle configuration.
Technical specifications
- Turbo model: TD04, TD04HL-15T
- Engine codes: B235R, B205R, B235L
- Engine capacity: 2.3 l/2290 cm³
- Number of cylinders: 4
- Power given in source data: up to 230 HP
- Cooling: oil and water
- Bearing type: plain bearing
- Thrust bearing: 270 degrees
- Material according to source data: alloy steel and alloy aluminum
- Dimensions: length 27 cm, width 24 cm, height 22 cm
- Mass: 6 kg
OEM/OE numbers and reference numbers
49189-01800, 49189-01830, 9172180, 55559825, 49189, 01800, 01830, PNE8SG, 49189-01820, 01820.
Important assembly information
Before installation, it's important to determine and correct the cause of the previous turbocharger failure, including oil supply problems, foreign bodies in the intake system, or faulty crankcase ventilation. The source also indicates that the banjo bolt and other bolts may need to be replaced during installation. Installation by a qualified technician is recommended.
Helpful information before purchasing
This turbocharger is suitable for selected versions of the Saab 9-3 Aero, Saab 9-3 Viggen and Saab 9-5 2.3T Aero with B205R, B235R and B235L engines. Compatibility should be confirmed by checking the old turbocharger number, engine code, year and full vehicle information. The product is not suitable for the 2006-2009 Saab 9-5 according to the source information.
The most important information
- Turbocharger model: TD04 and TD04HL-15T.
- Oil and water cooling, slide bearing and 270 degree thrust bearing.
- Applications include selected Saab B205R, B235R and B235L 2.3L engines.
- Reference numbers: 49189-01800, 49189-01830, 9172180 and 55559825.
- Before installation, check the cause of any previous failure of the charging system.

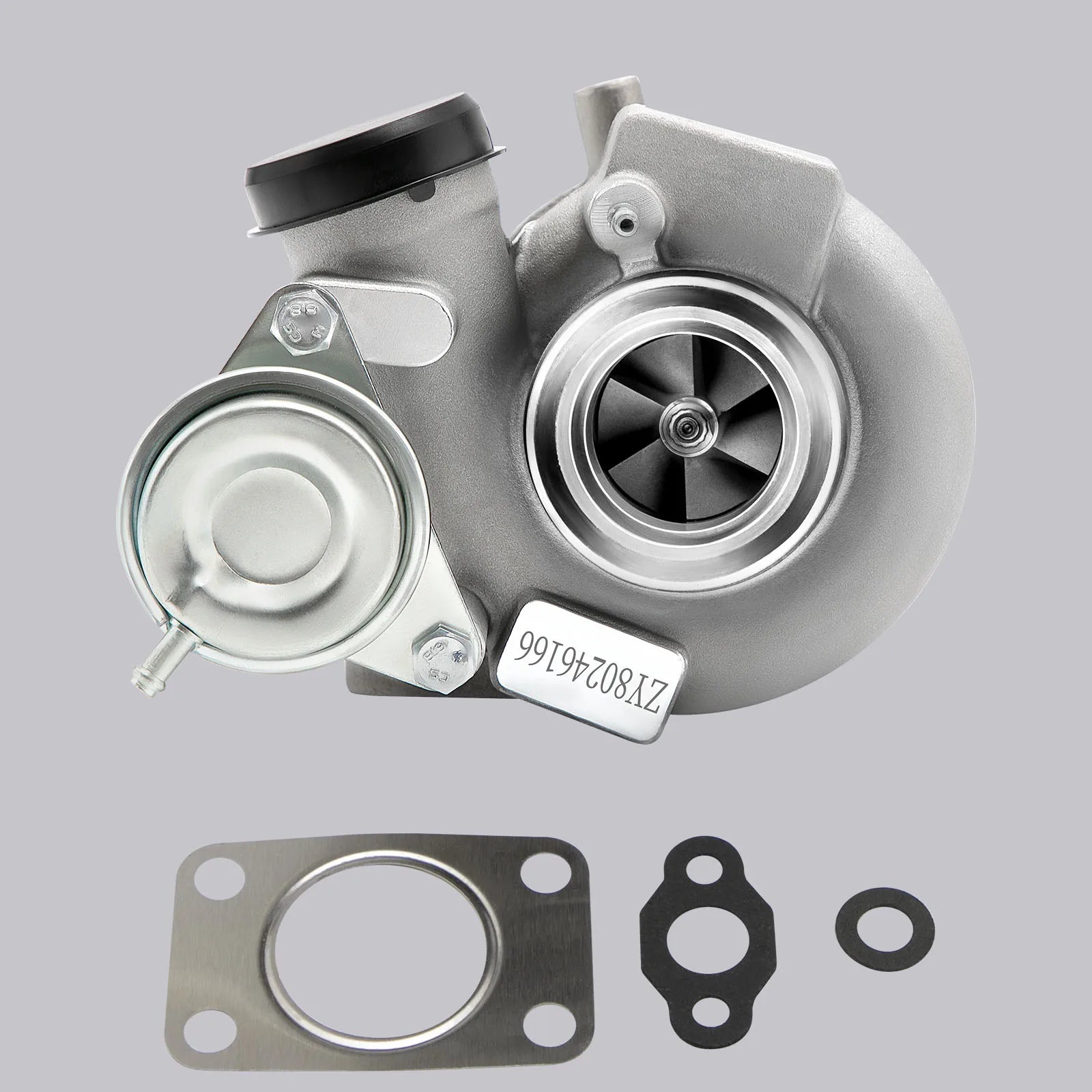

Contents of the set
The source specifies the turbocharger and included gaskets. The scope of other components should be verified prior to purchase based on the product variant presented.
Frequently asked questions
How do I check if a part fits?
Compare the plate number of your old turbocharger with numbers 49189-01800, 49189-01830, 9172180, and 55559825. Also check the engine code, horsepower, year, and model of your Saab. The plate number alone is not sufficient to identify the turbocharger.
Is the product ready for assembly?
The product is offered as a complete turbocharger, but the condition of the lubrication and intake systems should be verified before installation. The source indicates that other bolts, including a banjo bolt, may be required. Instructions are not included.
Does the offer include a complete set?
According to the source, the kit includes the turbocharger and necessary gaskets. Please do not assume that the offer includes all additional hoses, bolts, or mounting hardware.
