SPECIFICATIONS
Brand Name: MXR
Country/Region of Manufacture: cn au de us
Highly-concerned chemical: None
Interchange Part Number: Turbine Exducer Diamter: 55.8mm
Is It Accessories: Yeah
Item Height: 22m
Item Length: 28mm
Item Weight: 7.5kg
Item Width: 26mm
Manufacturer Part Number: yeah
Material: Alloy steel and Alloy aluminum
Origin: Mainland China
Other Part Number: Compressor A/R: 0.5
Placement on Vehicle: Turbine Trim: 73
Special Features: Balanced by Schenker

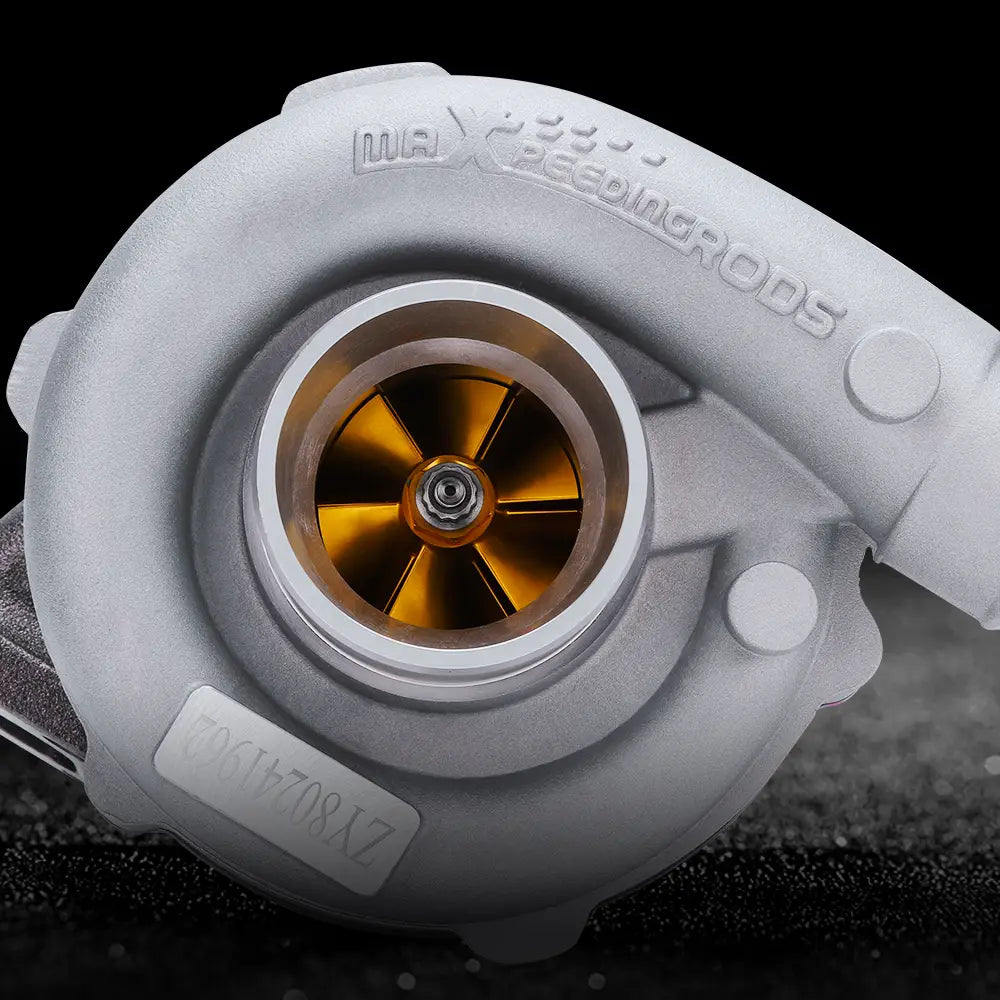

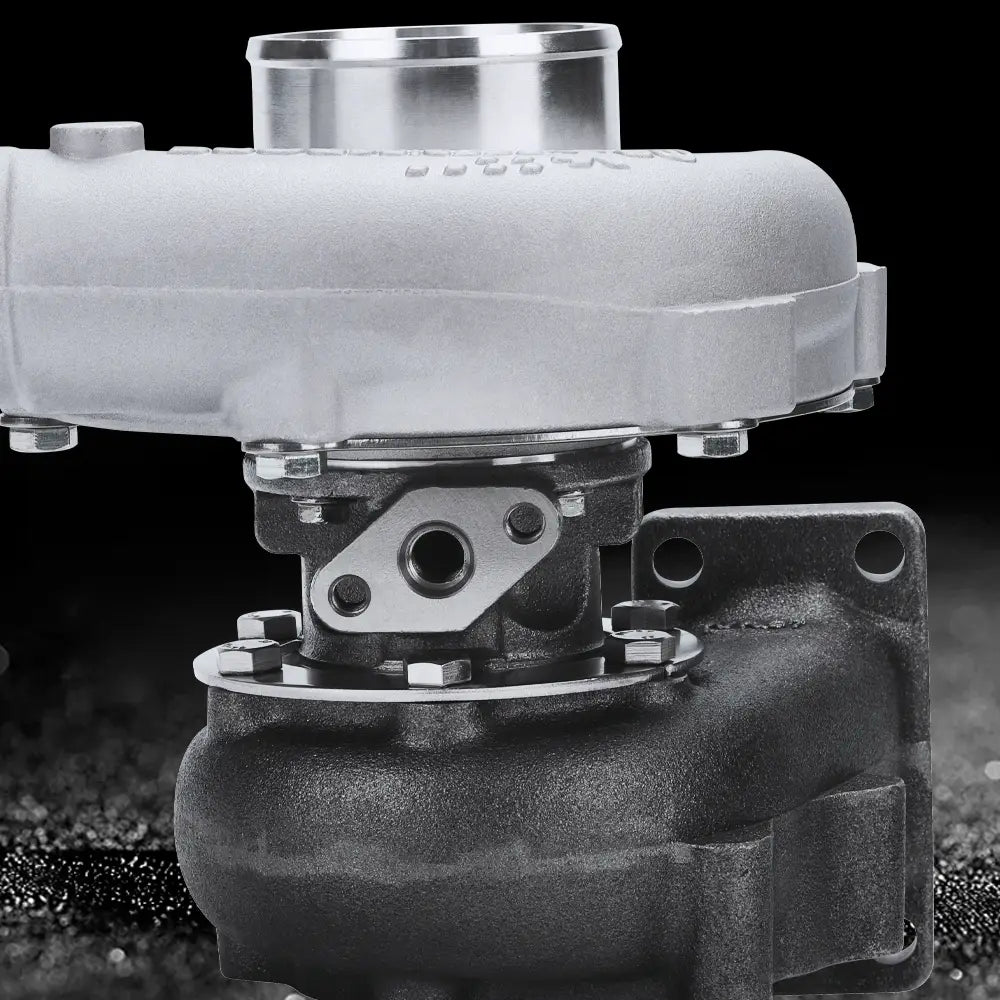

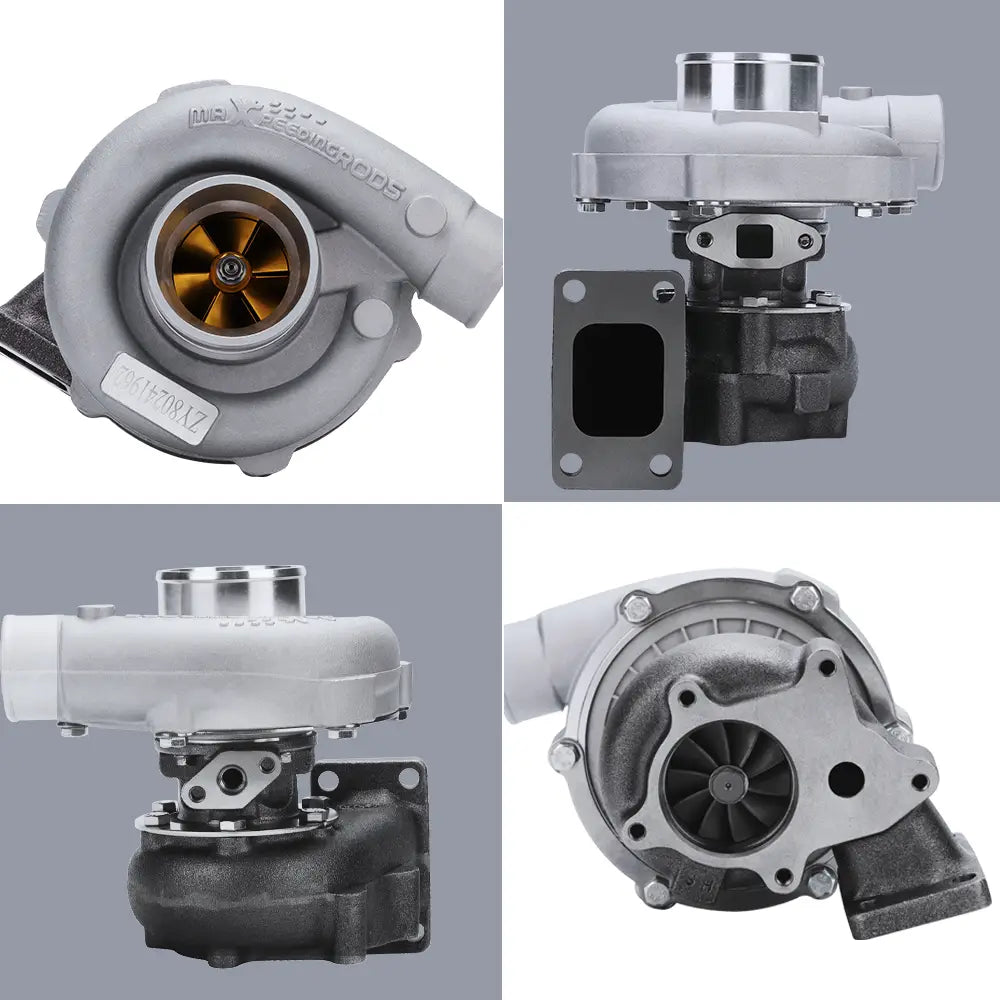

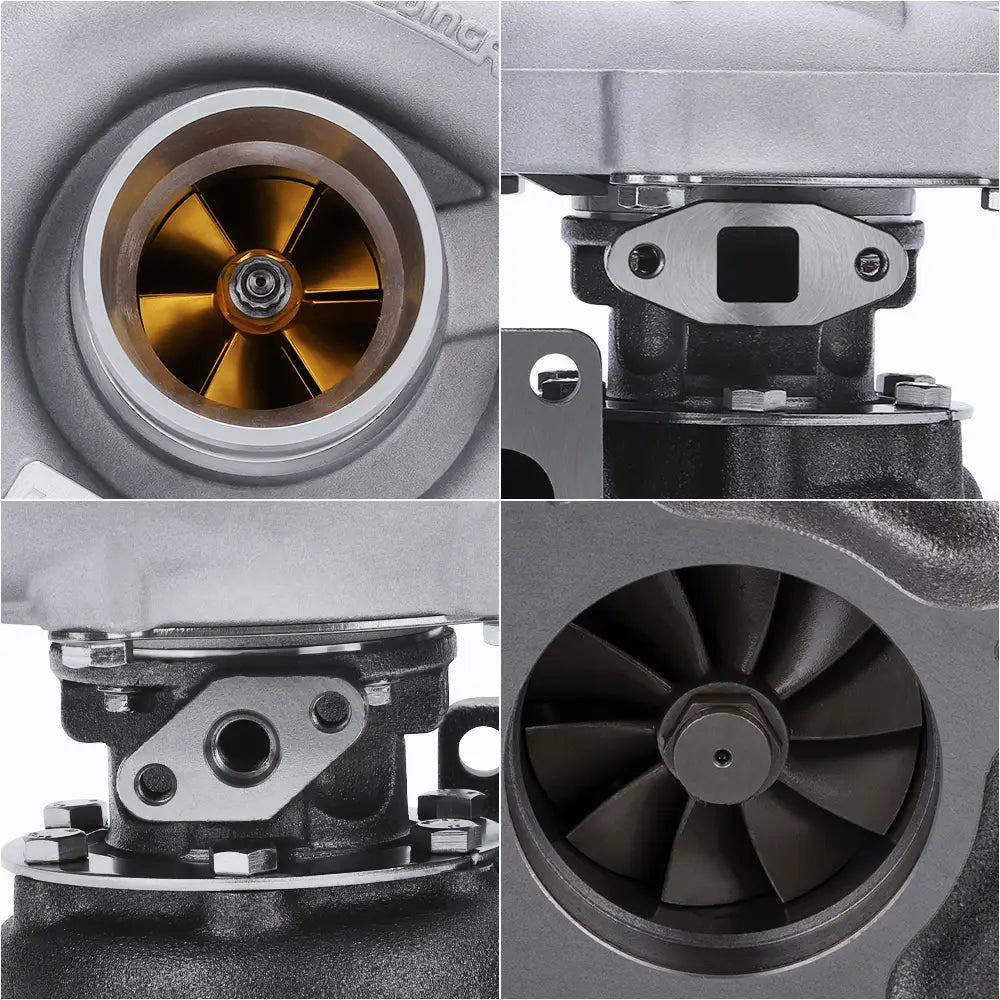

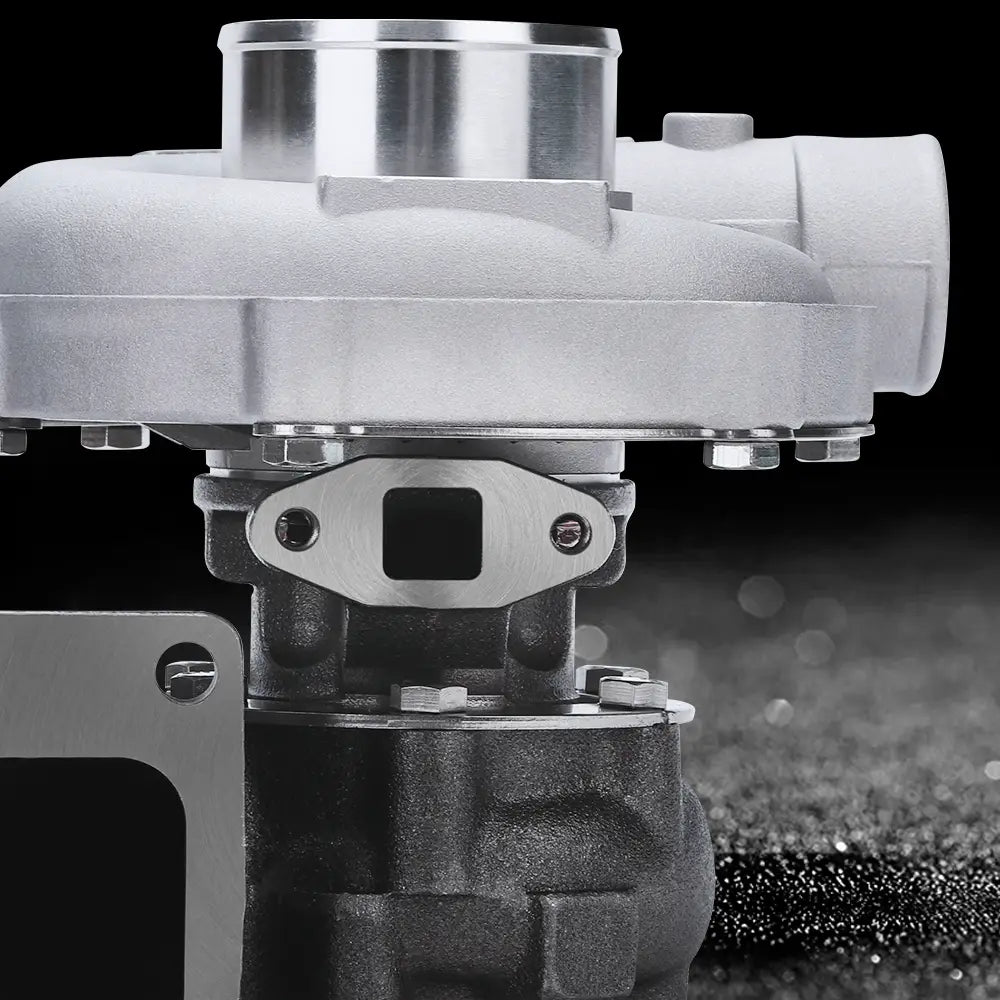

T04E T3/T4 Universal Billet Compressor Wheel Turbocharger 0.57 Turbine A/R
Legal Note: Not For Sale or Use in California, or New York.(for all vehicles registered in these states)
Fit for:
For 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 400+HP
Specification

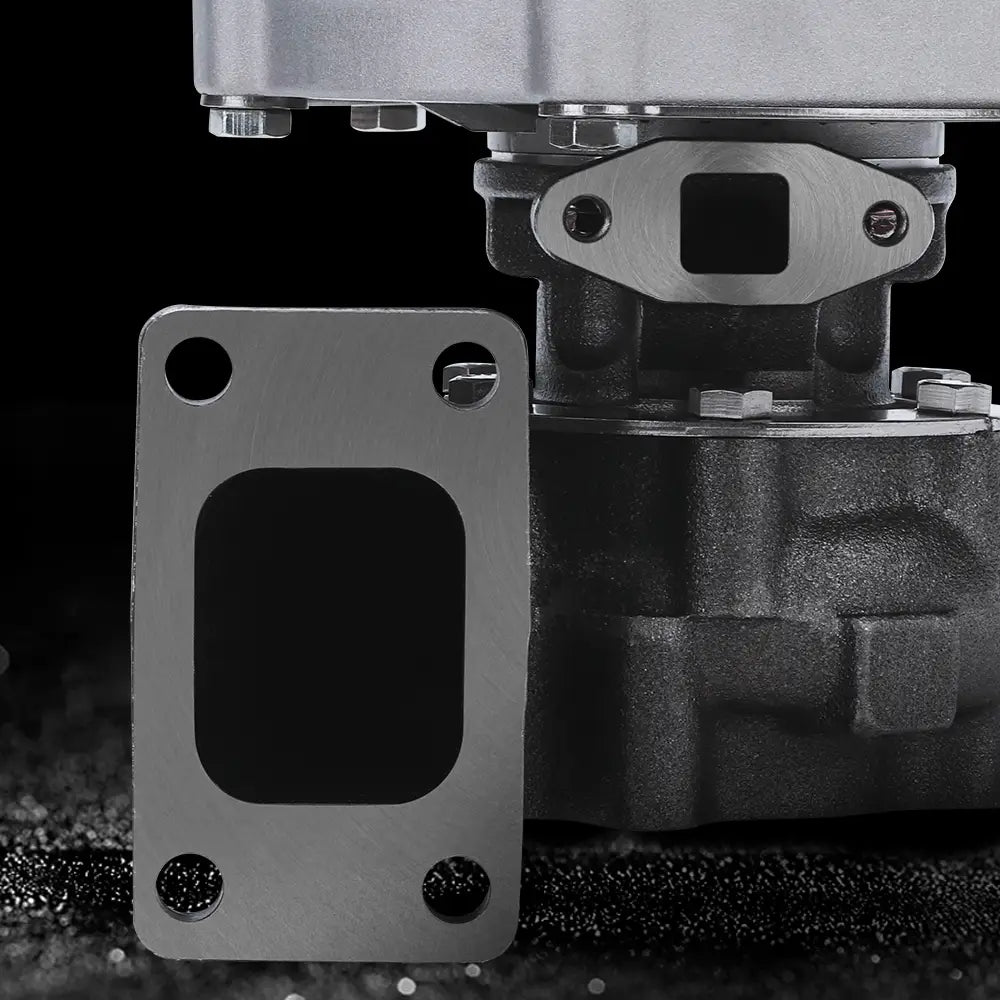

Turbine Intake Flange: T3 T4 4 bolt Flange Patterns

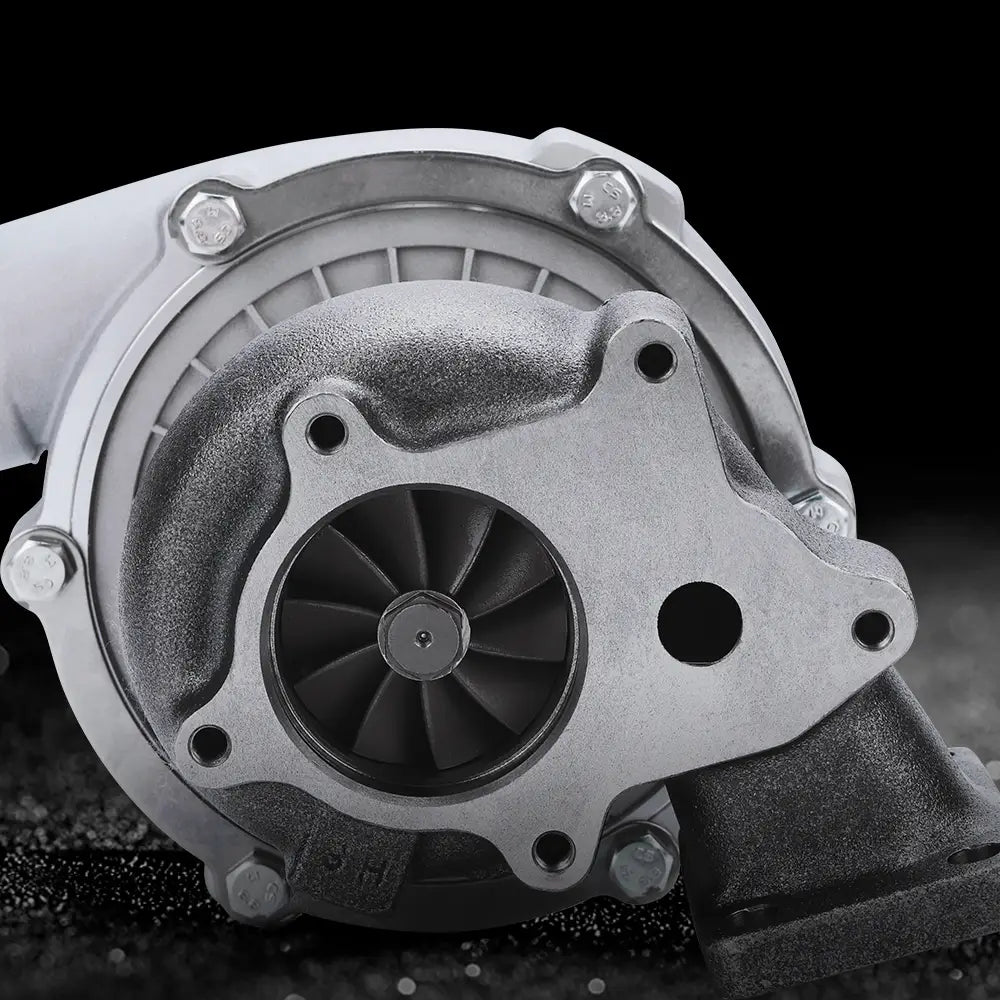

Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Wastegate: Without Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 45mm/87mm
Compressor outlet: 42mm (inside diameter), 52mm (Outer diameter)
Compressor inlet: 68 mm (inside diameter), 77mm (Outer diameter)
Oil Inlet: M12*1.25
Oil Outlet:2*M8*1.25
Cooling Type: Oil Cooled
Bearing Type: Floating Bearing/Journal Bearing
Trust Bearing: 270 degree
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Package Size: 26x24x23 cm
Package Weight: 7250g

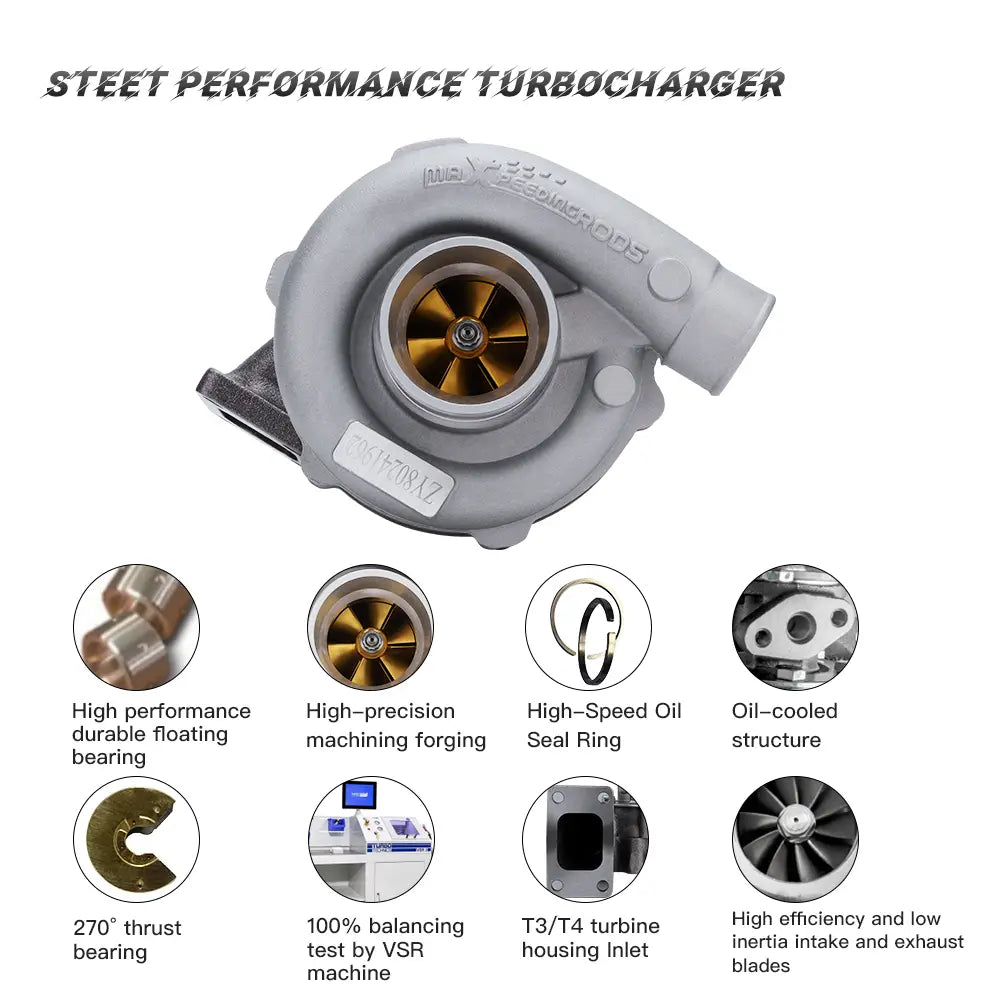

Features:

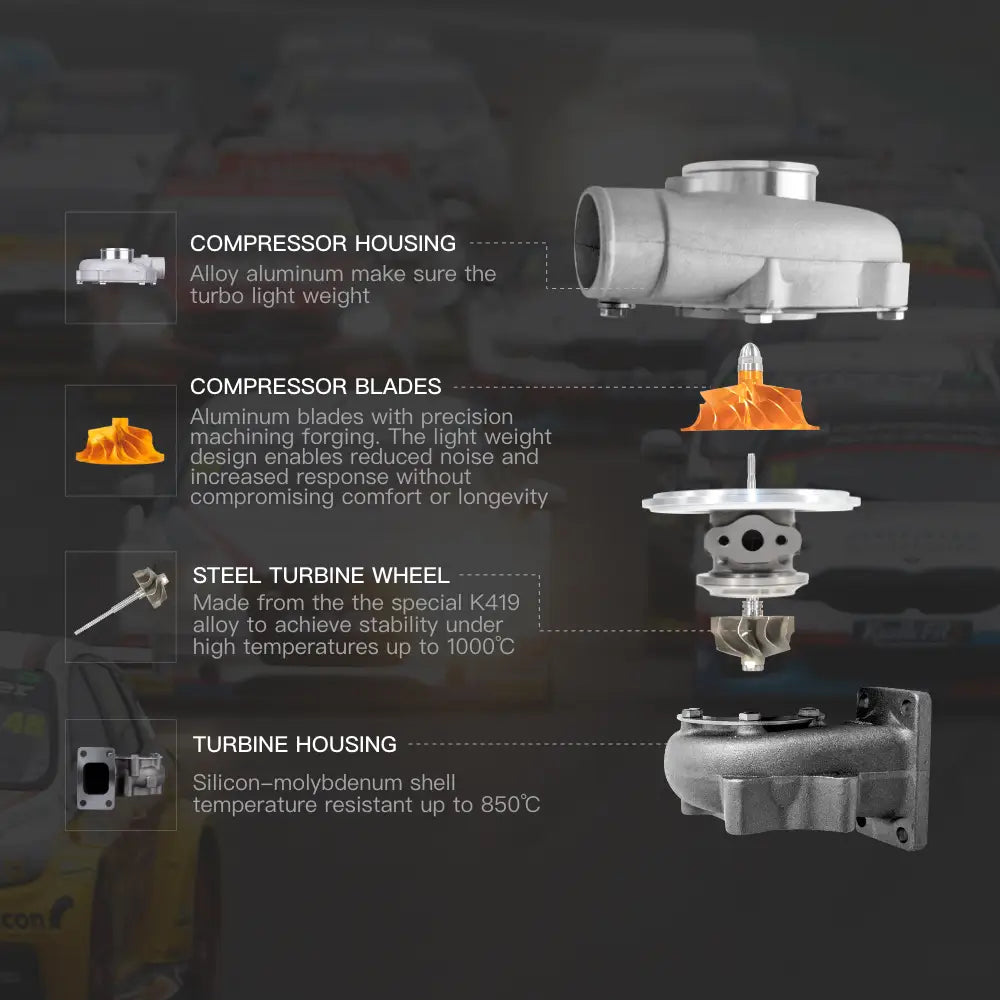

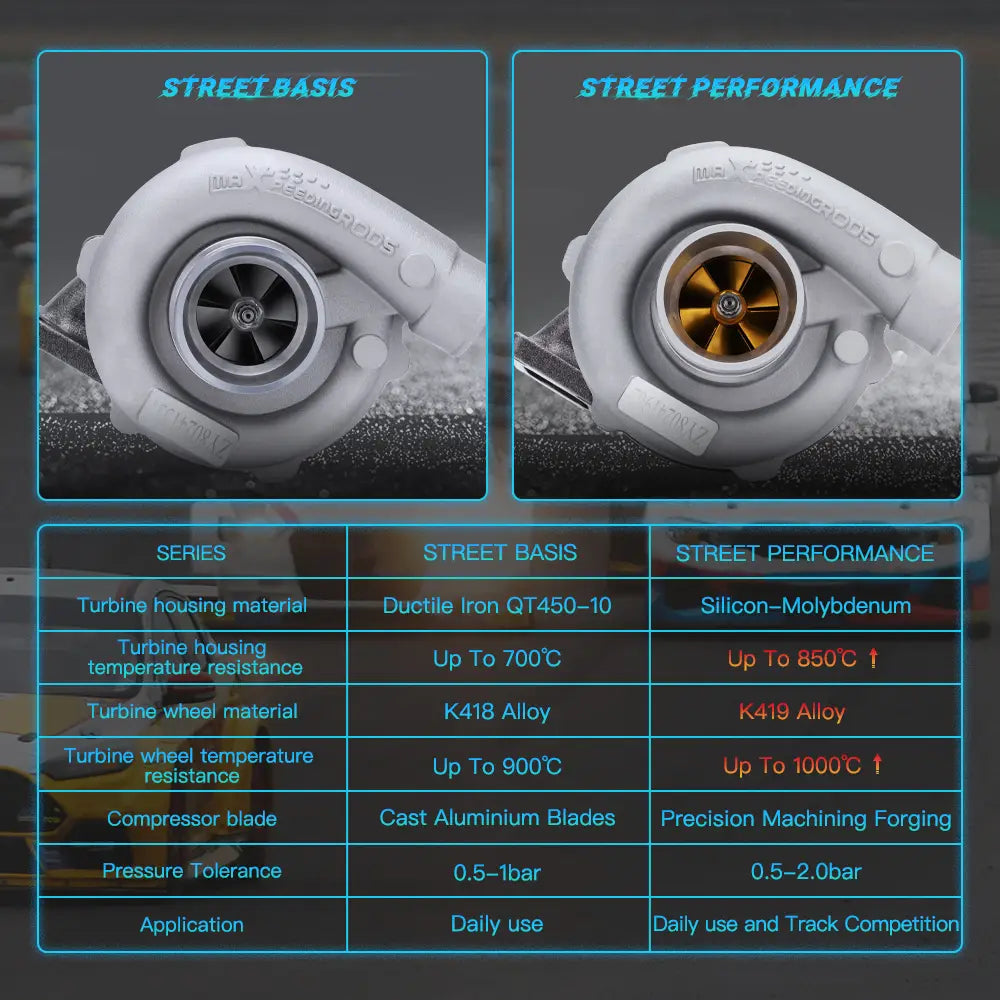

*Product Material
1. Turbine housing: Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Billet Compressor Wheel: forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
*Product Performance
1. Increase 20-40% power for your car
2. Excellent high temperature resistance, high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2.G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
NOTE:
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
