Technical specifications

---------------------------------------------------------------------------

Model: MXR212E

Engine type: Single cylinder, 4-stroke, forced cooling, OHV

Rated power (kW): 3.6

Bore x stroke (mm): 70 x 55

Displacement: 212 cc

Compression: 8.5:1

Starting method: Recoil/electric (battery not included)

Ignition method: Transistor ignition

Power (HP): 7

Fuel type: Gasoline

Oil type: SAE 10W-30

Fuel tank capacity (l): 3.6

Oil capacity (l): 0.6

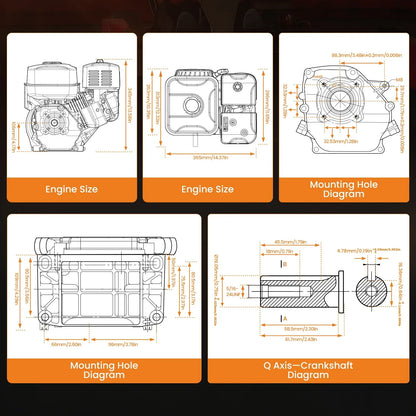

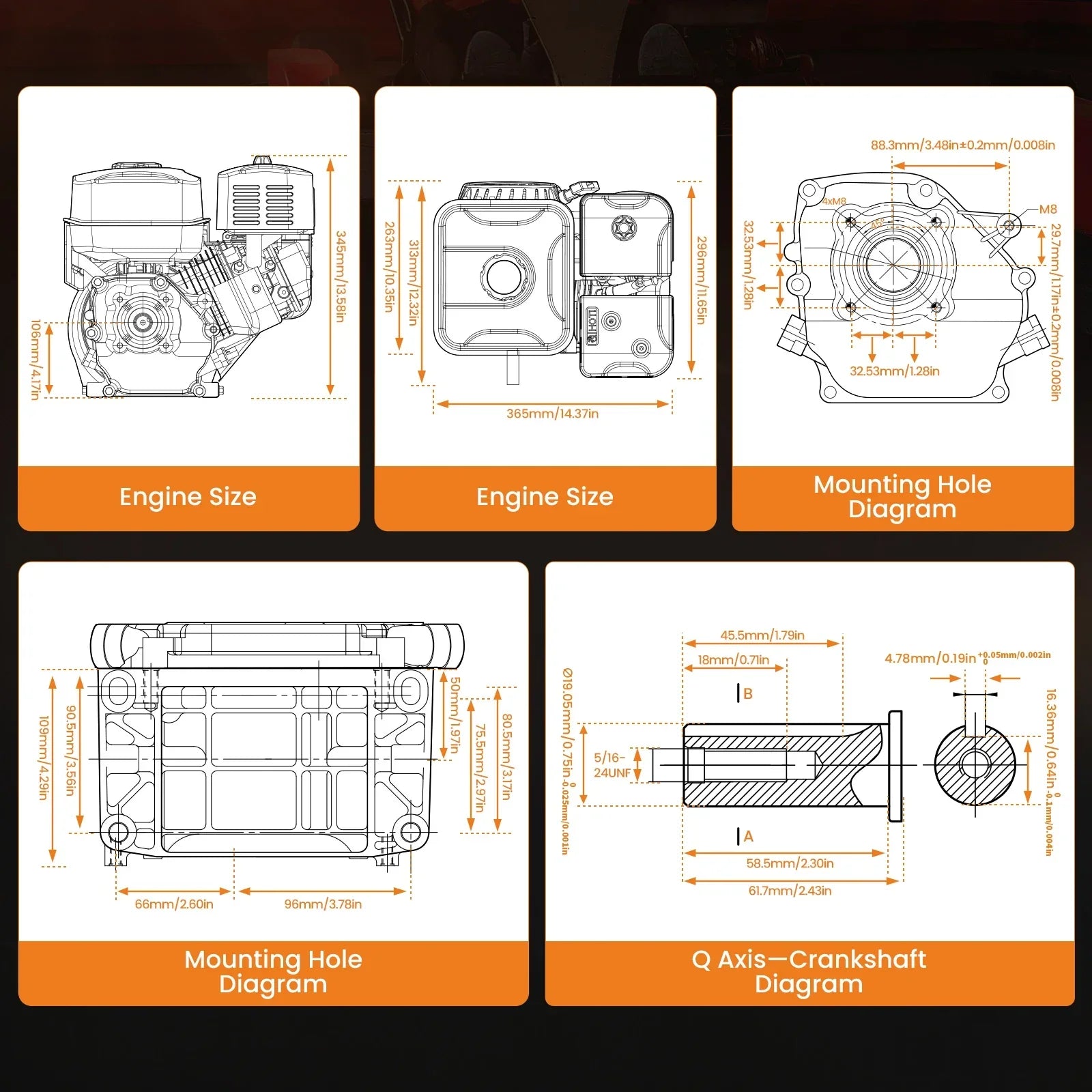

Dimensions L*W*H (mm): 435*325*385

Net weight (kg): 17.5

Gross weight (kg): 18.5

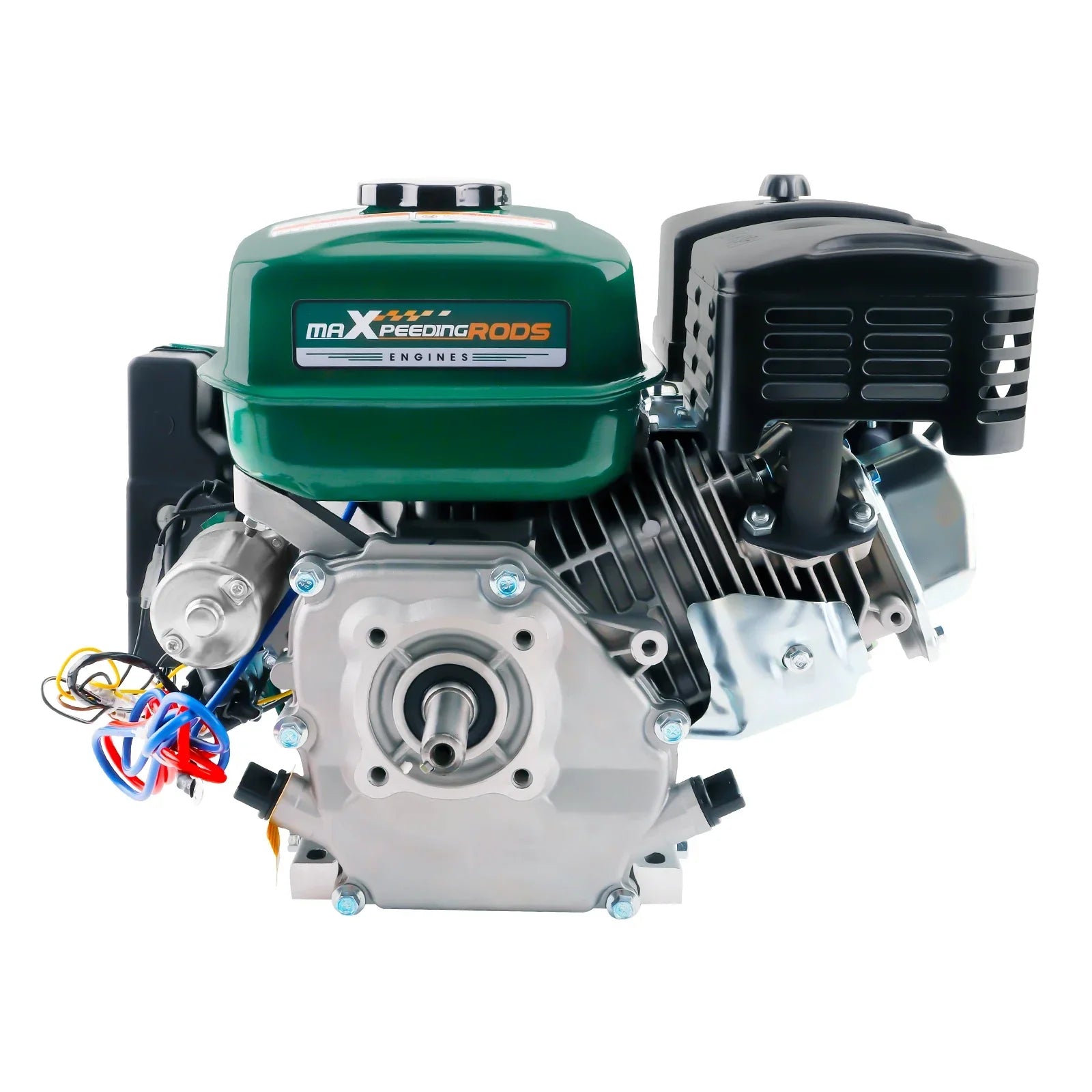

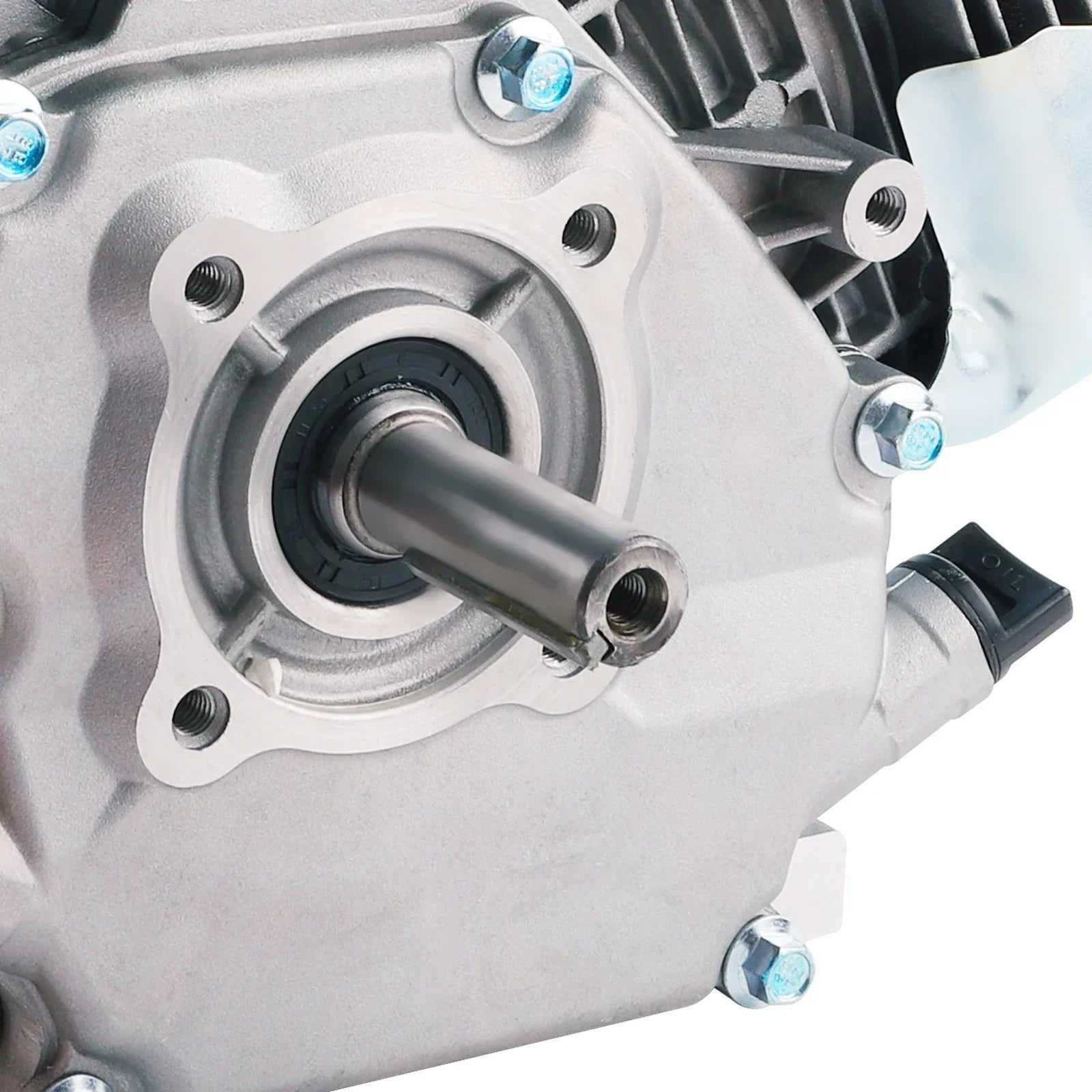

Shaft orientation: Horizontal

Shaft diameter (mm): 19.05

Shaft Fit (mm): 4.78

Shaft Length (mm): 61.7

Shaft End: 5/16"-24 Drilled and Tapped

CE Certified: Yes

Euro V Certified: Yes

Warranty: 2 Years

Highlights

---------------------------------------------------------------------------

【Powerful Engine】: Our petrol engine is a 212cc 4-stroke OHV engine that gives you plenty of power and ensures you can get the job done quickly and easily.

【High Fuel Efficiency】: OHV design for improved power delivery and fuel efficiency.

【Smooth Performance】: Ball bearing crankshaft for greater stability and precision engineered components result in lower vibration.

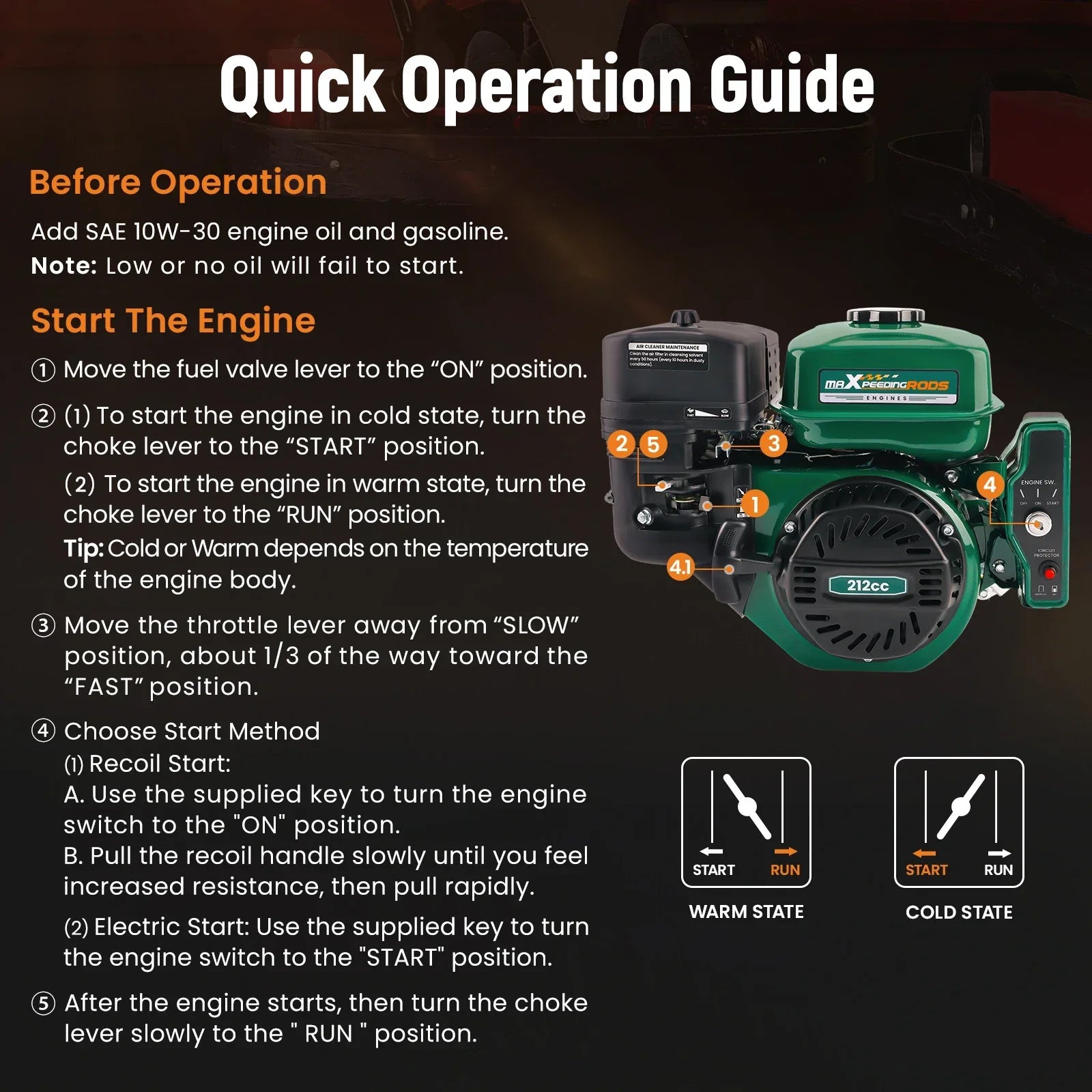

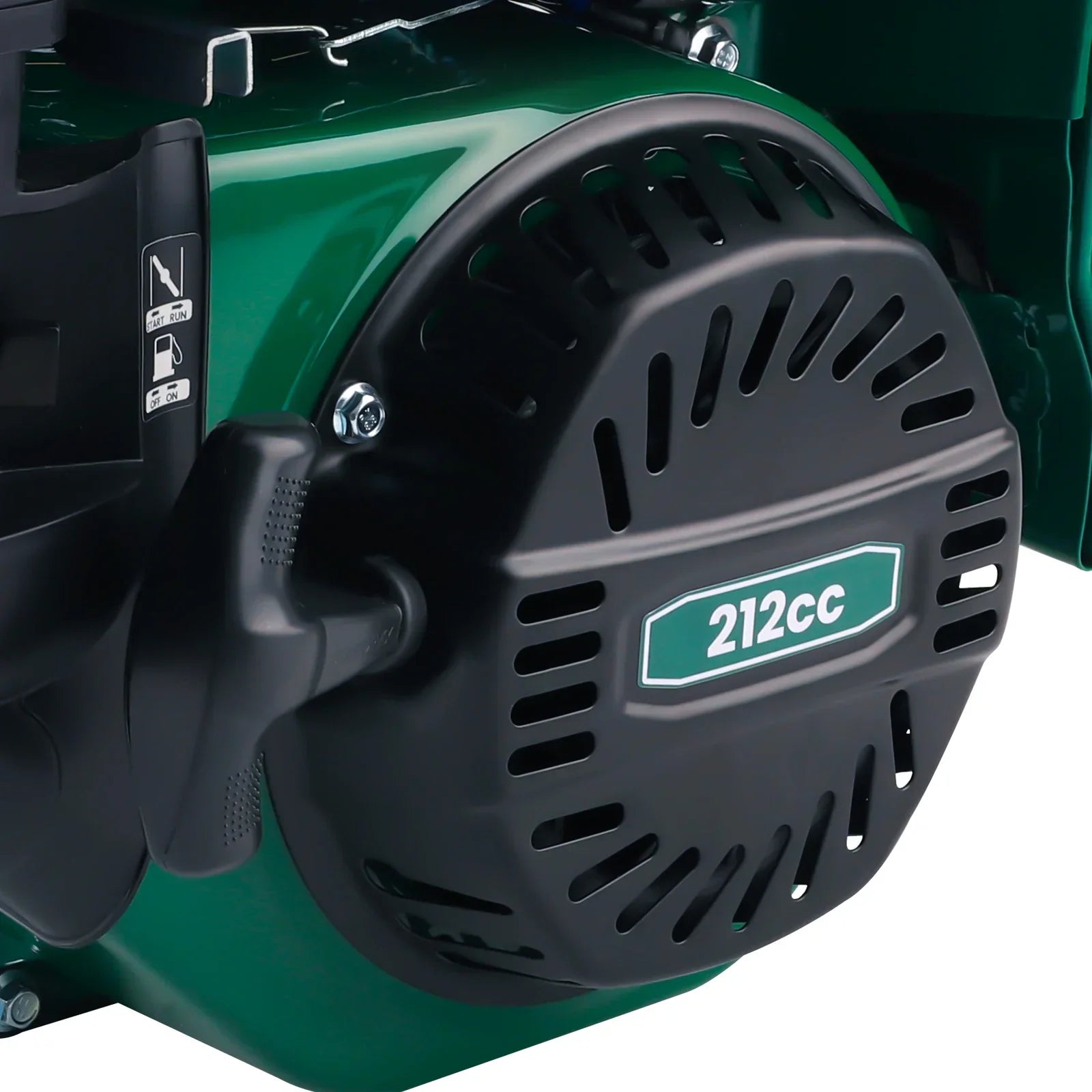

【Easy to Use and Maintain】: Ergonomic easy-grip recoil rope design, simple throttle control, easy-access spark plug.

Oil level sensor shuts off the engine when the oil level reaches too low for safe operation.

【Versatility】: Our engines can be used in a wide range of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.

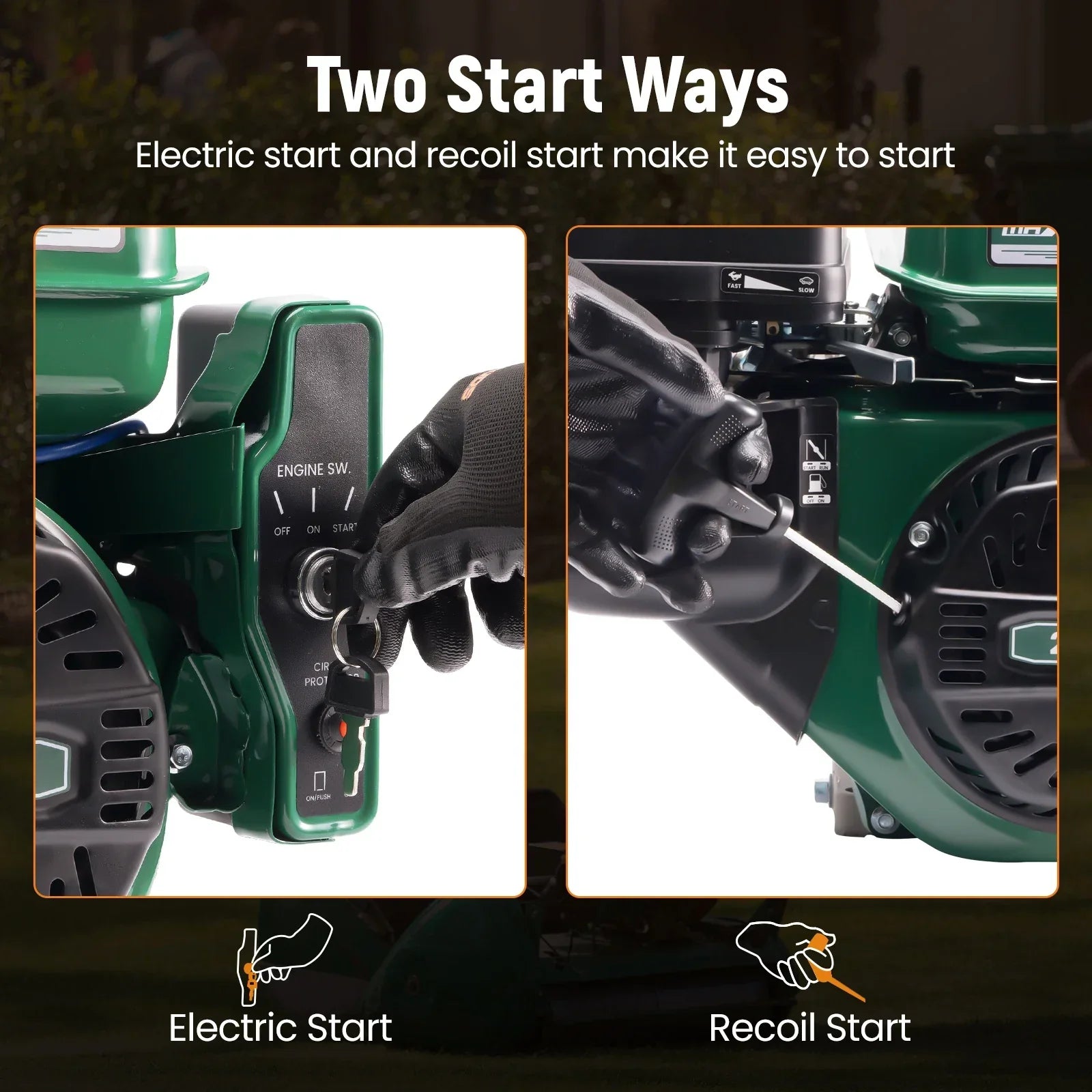

【Dual Start】: Our engine is specially designed with electric starter, just turn the key and you can easily start the engine.

Besides, a recoil starter provides you with a safe double start.(Battery not included)

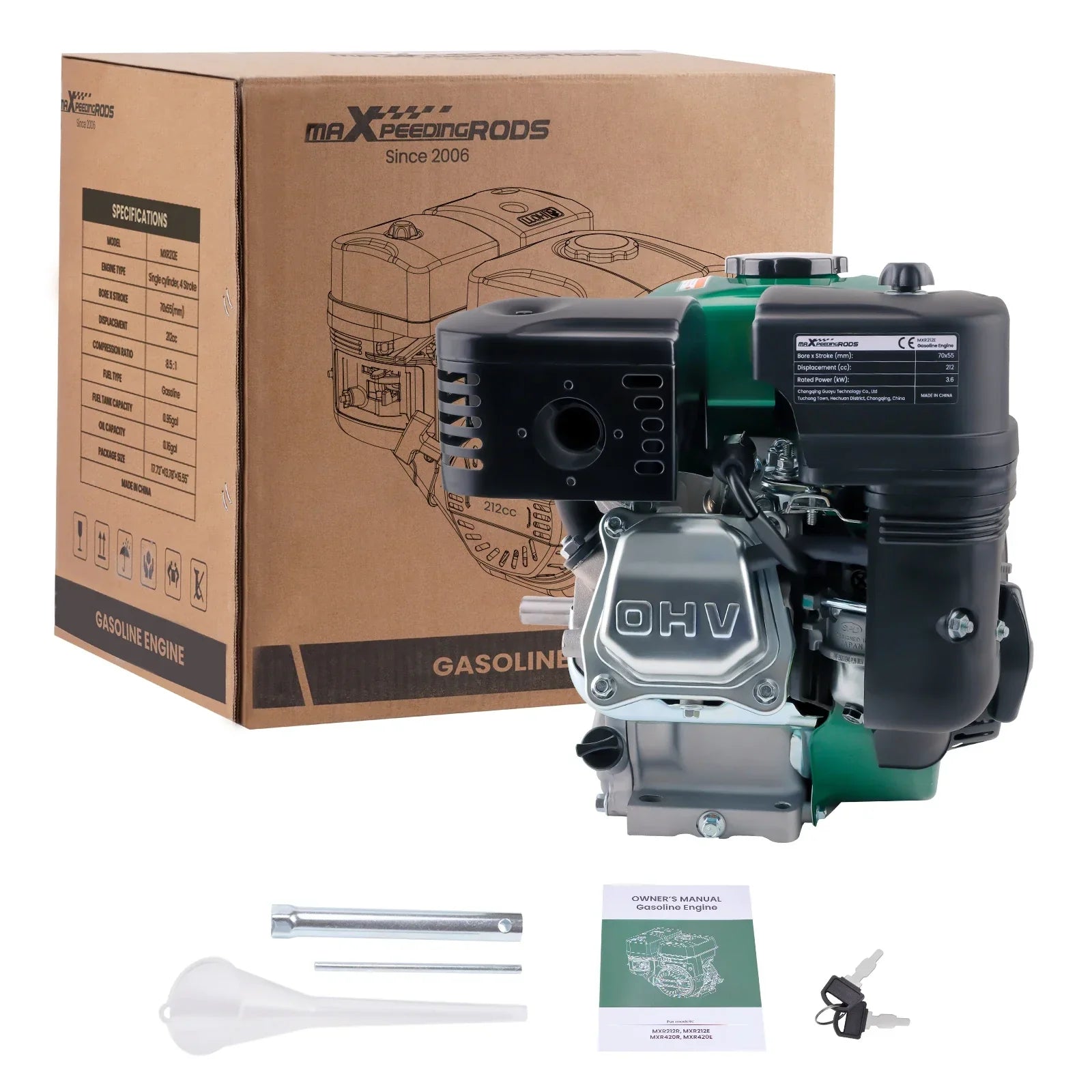

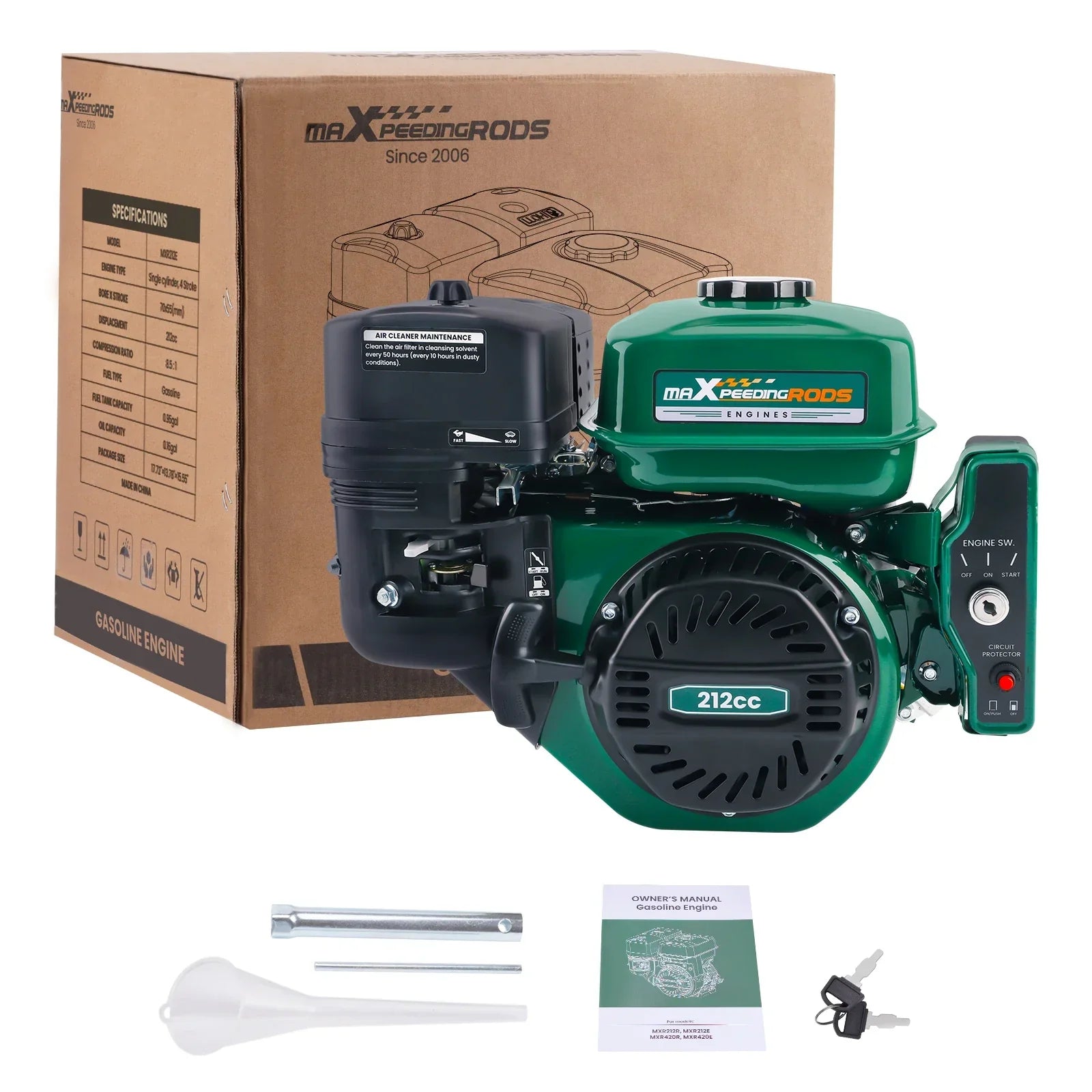

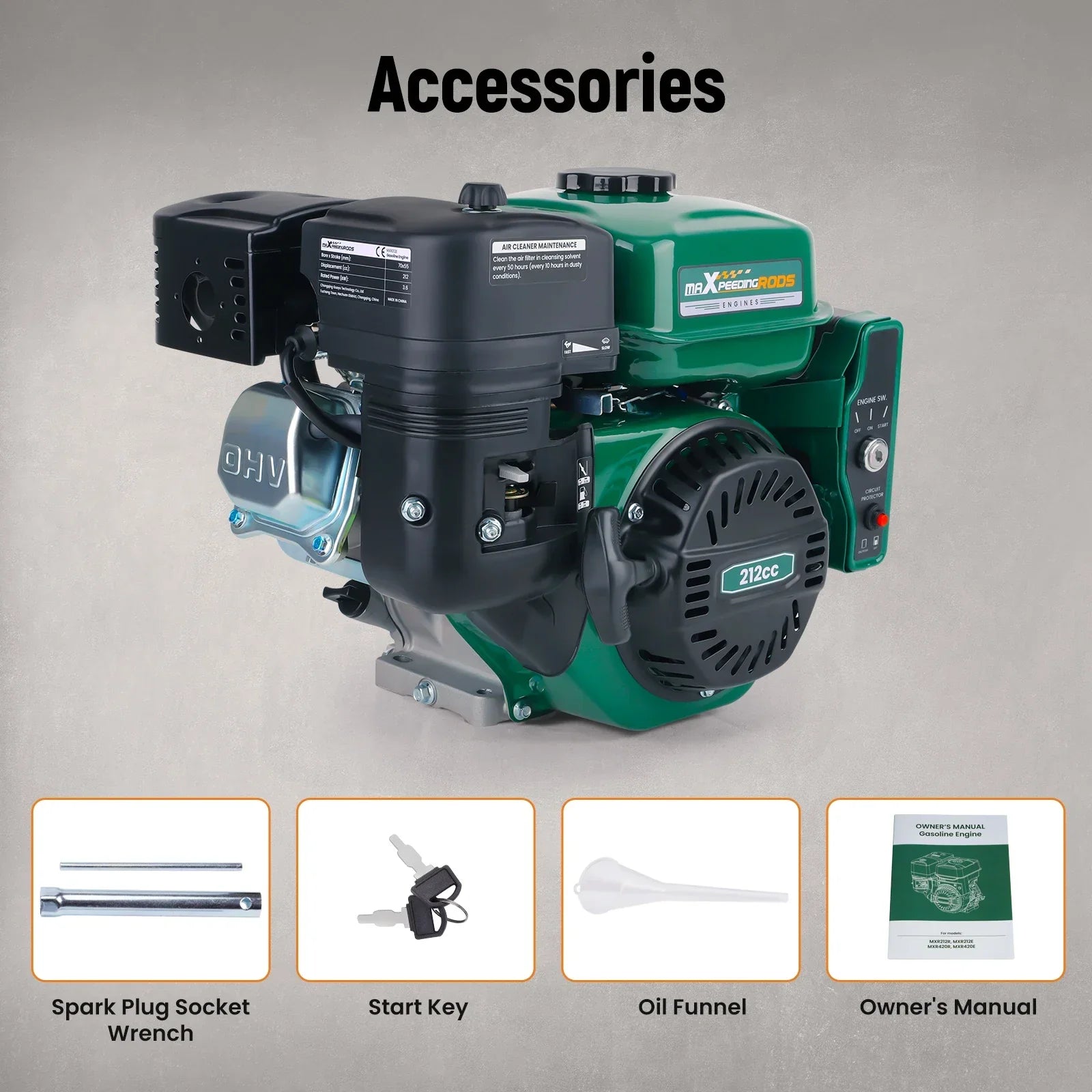

Package Contents:

---------------------------------------------------------------------------

Gasoline Engine ( 1 )

Spark Plug Socket Wrench (1)

Oil Funnel ( 1 )

Instruction Manual ( 1 )

Start Key ( 1 )

Notebook:

--------------------------------------------------------------------------

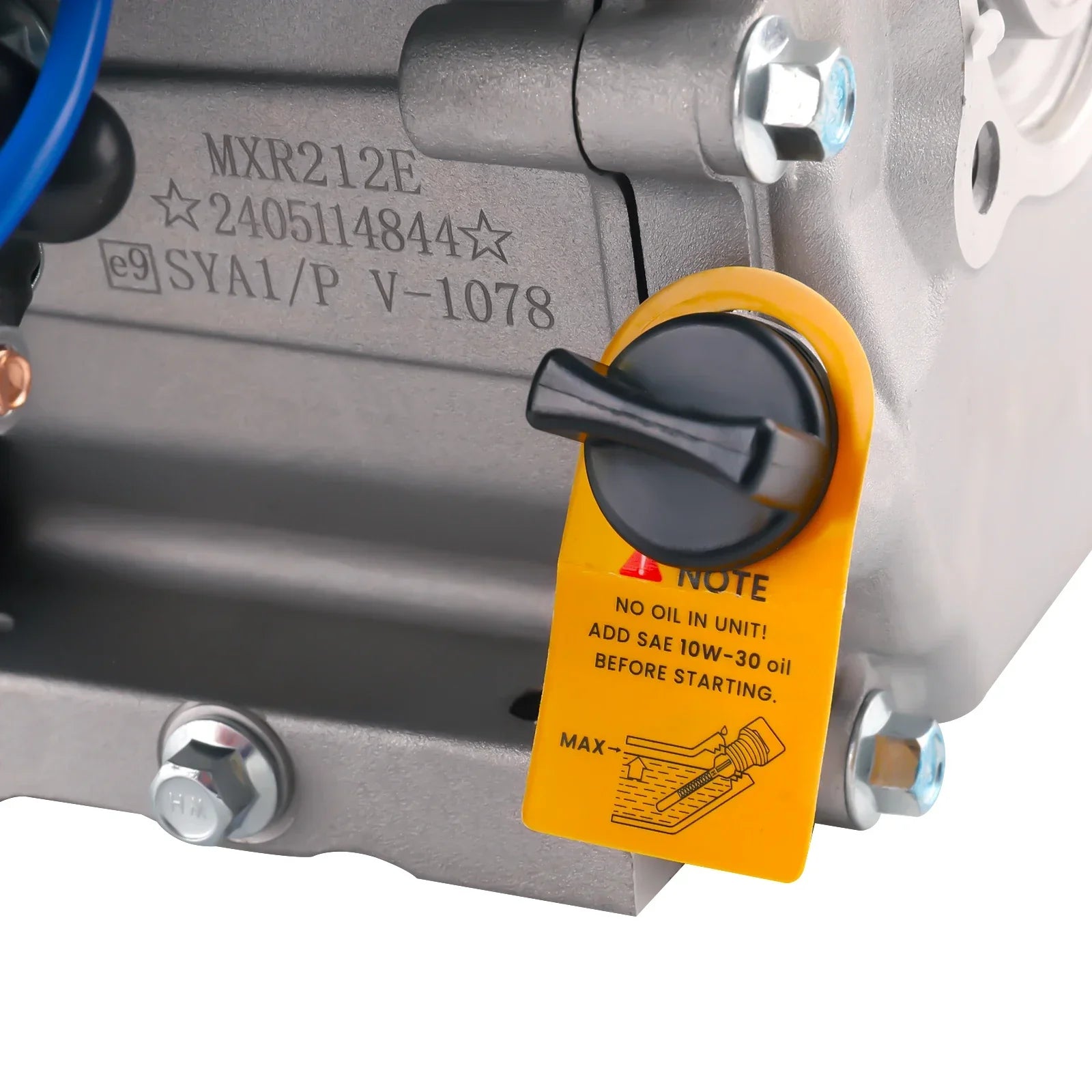

1. Do not pull the pull rope to start the machine without adding oil. Starting the engine without adding oil may cause permanent damage to the internal engine components.

2. All engines are tested at the factory for functionality and may have minimal oil residue or fuel odor, which is a normal phenomenon.

3. Installation manual is NOT included; professional installation is highly recommended.

4. Do not remove or modify any engine parts, otherwise the warranty will be void. (e.g. air cleaner, throttle assembly, muffler, etc.)

5. An engine's exhaust contains poisonous carbon monoxide that you can't see or smell. Inhaling carbon monoxide can KILL YOU WITHIN MINUTES. To avoid carbon monoxide poisoning, follow the manufacturer's instructions when operating an engine.
