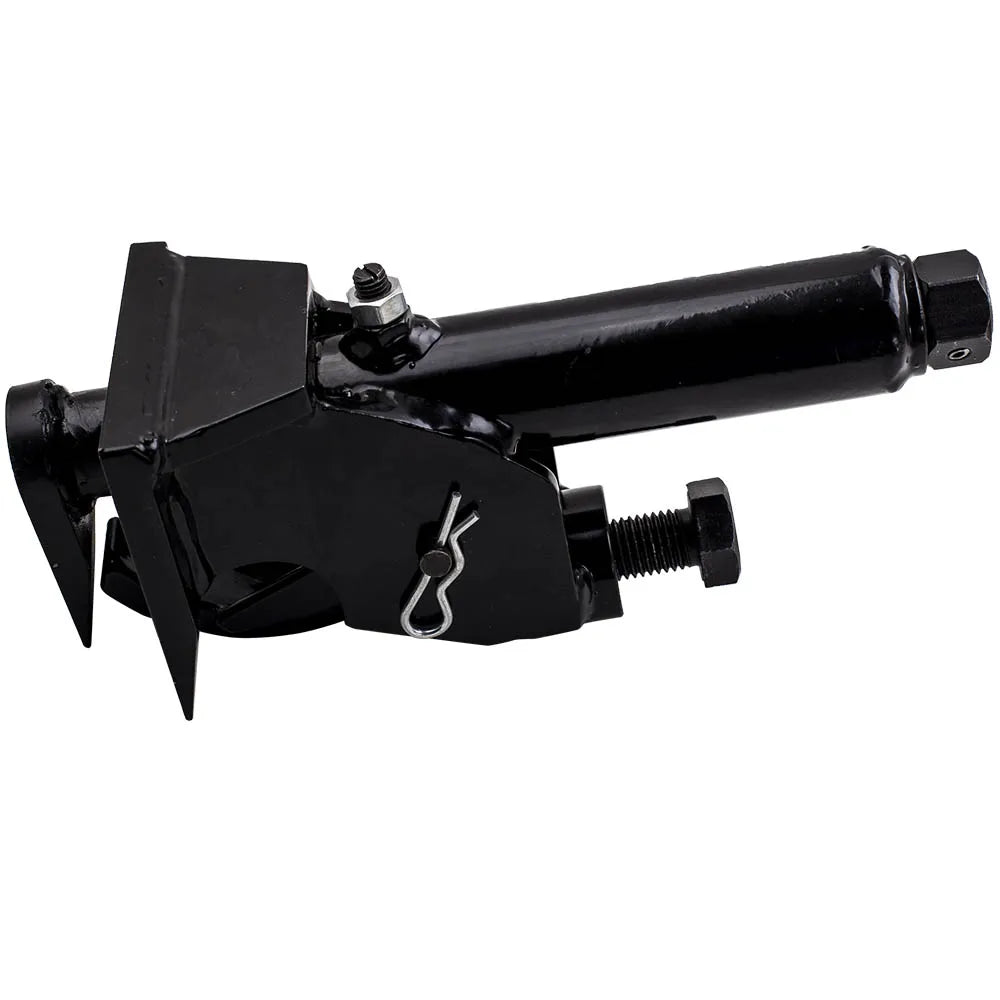

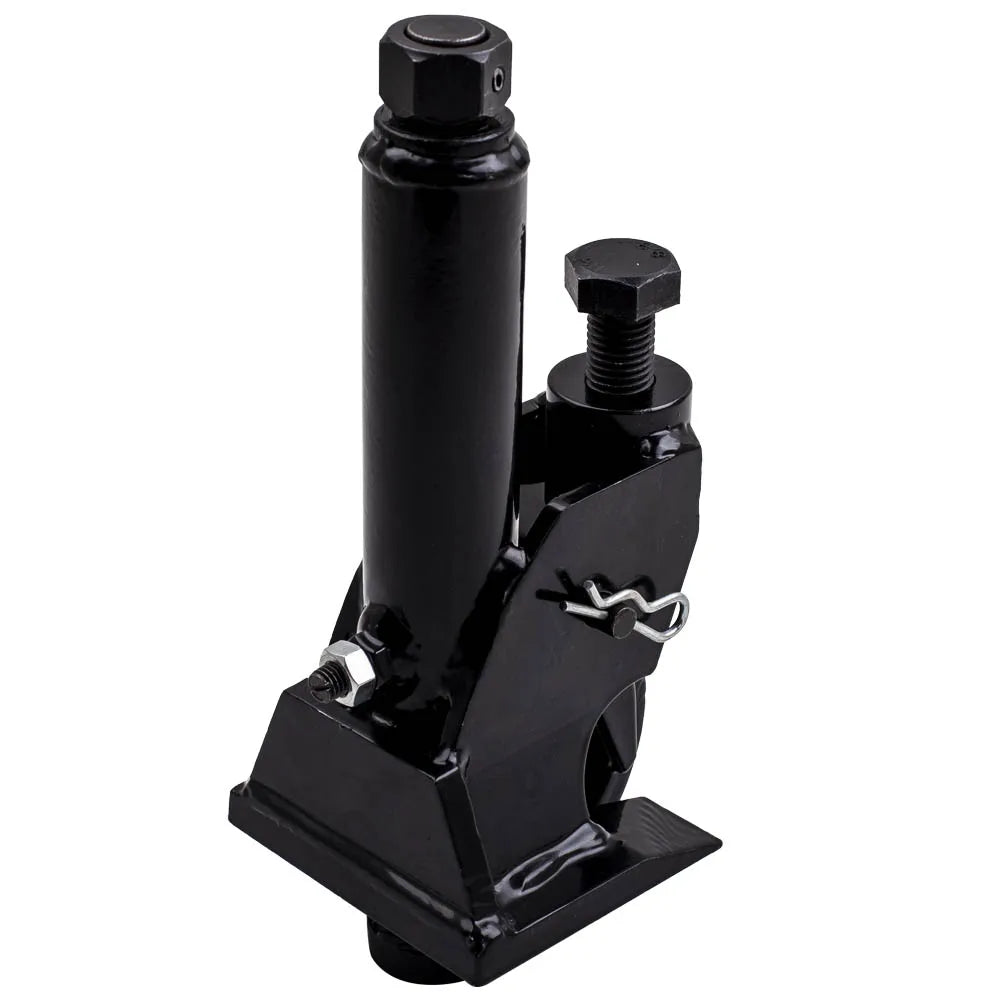

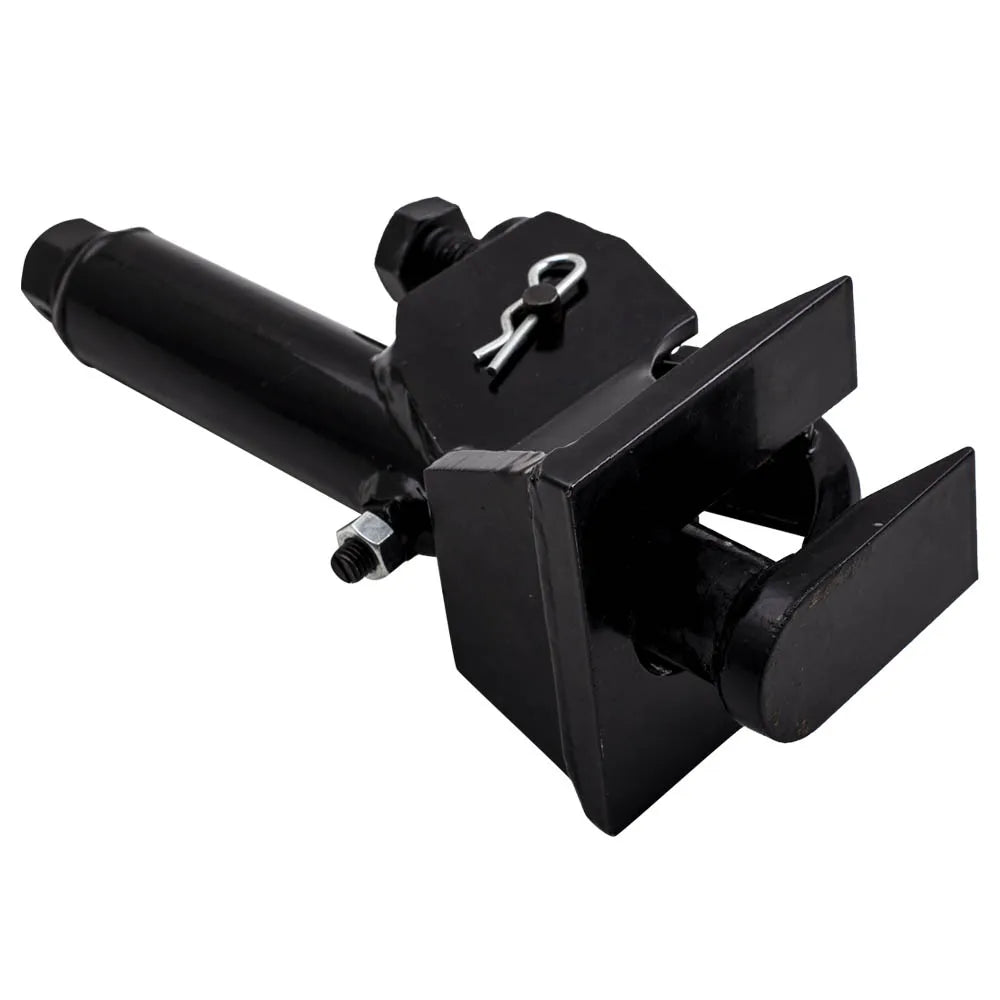

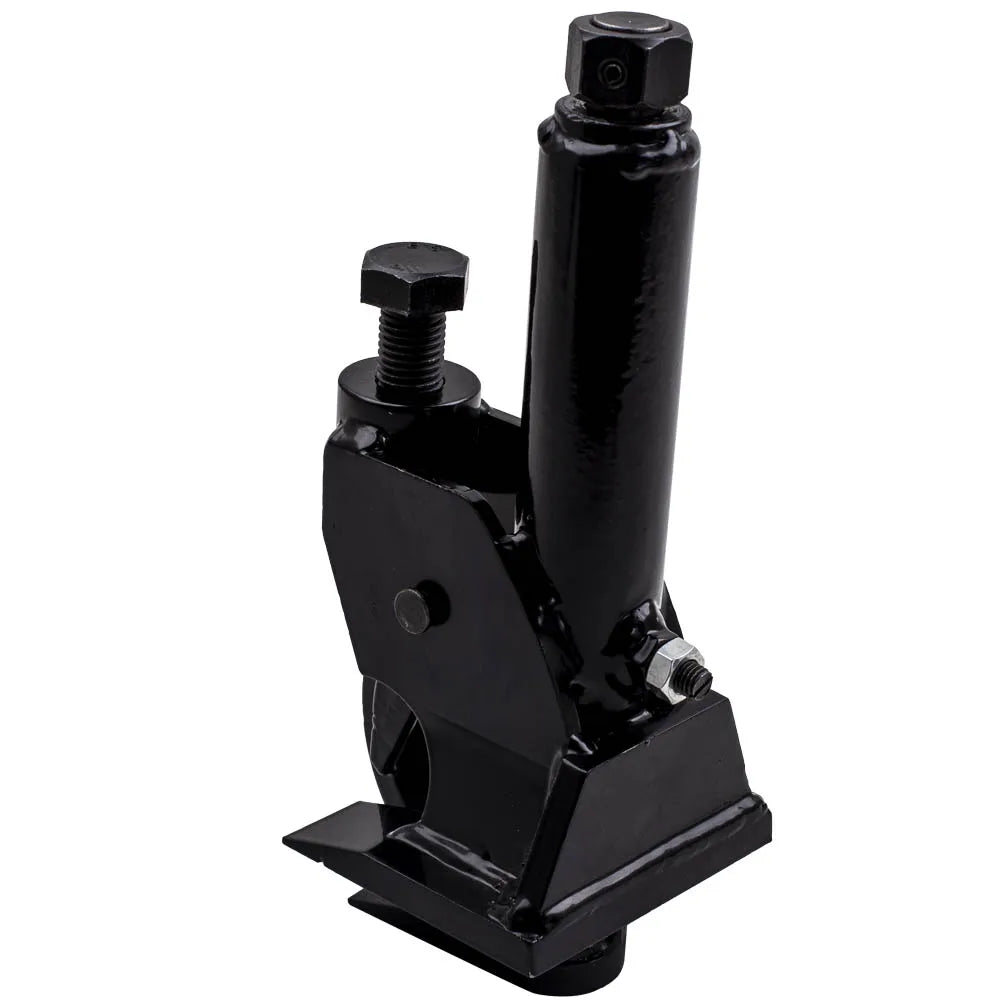

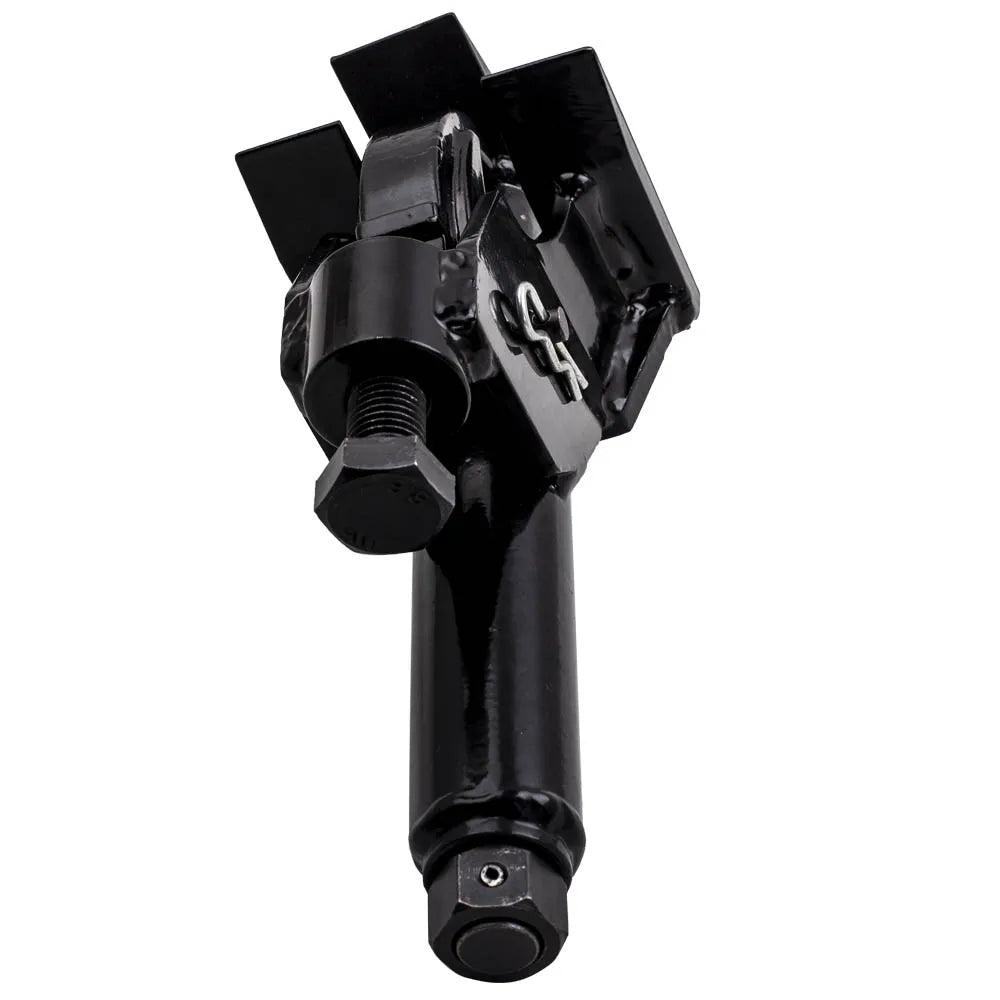

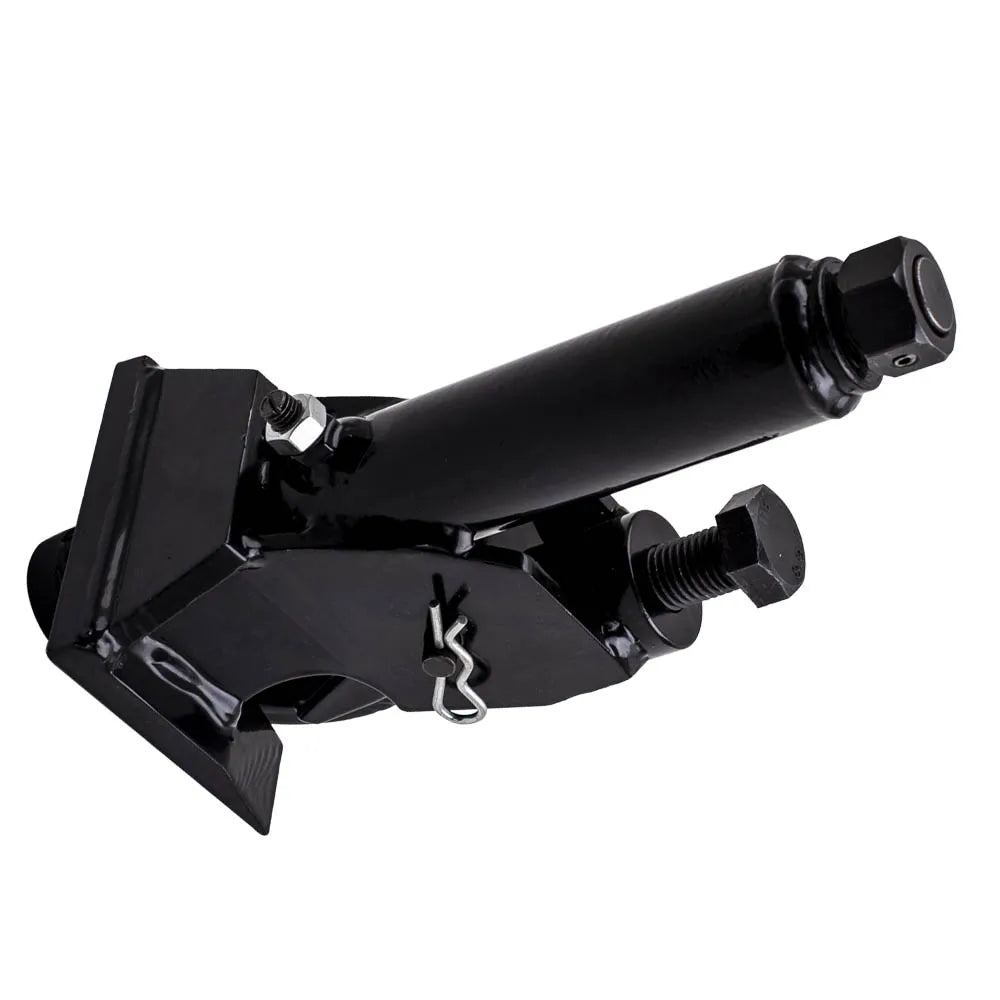

Manual Tire Bead Remover 70160
Handheld tire bead breaker designed for use on small ATV and lawn mower tires and agricultural tractor tires ranging from 38-42 inches in size and with a 14-ply construction. This design utilizes a pressure and lever action to separate the tire bead from the rim.
The impact wrench can be operated with an adjustable wrench, a flat wrench, a ratchet with a socket, or a pneumatic ratchet wrench. The source also indicates that it can be operated without removing the wheel. An impact wrench is not recommended as it can damage the tire bead.
Application
- Small ATV tires.
- Lawn mower tires.
- Agricultural tractor tires 38–42 inches, 96.5–107.5 cm, 14-ply version.
- The source also lists tires for golf carts, buses, trucks, and excavators, so be sure to confirm compatibility with your specific wheel before purchasing.
Technical data
| Type | Manual tire bead breaker |
|---|---|
| Material | Steel; source specifies #45 heat treated steel for tool components |
| Color | Black |
| Height | 249 mm/9.8 inch |
| Length | 110mm/4.3 inches |
| Width | 101 mm/4.0 inch |
| Tire size range | 38-42 inches/96.5-107.5 cm |
| Product weight | 5.40 kg |
| Package dimensions | 32 × 22 × 14 cm |
How to use
Place the bead lugs on the rim and the bead lug between the rim and tire bead. Tighten the rim clamp jaw with a hand wrench, then turn the nut clockwise until the bead separates from the rim. If necessary, repeat this process in 2-3 places on each side of the wheel. Do not overtighten the tool.
Numbers and markings
- Model designation: 70160.
- No confirmed OEM/OE number.
Helpful information before purchasing
This manual tire bead breaker is designed for small ATV and lawn mower tires, as well as agricultural tractor tires 38-42 inches, including 14-ply designs. Before ordering, compare the size range, rim design, and handling with your specific wheel. Product model number is 70160.
The most important information
- A hand tool for separating the tire bead from the rim.
- Range indicated in source: 38-42 inch/96.5-107.5 cm tires.
- Tool dimensions: 249 × 110 × 101 mm; weight: 5.40 kg.
- Can be used with an adjustable wrench, open-end wrench, ratchet with socket or pneumatic ratchet wrench.
- Impact wrench not recommended; wrench not included.
Contents of the set
1 x Manual Tire Bead Remover. Operating wrench not included.
Frequently asked questions
How do I check if a part fits?
Compare the 70160 model designation, 38-42 inch range, and tire type and construction with your application. For ATV, lawn mower, and other vehicle tires, confirm compatibility before ordering.
Is the product ready for assembly?
This is a handheld tire bead removal tool, not a permanently installed part of the vehicle. A suitable wrench is required for this operation, which is not included. Do not use an impact wrench.
Does the offer include a complete set?
The offer includes one manual tire bead breaker.An adjustable wrench, open-end wrench, ratchet, socket or air wrench are not listed as part of the kit.
