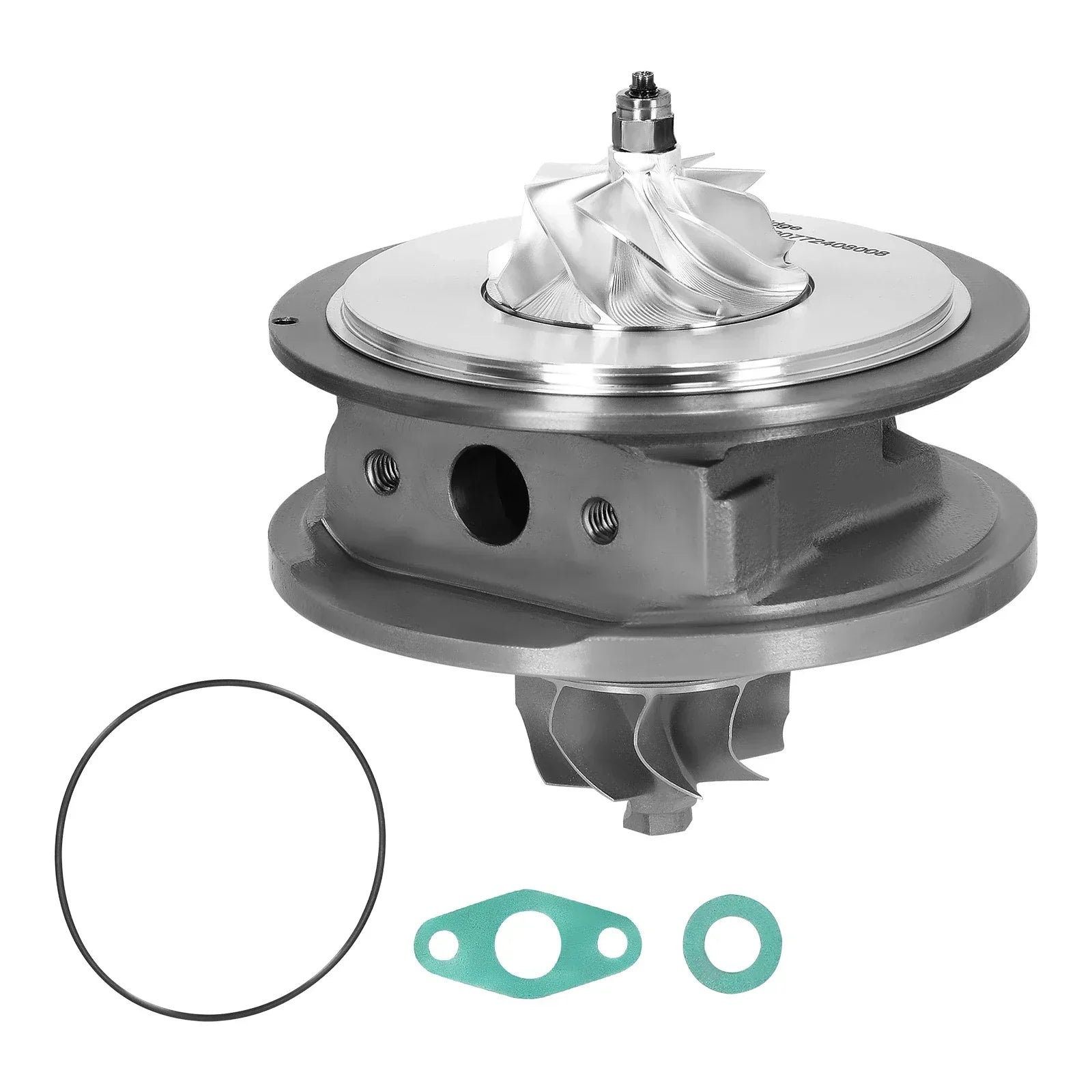

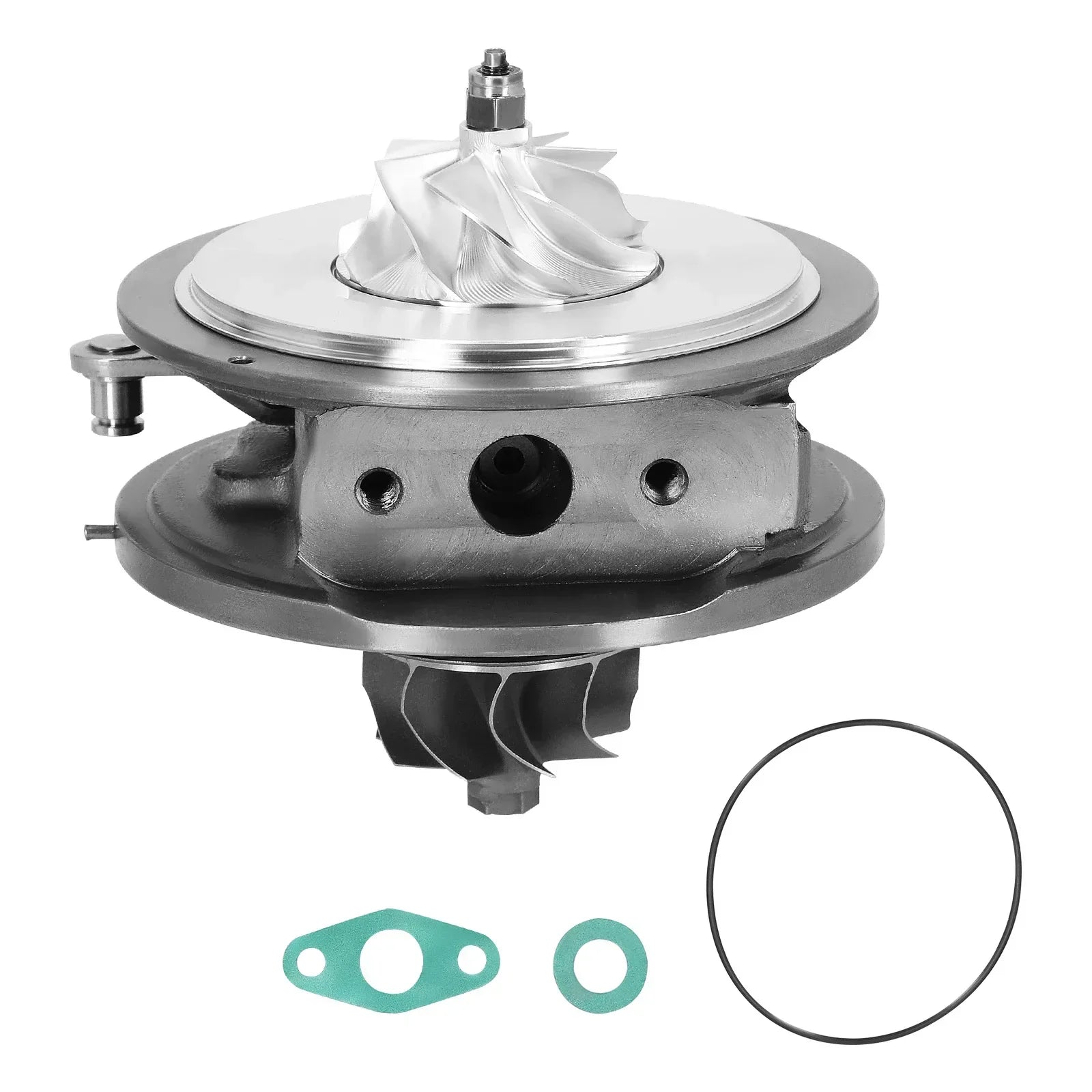

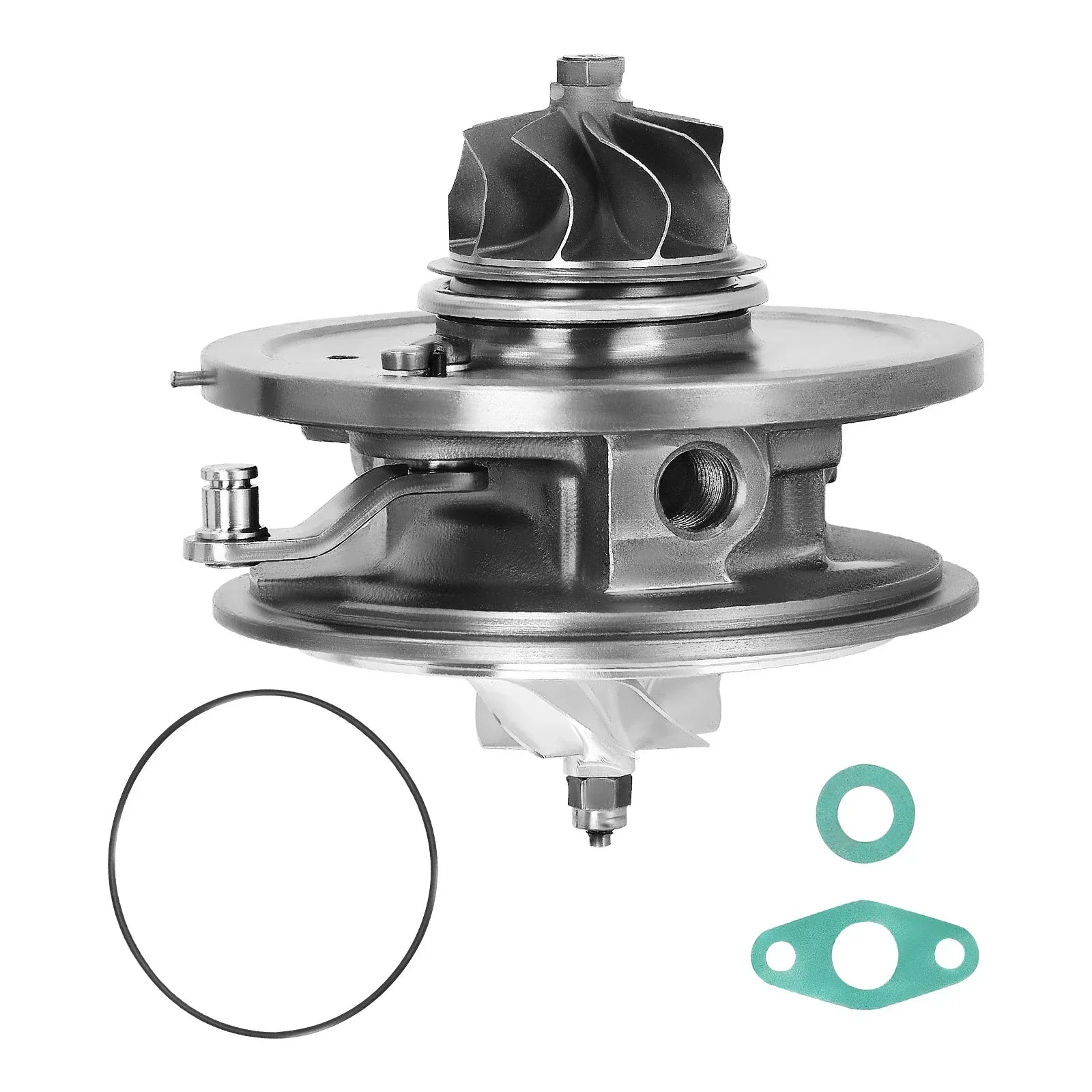

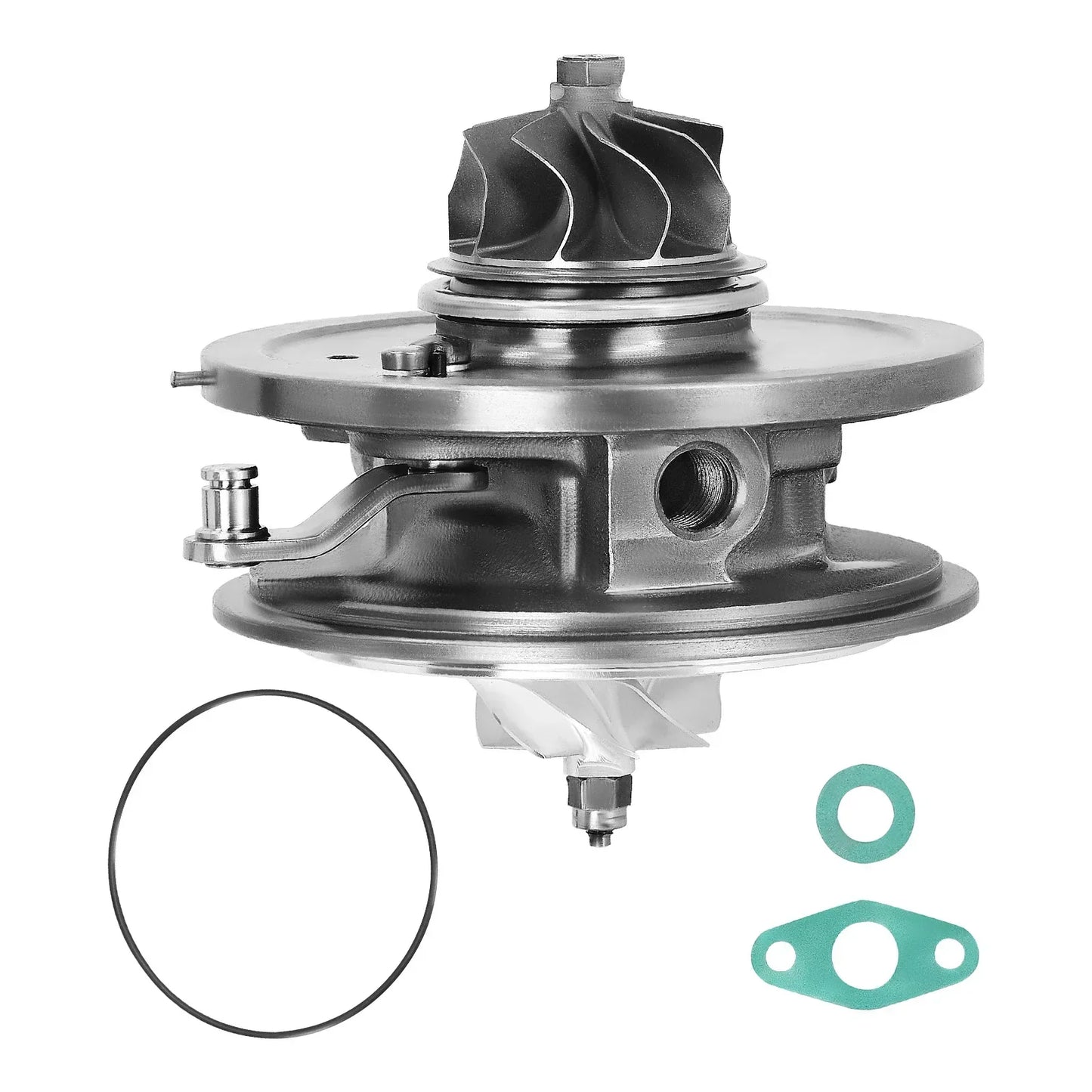

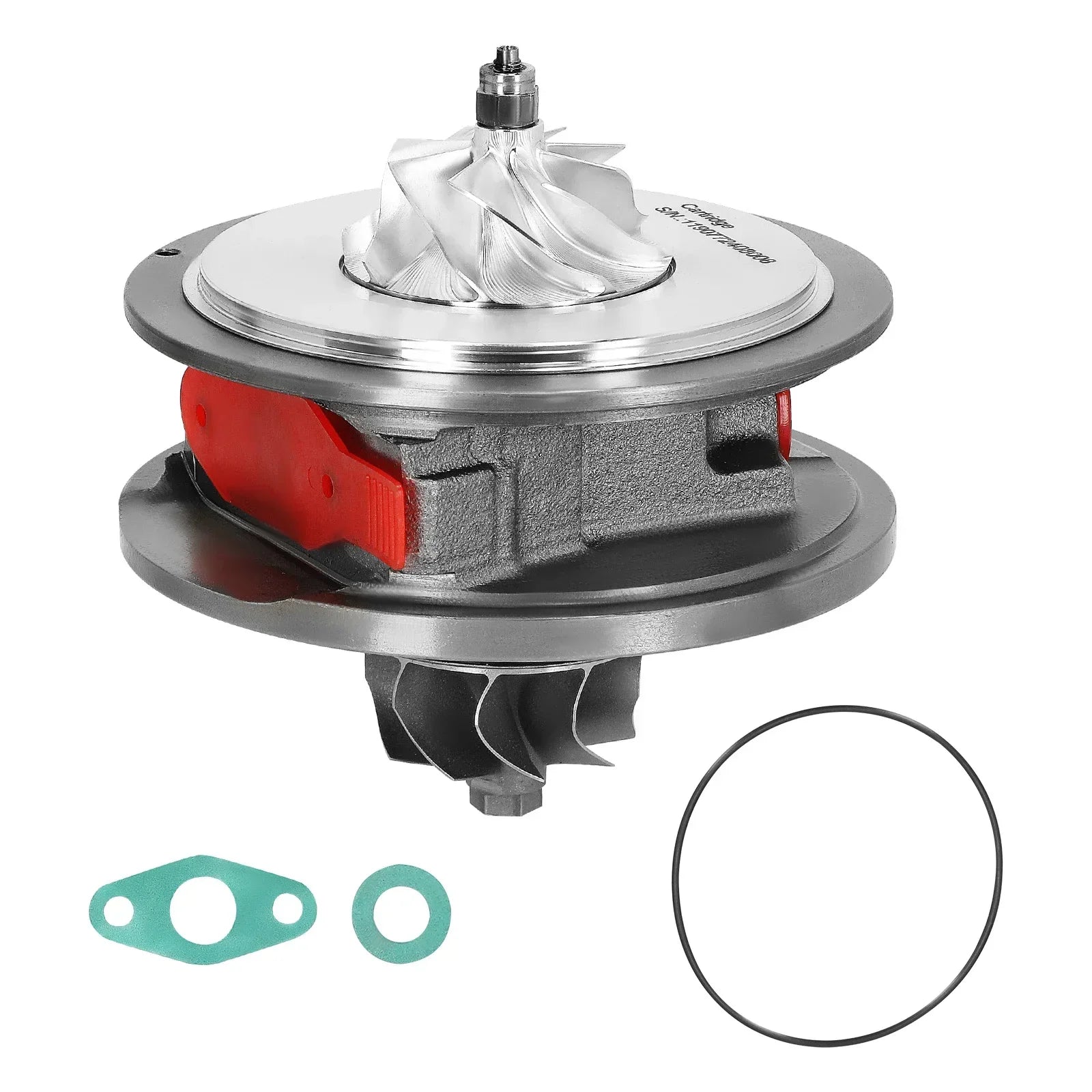

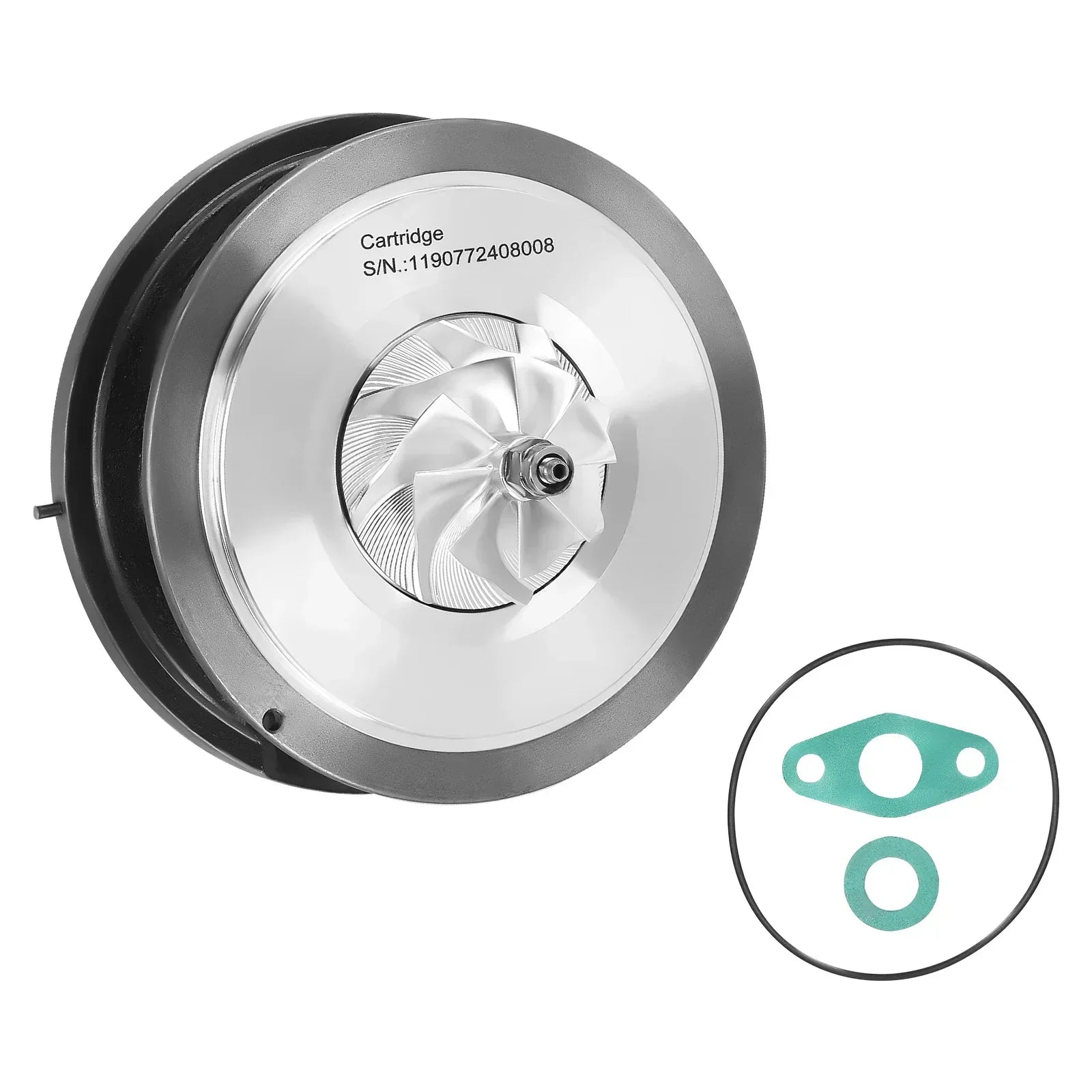

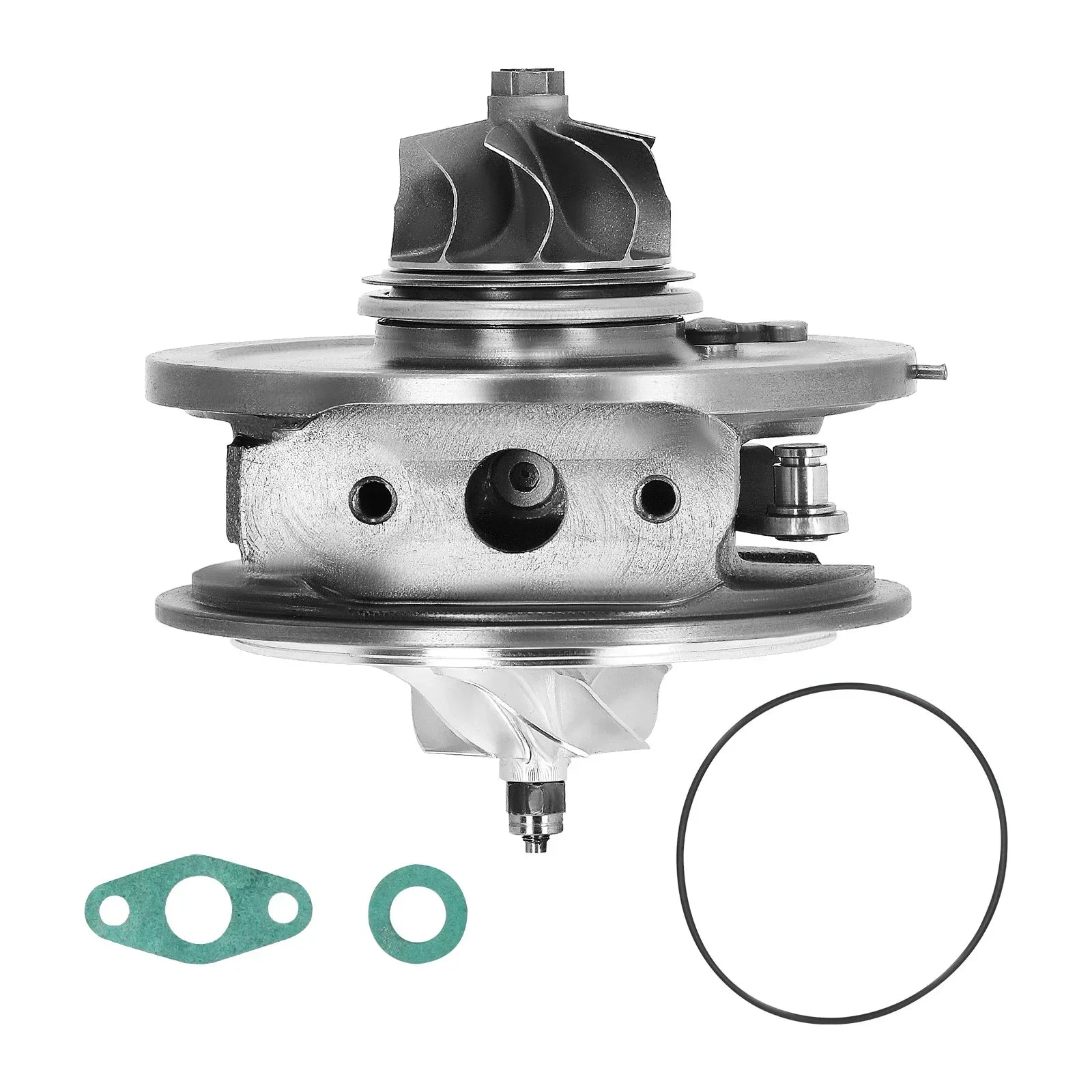

CHRA Turbocharger Insert for Ford Transit V363
Garrett GTD1444VZ CHRA turbocharger insert, suitable for selected versions of the Ford Transit V363 with the 2.0 EcoBlue 1995cc diesel engine. Available in 77kW (105hp), 96kW (130hp) and 125kW (170hp) applications, depending on the vehicle version.
Before purchasing, please compare the installed turbocharger part number with your vehicle's data. Compatibility data includes numbers GK2Q6K682BD and 838452.
Application
- Ford Transit V363 Kasten (FCD, FDD), 2.0 EcoBlue, 77 kW (105 HP), 1995 cm³, from 2017
- Ford Transit V363 Kasten (FCD, FDD), 2.0 EcoBlue, 96 kW (130 HP), 1995 cm³, from 2017
- Ford Transit V363 Kasten (FCD, FDD), 2.0 EcoBlue, 125 kW (170 HP), 1995 cm³, from 2017
- Ford Transit V363 Pritsche/Fahrgestell (FED, FFD), 2.0 EcoBlue, 77 kW (105 HP), 1995 cm³, from 2016
- Ford Transit V363 Pritsche/Fahrgestell (FED, FFD), 2.0 EcoBlue, 96 kW (130 HP), 1995 cm³, from 2016
- Ford Transit V363 Pritsche/Fahrgestell (FED, FFD), 2.0 EcoBlue, 125 kW (170 HP), 1995 cm³, from 2016
Technical data
- Part type: CHRA turbocharger insert
- Turbocharger model: GTD1444VZ
- Fuel type: diesel
- Cooling: water
- Compression wheel: Billet Compressor Wheel
- Product dimensions: 17 × 14.5 × 14.3 cm
- Product weight: 1500 g
OEM/OE numbers
838417-5002S, 838417, 838417-0002, 838417-2
Supporting numbers
GK2Q6K682BD, 838452
Before installing a new cartridge, it is necessary to analyze and eliminate the cause of the turbocharger failure, such as insufficient lubrication, the presence of foreign objects in the intake system, or faulty crankcase ventilation. The source recommends professional installation.
Helpful information before purchasing
This offer applies to a CHRA turbocharger insert for the Ford Transit V363 2.0 EcoBlue. Please confirm your selection based on the original turbocharger part number, as this kit is suitable for several power outputs and body variants.
The most important information
- The insert is designed for the GTD1444VZ turbocharger.
- The application includes 2.0 EcoBlue Diesel engines with power outputs of 77, 96 and 125 kW.
- Confirmed OEM/OE numbers: 838417-5002S, 838417, 838417-0002, 838417-2.
- The product dimensions are 17 × 14.5 × 14.3 cm and the weight is 1500 g.
Contents of the set
- 1 × CHRA turbocharger cartridge
- 2 × oil seal
- 1 × O-ring
Frequently asked questions
How do I check if a part fits?
Please compare the original turbocharger part number with part numbers 838417-5002S, 838417, 838417-0002 or 838417-2 and verify the Ford Transit V363 model, 2.0 EcoBlue engine, power output and body variant. Part numbers GK2Q6K682BD and 838452 are for reference only.
Is the product ready for assembly?
The source recommends professional installation. Before installation, it's important to determine and correct the cause of the turbocharger failure, particularly lubrication problems, foreign bodies in the intake manifold, or faulty crankcase ventilation.
Does the offer include a complete set?
The kit includes 1 CHRA cartridge, 2 oil seals and 1 O-ring.
