Hydraulic Pressure Test Kit
A universal hydraulic pressure test kit designed for testing systems on excavators, hydraulic presses, cranes, compressors, and other large hydraulic equipment. Suitable for use in construction, shipping, mining, metallurgy, and service.
The kit includes three pressure gauges with different measurement ranges, three test leads, and six test connectors with different threads. The components are stored in a carrying case.
Measuring ranges
| Range | Conversion |
|---|---|
| 0–3500 PSI | 0–250 bar |
| 0–5800 PSI | 0–400 bar |
| 0-8600 PSI | 0–600 bar |
Test connections and cables
- G1/4 – according to source data for Komast/Kobelco
- G1/8 – according to source data for Kawasaki/Caterpillar
- G3/8 – according to source data for Daewoo/Hyundai/Kato
- M10×1 – according to source data for Komast 5/6
- M10×1.25 – according to source data for Komast 7/8
- M14×1.5 – according to source data for Hitachi
- Length of each test lead: 5.2 ft/1.6 m
Technical information
- Type: Hydraulic Pressure Test Kit
- Range designation: 0–8600 PSI
- The hoses and pressure gauges are equipped with covers to protect the pressure gauge threads.
- Confirmed OEM/OE numbers: none
Helpful information before purchasing
This kit is designed for measuring pressure in the hydraulic systems of excavators and other large hydraulic equipment. Before purchasing, compare the required pressure range and connection thread with the system being tested. The source data indicates the use of these connections for selected models and brands, including Komatsu, Kobelco, Kawasaki, Caterpillar, Daewoo, Hyundai, Kato, and Hitachi.
The most important information
- Three pressure gauges: 0-3500 PSI, 0-5800 PSI and 0-8600 PSI.
- The ranges correspond to 0–250 bar, 0–400 bar and 0–600 bar, respectively.
- The set includes six test connections with threads G1/4, G1/8, G3/8, M10×1, M10×1.25 and M14×1.5.
- The three test leads are each 1.6 m long.
- There are no confirmed OEM/OE numbers for this product.

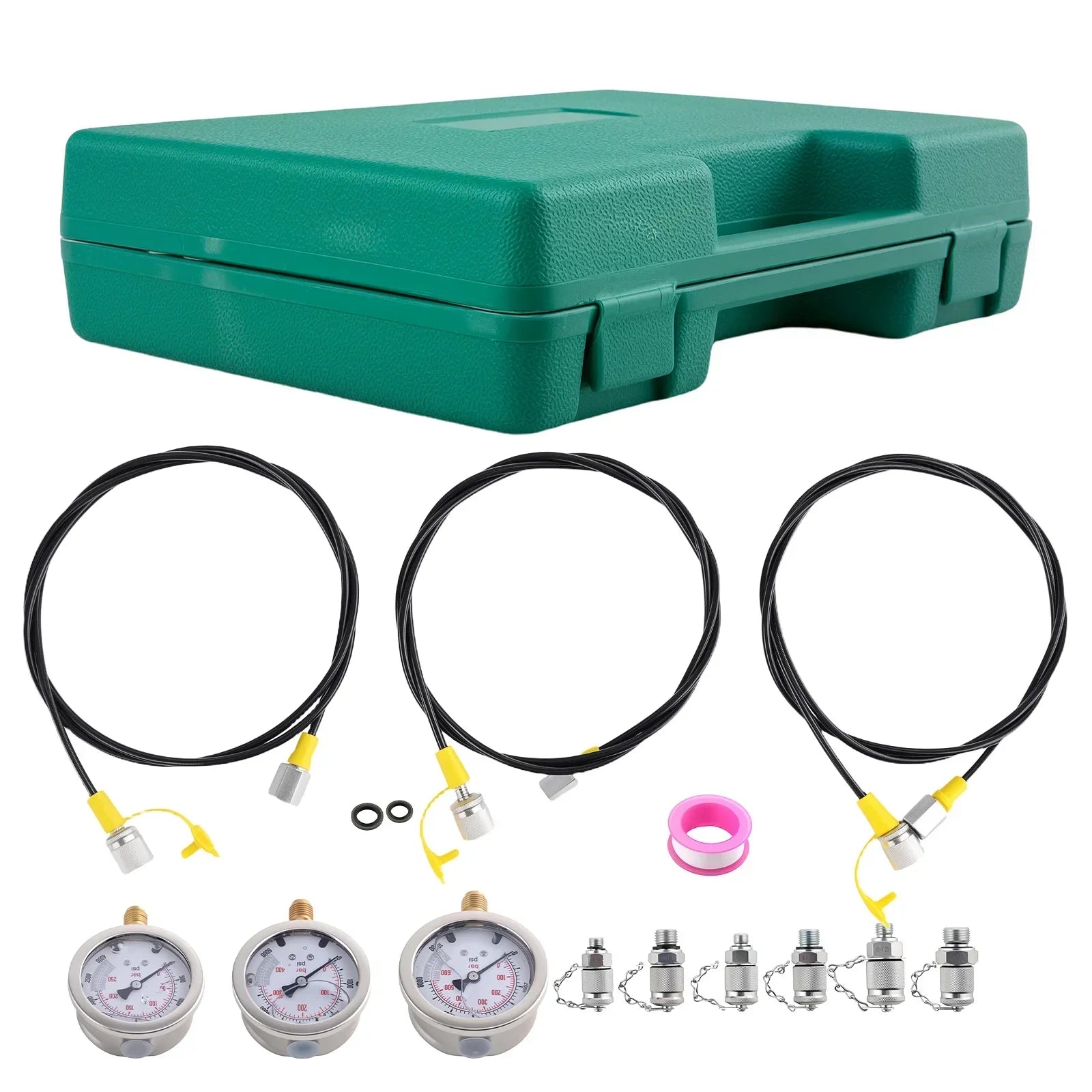

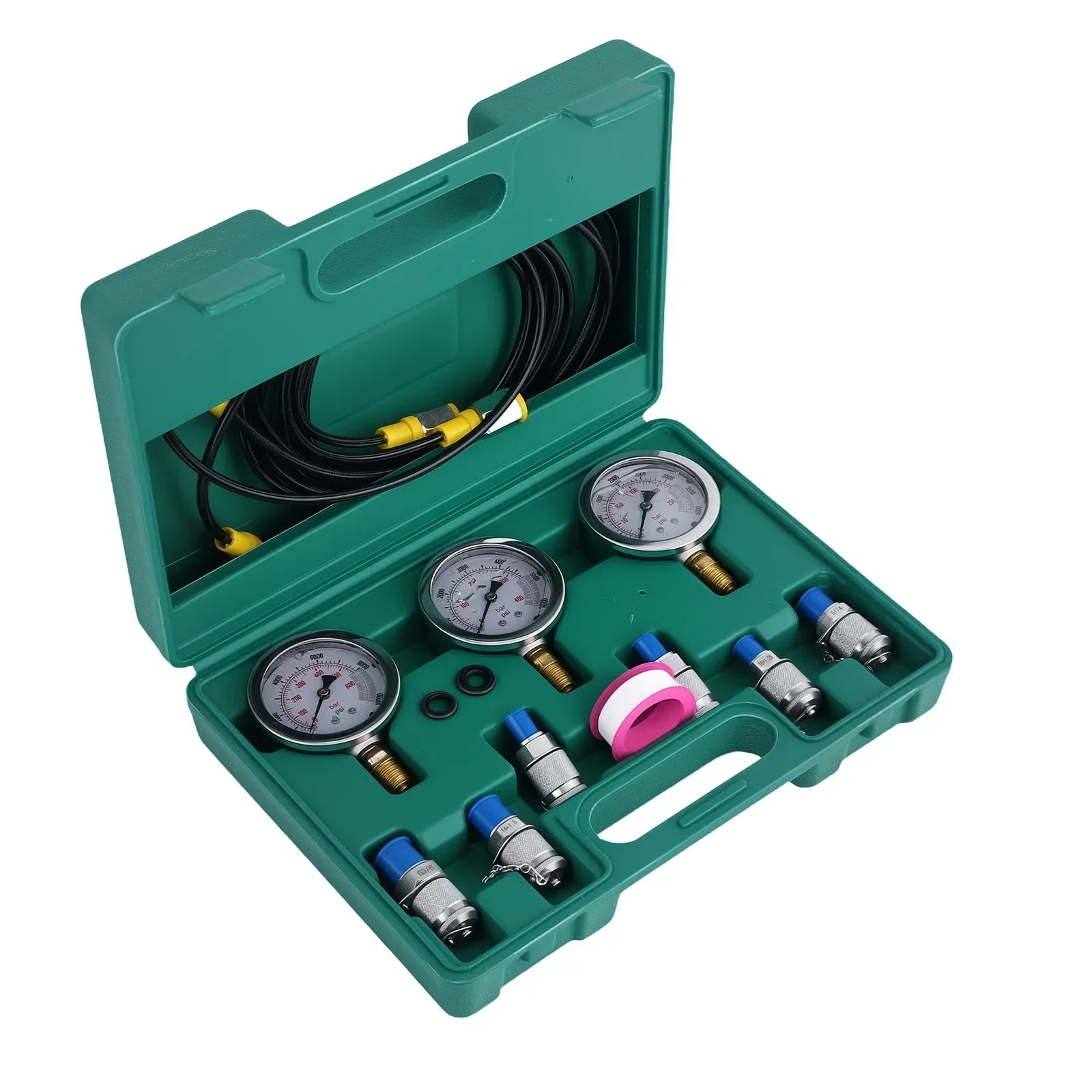

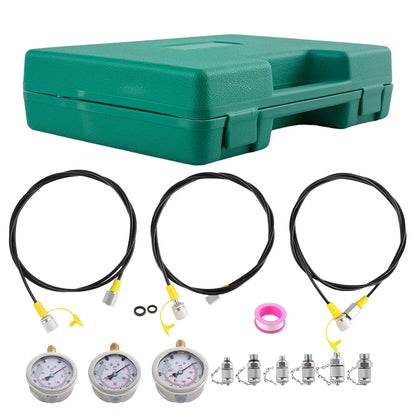

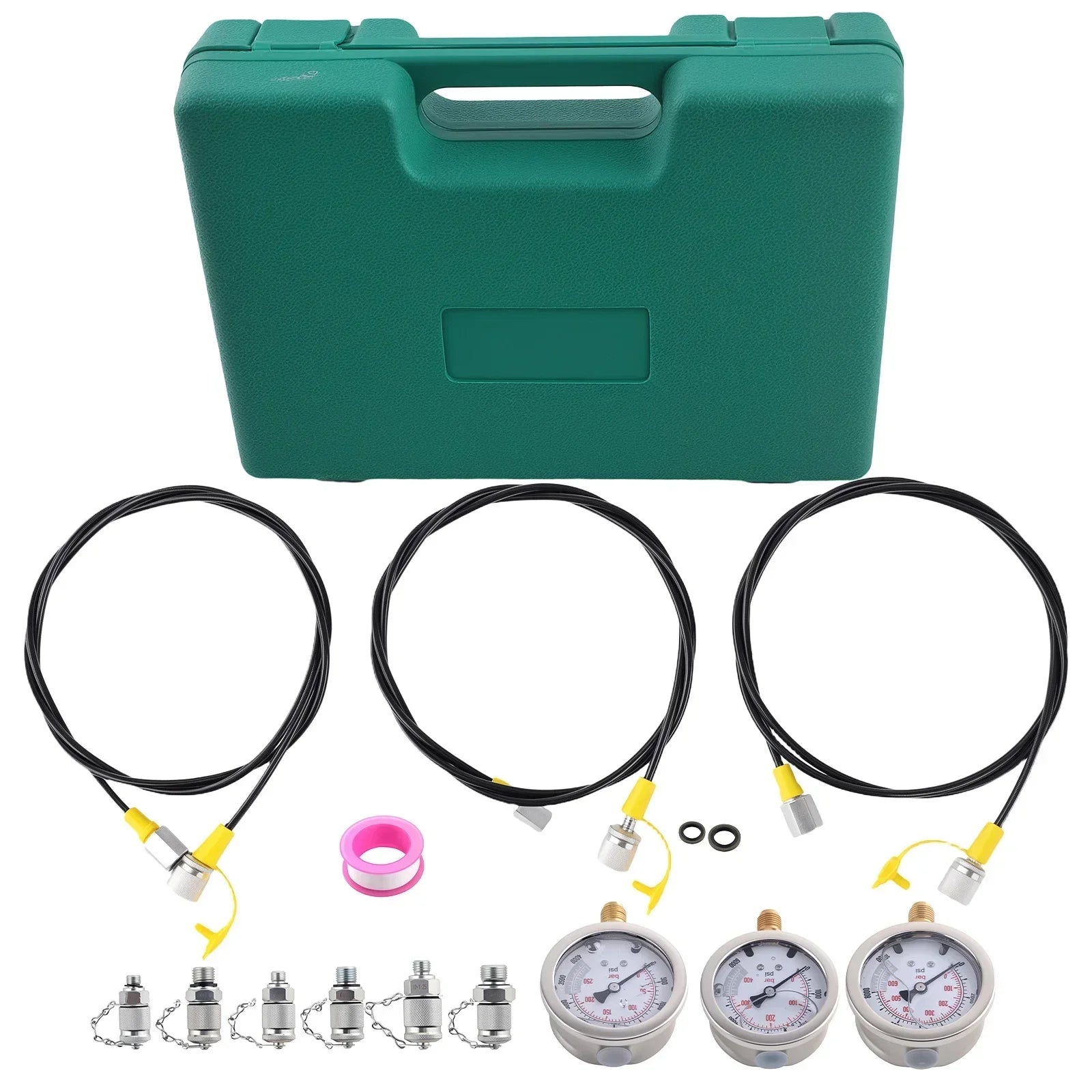

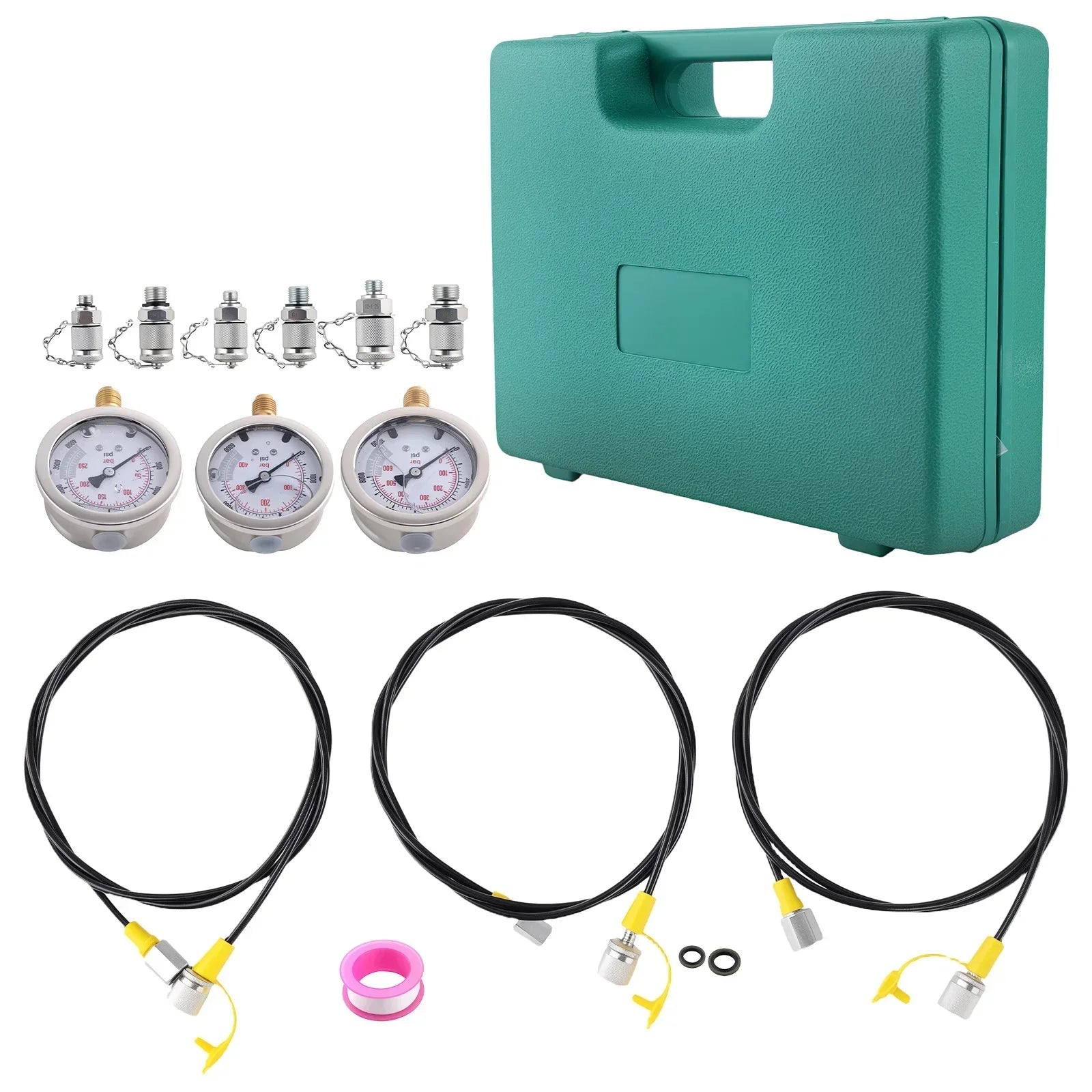

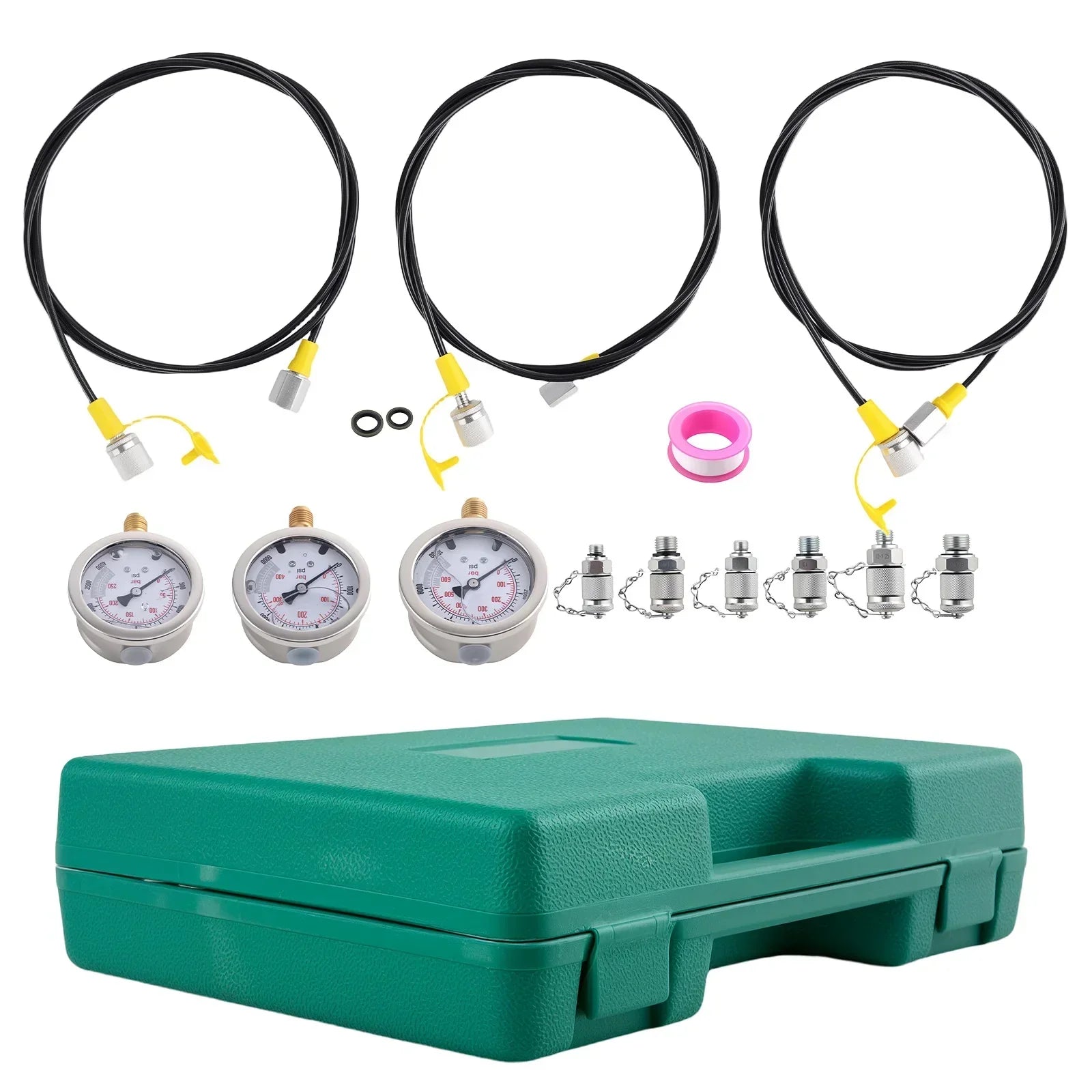

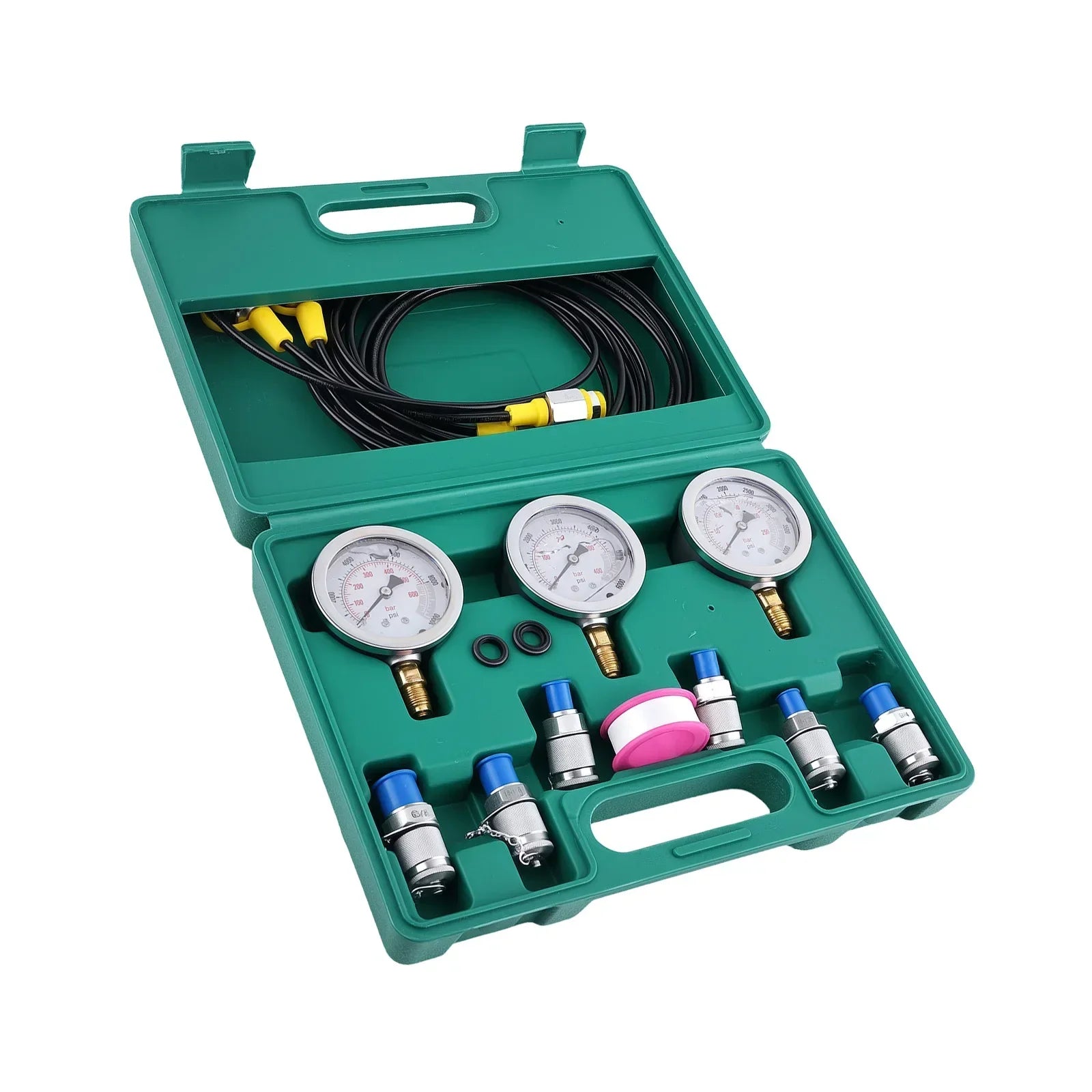

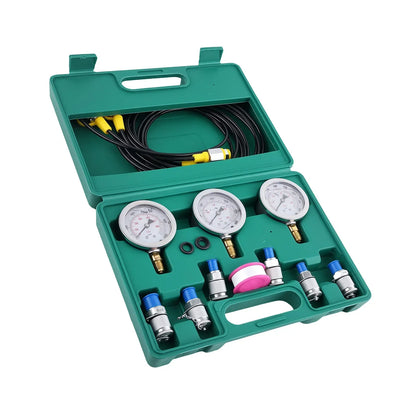

Contents of the set
- 3 pressure gauges with thread protection covers
- 6 test connections
- 3 test leads
- 1 spacer with an internal diameter of 10 mm
- 1 spacer with an internal diameter of 12 mm
- 1 tape
- 1 carrying case
Frequently asked questions
How do I check if a part fits?
Compare the pressure range and connection thread with your hydraulic system. The kit includes G1/4, G1/8, G3/8, M10×1, M10×1.25, and M14×1.5 connections. It's worth checking the connection compatibility for your specific machine before purchasing.
Is the product ready for assembly?
This is a measuring kit for connection to the hydraulic system being tested. The application and connection method should be adapted to the specific device and the appropriate connector.
Does the offer include a complete set?
The offer includes the set detailed in the "Set Contents" section: three pressure gauges, six connectors, three hoses, two spacers, tape and a carrying case.
