Note:

Volute air inlet: 3 bolts

This turbo is Oil cooling, Please double check the cooling type before purchasing.

For Nissan X-Trail 2.2L 136hp only

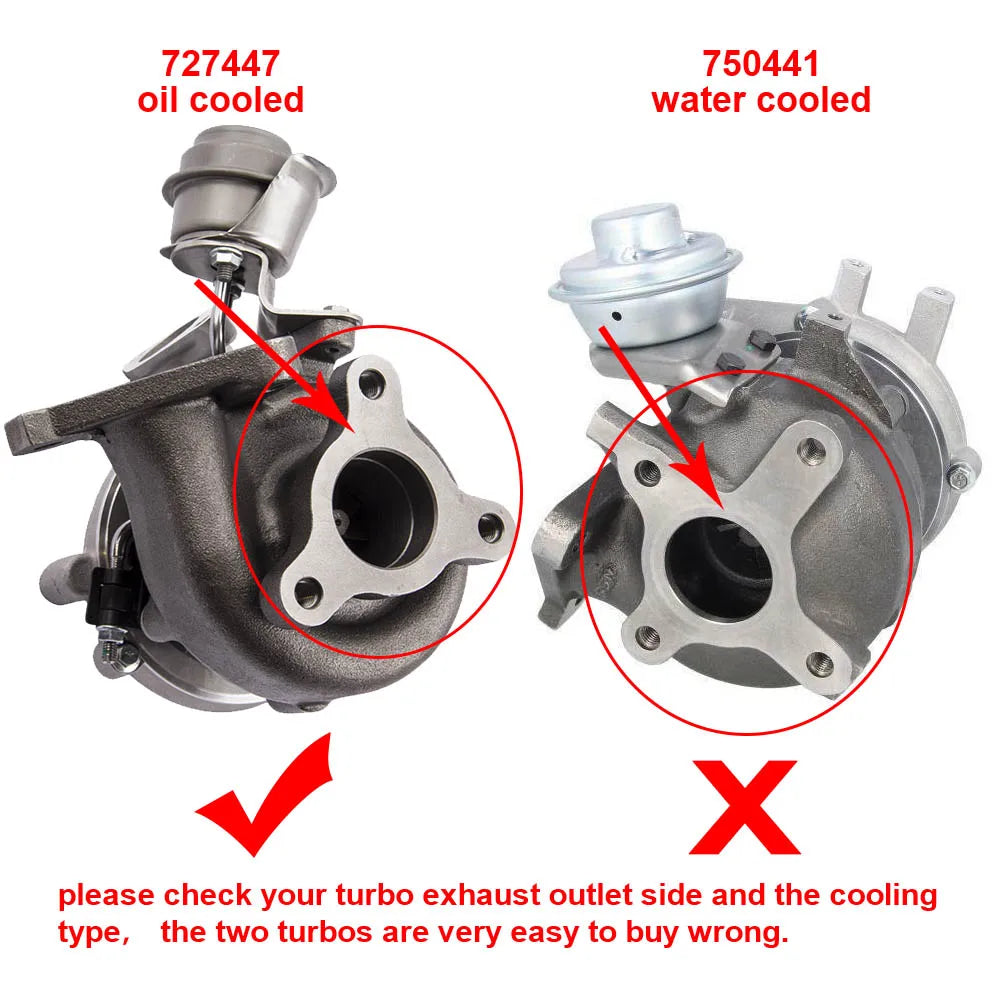

If your car model is for Nissan X-Trail 2.2L 134hp, please compare with 750441 (different cooling type and different exhaust outlet flange)

Application

For Nissan Almera Di 2.2LD YD22ED/YD1 2003

for Nissan Primera DCI 2.2LD YD22ED/YD22DDTI 2003-2005

for Nissan X-Trail DI 2.2LD YD1/YD22DDTi 2002-

for Nissan Almera Tino SE DCI 2.2LD YD22DDTI 2003-2005

OEM Number or Part Number

725864,727477，

725864-0001, 725864-0002, 725864-5001S, 725864-5002S,

727477-0002, 727477-0005, 727477-0006, 727477-0007, 727477-0008, 727477-9006, 727477-5006,

727477-5002S, 727477-5005S, 727477-9006S，727477-5006S, 727477-5007S, 727477-5008S,

14411AU600, 14411AW400, 14411AW40A, 14411-AU600, 14411-AW400, 14411-AW40A, 14411AW400EP, 14411AW40AEP, 14411AW40AEX,

14411-AW400EP, 14411-AW40AEP, 14411-AW40AEX

Product Material

1. Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

3. Compressor housing：ZL104 aluminum with lightweight

4. compressor wheel/blades：Cast aluminum with good gas tightness and corrosion

resistance

Product Performance

1. OEM-quality and size with little modification

2. Rich Experience In Turbo Production And Own Factory

3. Quality Assurance

4. High Performance Rotor

5. High-Speed ​​Oil Seal Ring

6.Strict Quality Inspection

7. Precision Clearance

8. High-speed Accessories

Specification

Turbo Model：GT1849V、GTA1849V,

Cooling Type：Oil Cooled

Bearing Type: Journal Bearing

Hosepower: Up to 125HP

Turbine Inducer Diameter: 44

Turbine Exducer Diameter: 39.85

Turbine Trim: 82.0

Compressor Inducer Diameter: 36.2

Compressor Exducer Diameter: 48.9

Compressor Trim: 54.8

Thrust bearing: 360 Degrees

Condition: Brand New

Warrants: 2 years warranty for any manufacturing defect

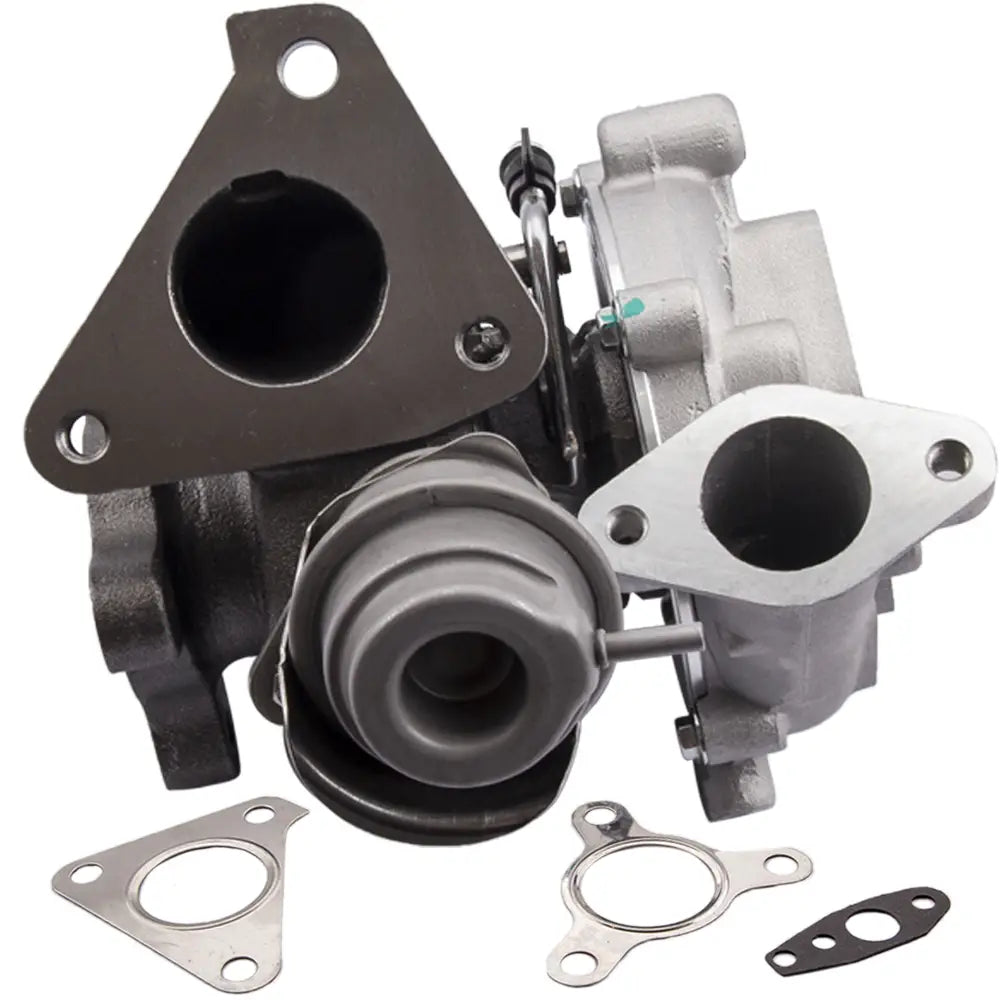

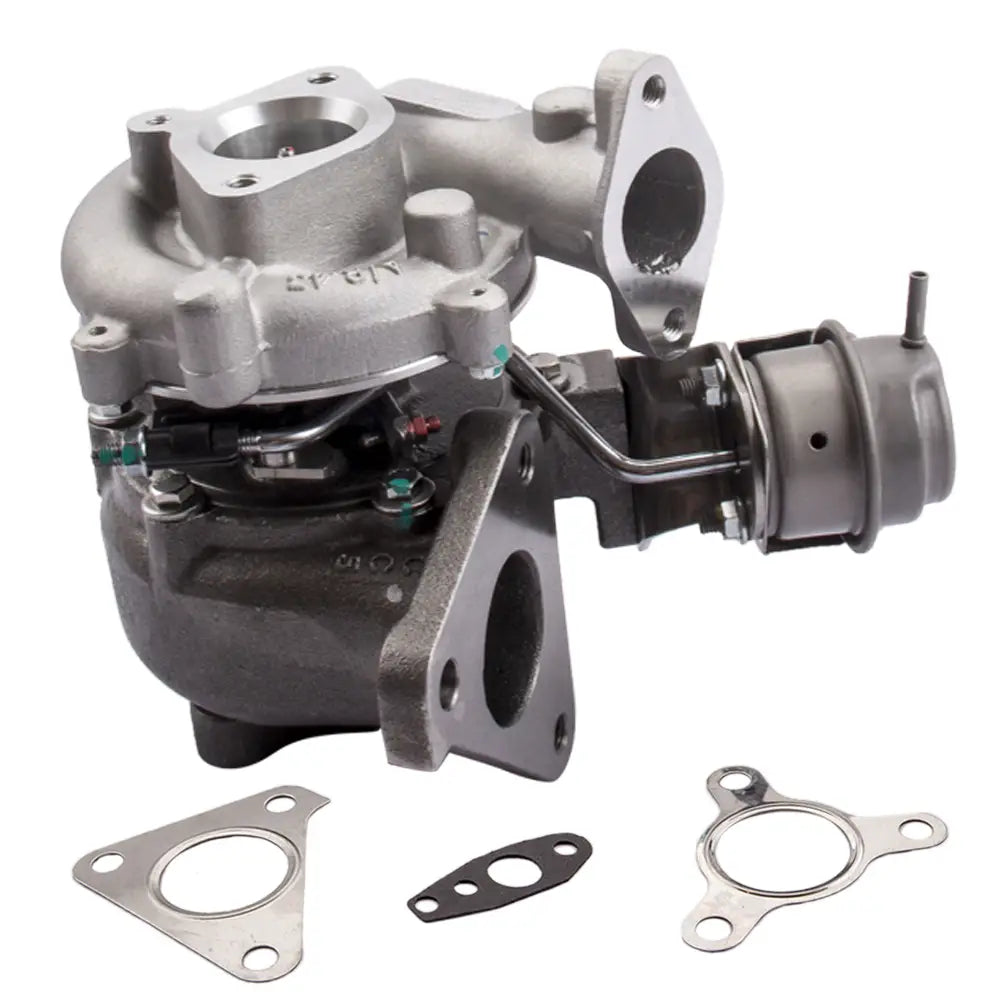

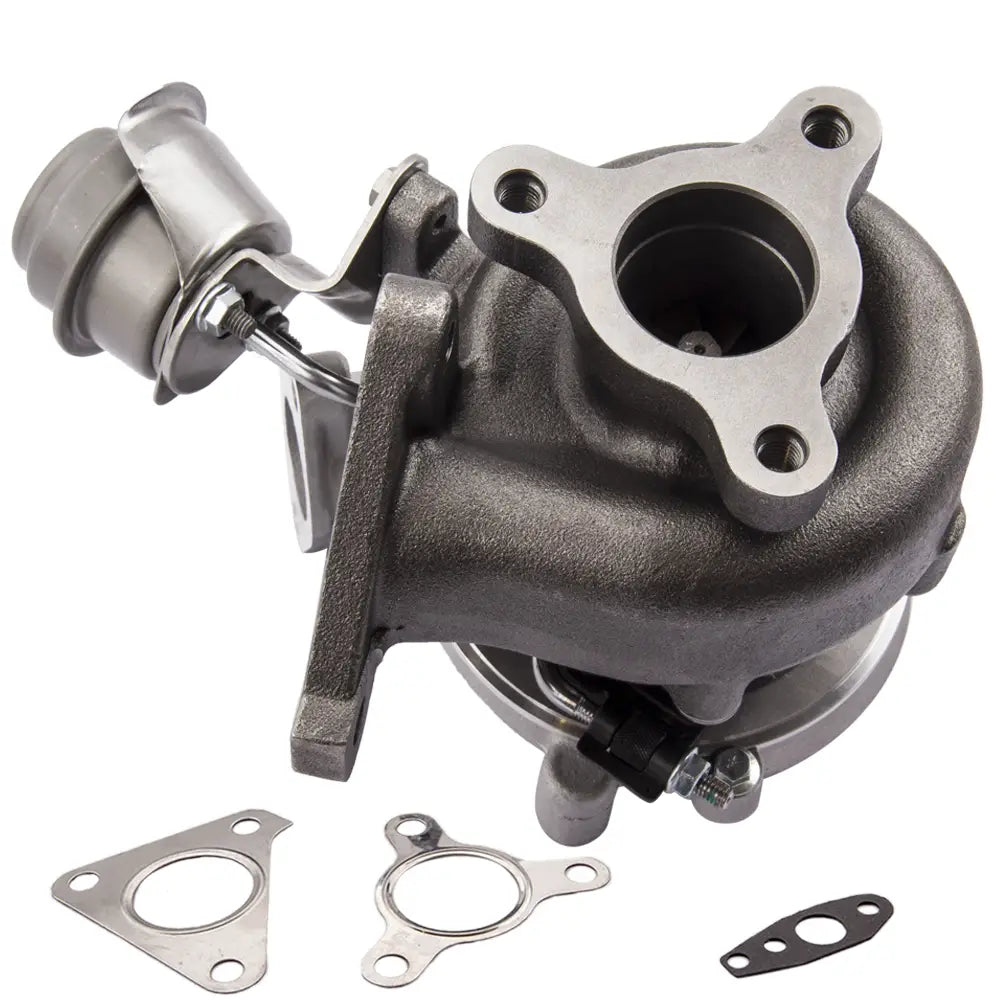

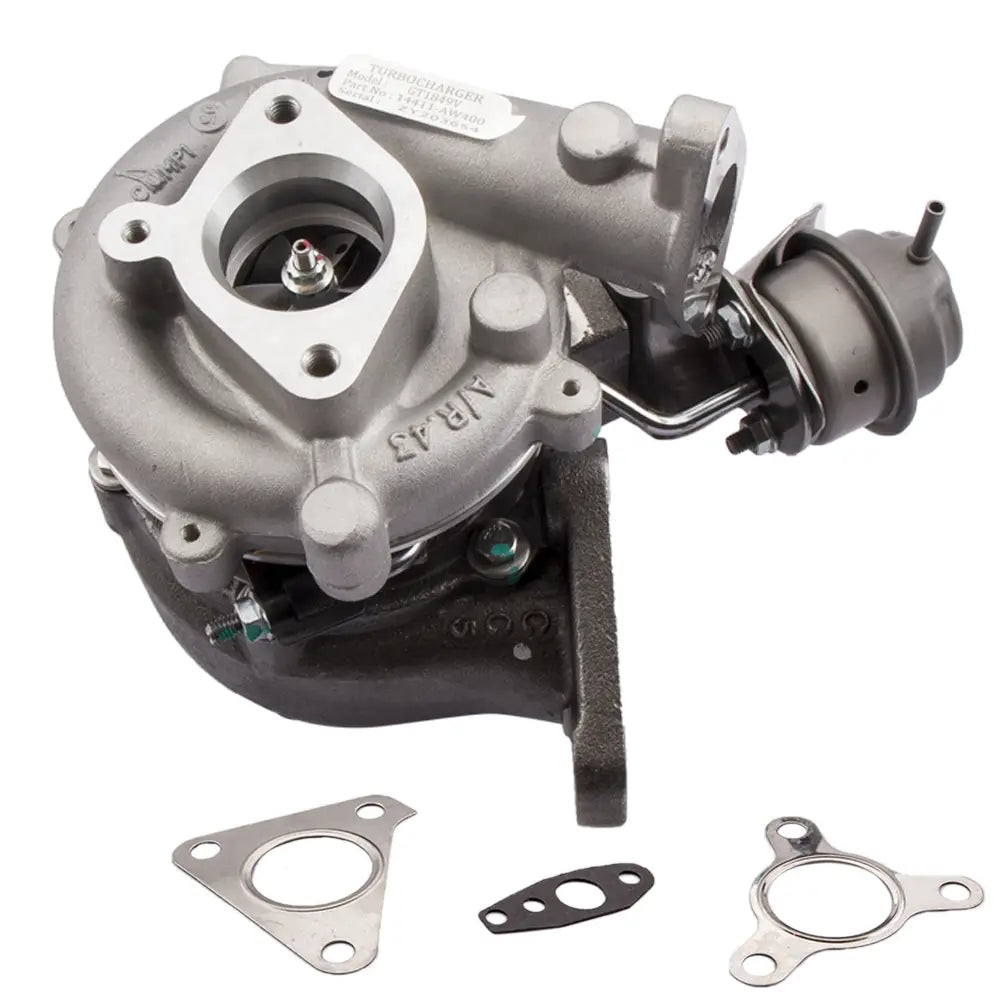

Accessories: You will get exactly as shown in the picture above

NOTE

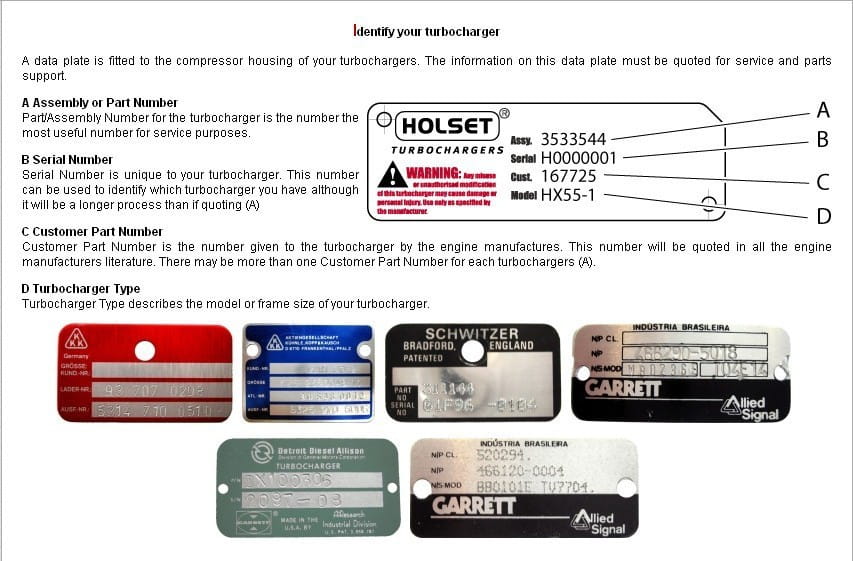

* Please confirm your old turbo part number matches up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* It is for repairing or rebuilding the complete turbo
*For any needs please contact us
