Turbo GT1749V for RENAULT 1.9 DCi 120cv F9Q 708639 8200256077 LAGUNA SCENIC MEGANE

Type:Street type Turbocharger Turbine

Application:

for MITSUBISHI CARISMA 1.9 DI-D 115 09/2000 - 06/2006

for MITSUBISHI CARISMA Saloon 1.9 DI-D 115 09/2000 - 06/2006

for MITSUBISHI SPACE STAR MPV (DG-A) 1.9 DI-D 115 10/2002 -12/2004

for NISSAN PRIMERA (P12) 1.9 dCi 120 04/2003

for NISSAN PRIMERA Estate (WP12) 1.9 dCi 120 04/2003

for NISSAN PRIMERA Hatchback (P12) 1.9 dCi 120 04/2003

for RENAULT ESPACE IV 1.9 dCi 116 04/2003 - 02/2005

for RENAULT ESPACE IV 1.9 dCi 120 11/2002

for RENAULT GRAND SCENIC II 1.9 dCi 120 04/2004

for RENAULT LAGUNA II 1.9 dCi 120 03/2001

for RENAULT LAGUNA II Grandtour 1.9 dCi 120 03/2001

for RENAULT MEGANE II 1.9 dCi 120 OF 11/2002 - 02/2008

for RENAULT MEGANE II Coupe-Cabriolet 1.9 dCi 120 09/2003 - 03/2009

for RENAULT MEGANE II Estate 1.9 dCi 120 08/2003 - 07/2009

for RENAULT MEGANE II Saloon 1.9 dCi 120 09/2003

for RENAULT SCENIC II 1.9 dCi 120 06/2003

for VOLVO S40 I (VS) 1.9 DI 102 07/2000 -12/2003

for VOLVO S40 I (VS) 1.9 DI 115 07/2000 -12/2003

for VOLVO V40 Estate 1.9 DI 102 07/2000 - 06/2004

for VOLVO V40 Estate 1.9 DI 115 07/2000 - 06.2004

Specification

Turbo Model: GT1749V

Engine Code: F9Q/820, F9Q756, F9Q800, D4192T3

Bearing Type: Journal Bearing/Floating Bearing

Trust bearings: 270 Degrees

Hosepower: Up to 120HP

Condition: Brand New

Warrants: 2 years warranty for any manufacturing defect

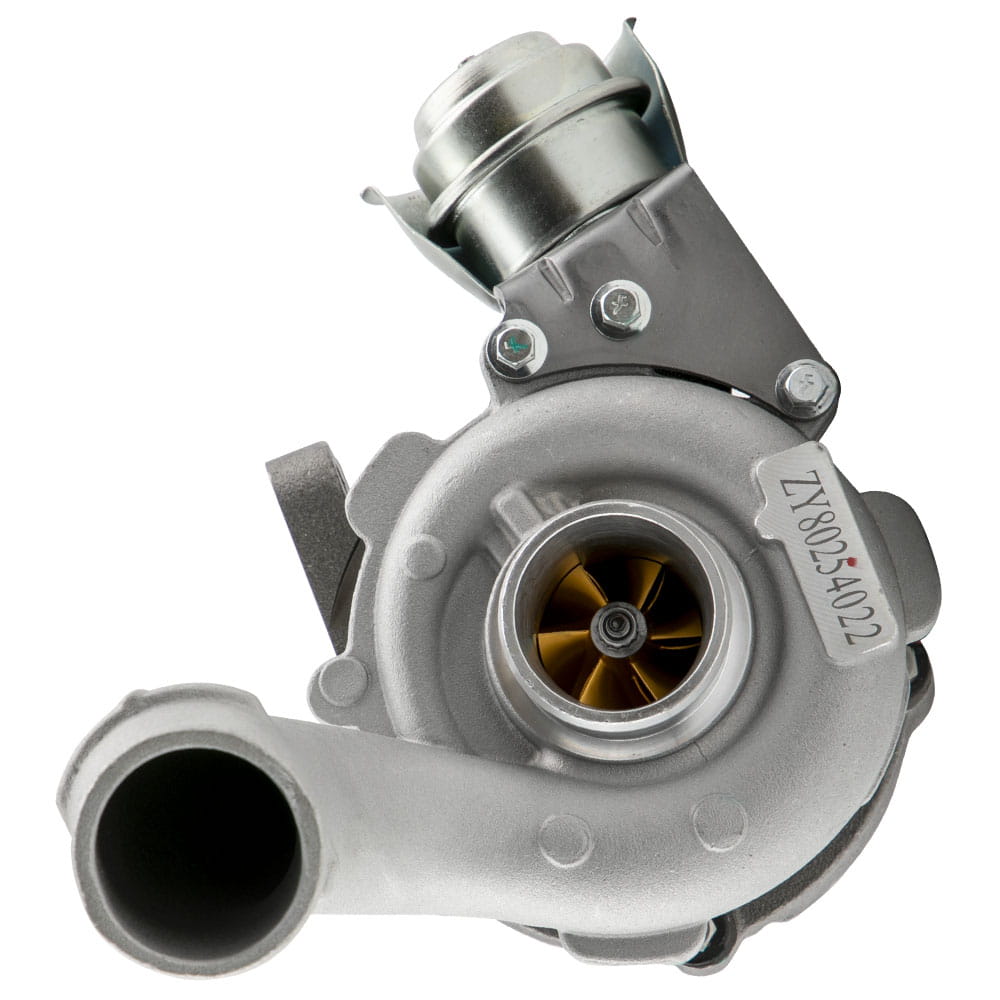

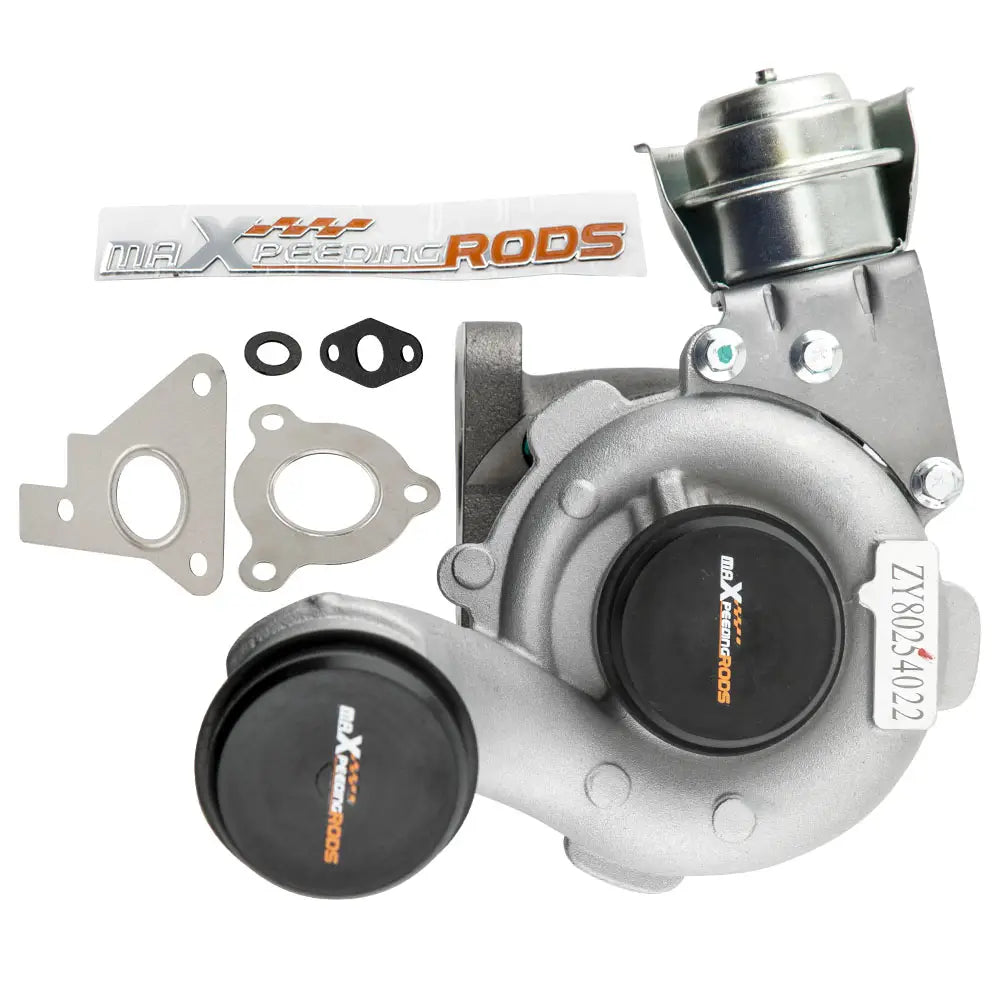

Accessories: You will get exactly as shown in the picture above

Features

Product Material：

1. Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

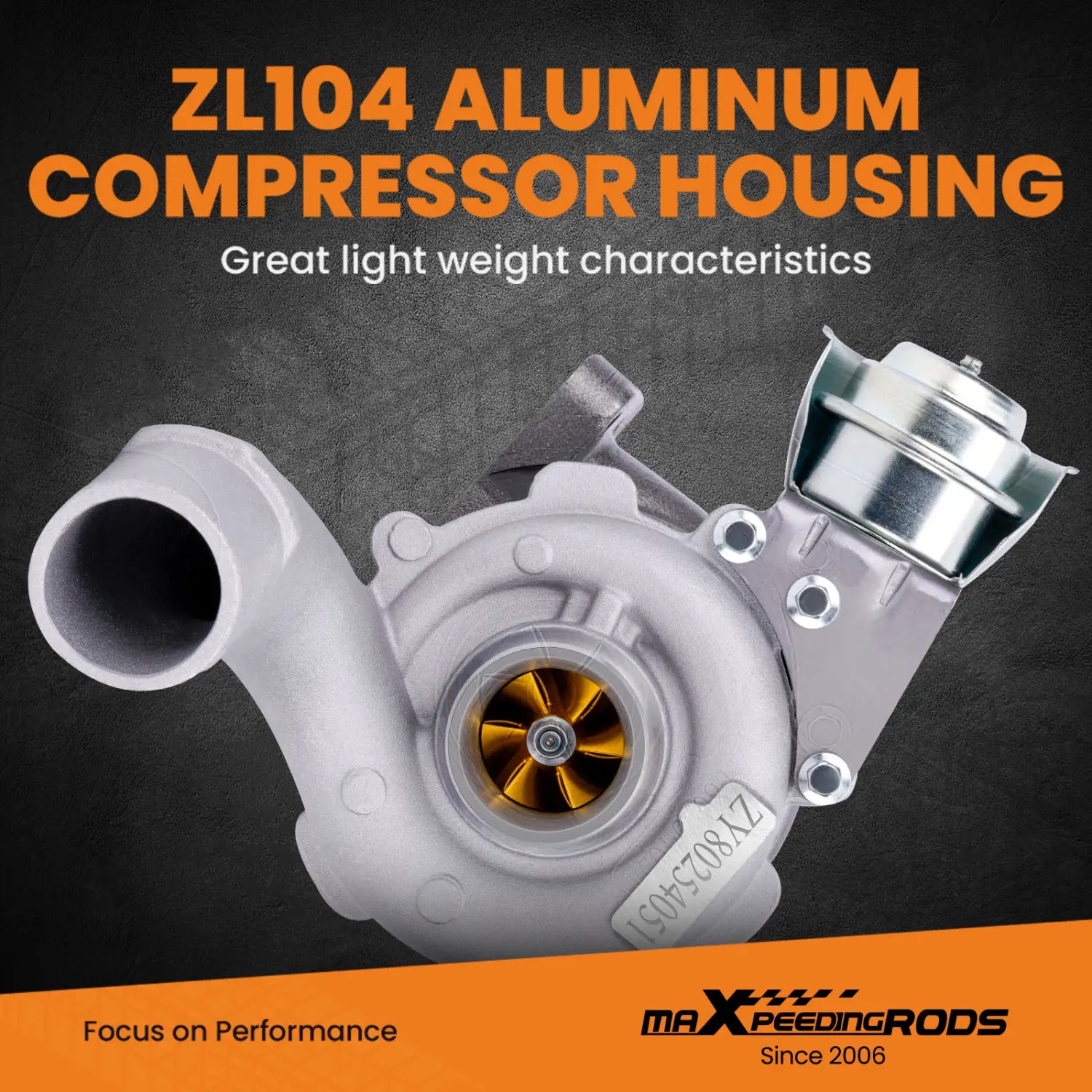

3. Compressor housing：ZL104 aluminum with lightweight

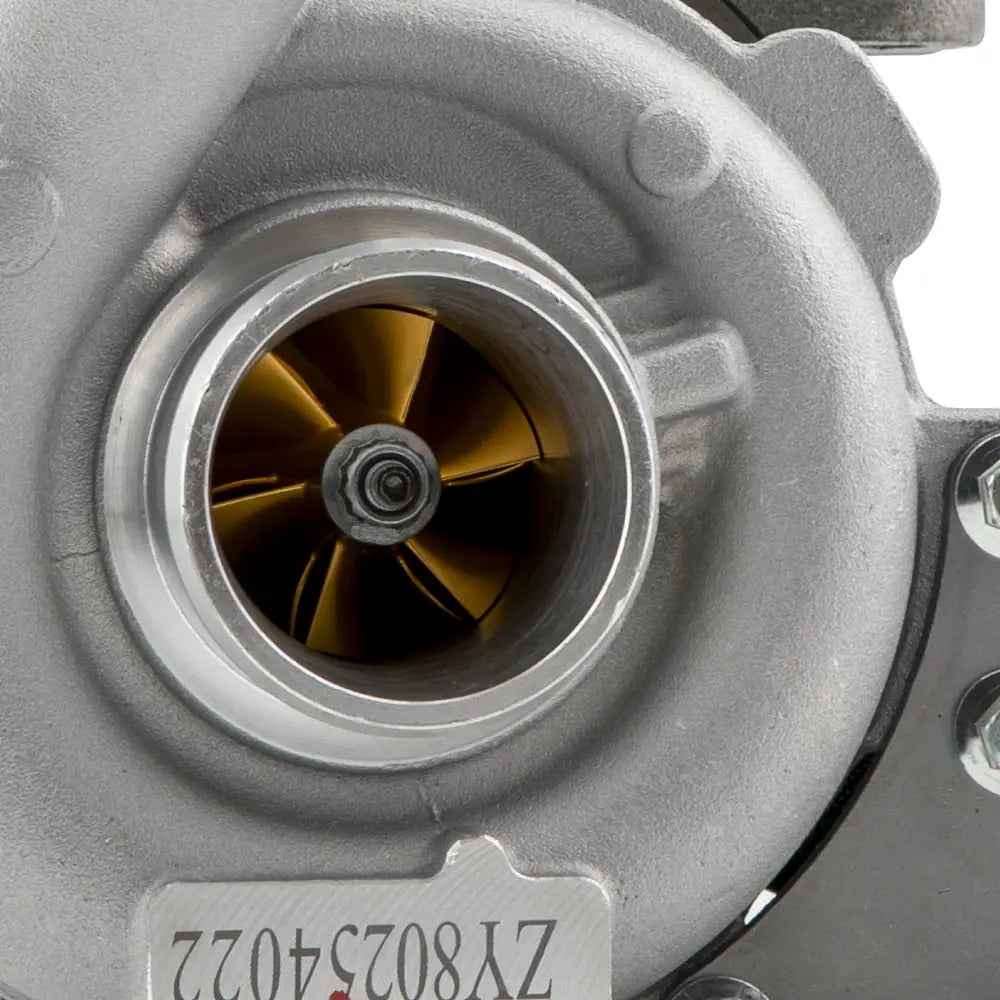

4. compressor wheel/blades：Cast aluminum with good gas tightness and corrosion resistance

Product Performance：

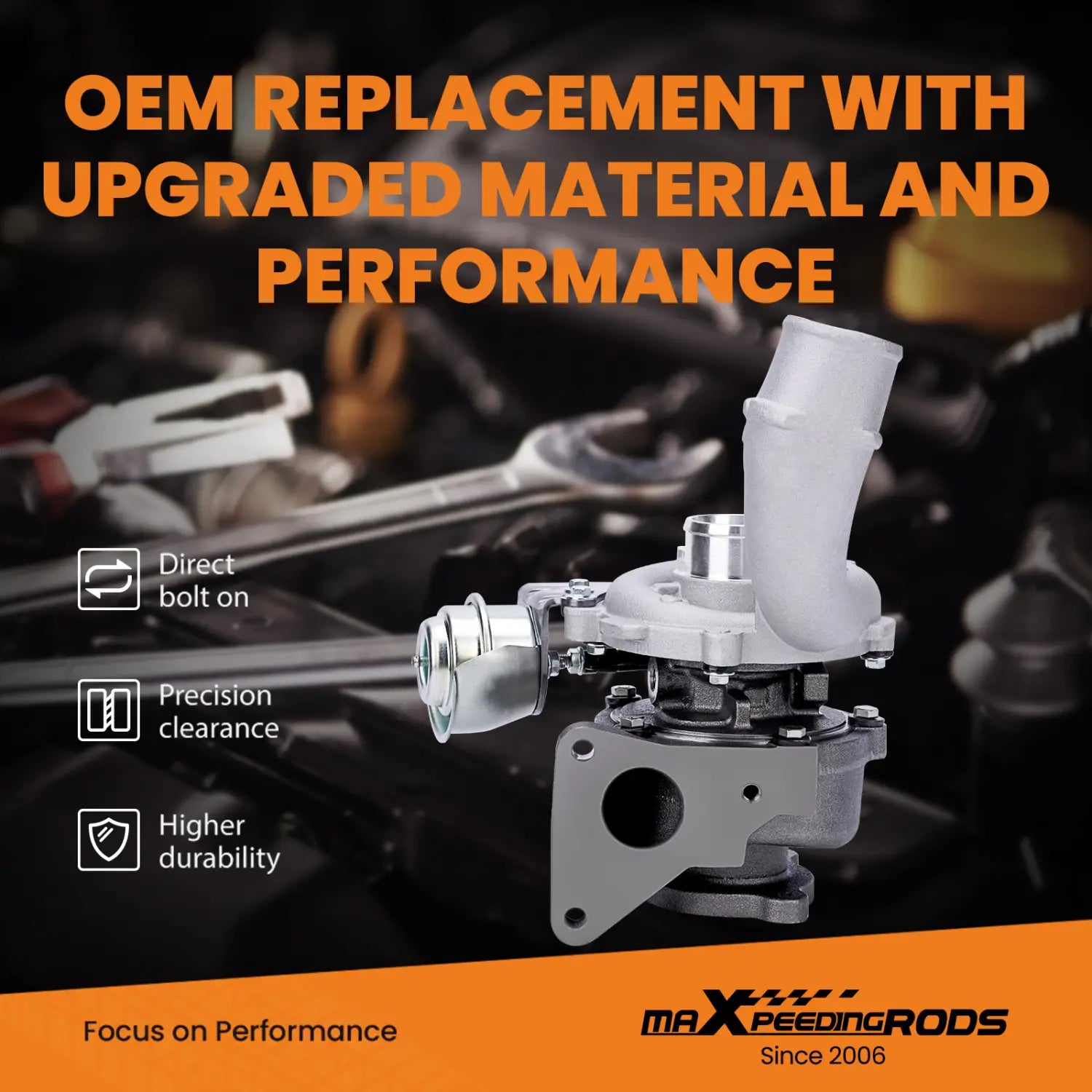

1. OEM-quality and size with little modification

2. Rich Experience In Turbo Production And Own Factory

3. Quality Assurance

4. High Performance Rotor

5. High-Speed ​​Oil Seal Ring

6. Strict Quality Inspection

7. Precision Clearance

8. High-speed Accessories

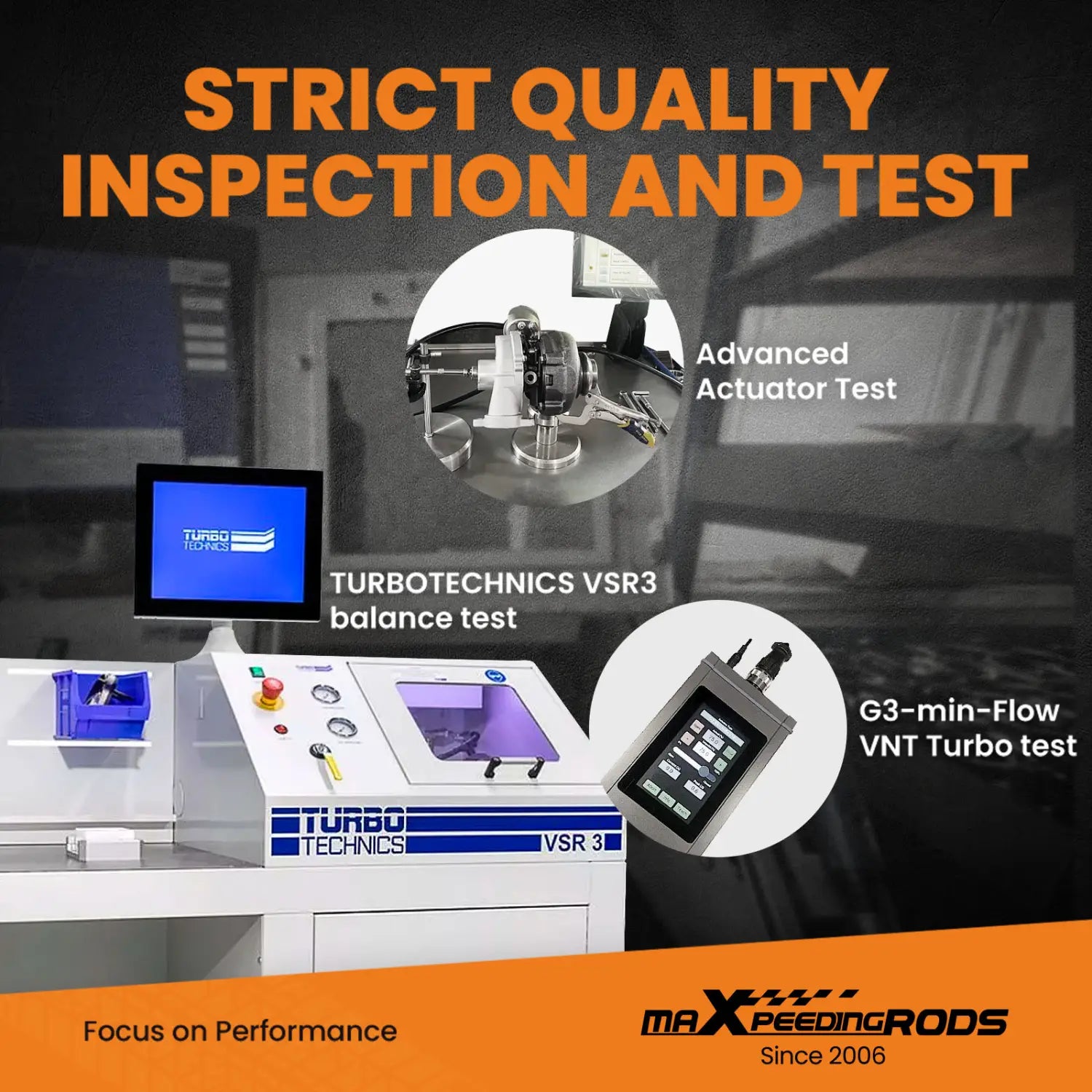

1. balancing Test by TURBOTECHNICS VSR3

This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer：

electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Notice:

We highly recommend you make sure the points below before installing:

1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.

2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.

3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.

Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
