Auxiliary air suspension kit for commercial vehicles
The air spring bag assist kit is designed for installation on the rear axle of Fiat Ducato, Peugeot Boxer, Citroën Relay and Citroën Jumper vehicles from 1994 to 2023. The manufacturer also specifies the 2024 model year in the application data. The kit can be used on vehicles with single or twin rear wheels and with front or rear wheel drive.
Designed for use with vans, tippers, campers, camper vans, and box vans. AL-KO chassis with torsion bars are not suitable.
Technical data
- Part type: auxiliary air suspension kit with air bellows and 12V compressor
- Installation location: rear left and right sides
- Chassis type: standard
- Maximum load specified for the set: 4000 kg
- Bellows material: hardened natural rubber
- Structural height of the bellows: 172 mm
- Bellows stroke: 140 mm
- Maximum stretch: 230 mm
- Minimum height when compressed: 90 mm
- Compressor: 12V, 150W, maximum current 10A
- Maximum compressor operating pressure: 10 bar (1 MPa)
- Package dimensions: 42 × 37 × 27 cm
- Package weight: 12.4 kg
- Condition: new
OEM/OE numbers
There are no confirmed OEM/OE numbers for this product.
Important information regarding assembly
This is an aftermarket product designed to replace the appropriate suspension component. Before purchasing, please verify the vehicle model, year, chassis type, rear wheel type, and drivetrain. The manufacturer recommends installation by a qualified technician.
Helpful information before purchasing
This kit is designed for Fiat Ducato, Peugeot Boxer, Citroën Relay, and Citroën Jumper vehicles from 1994–2023; the application data also includes a 2024 model year. It fits selected configurations with single or twin rear wheels, FWD or RWD, and body styles such as panel vans, tippers, campers, camper vans, or box vans. It is not designed for AL-KO chassis with torsion bars.
The most important information
- Mounting on the rear axle on the left and right side.
- The maximum load stated in the product data is 4000 kg.
- The set includes bellows made of hardened natural rubber and a 12V compressor.
- Bellows parameters: construction height 172 mm, stroke 140 mm, height range 90–230 mm.
- Compressor parameters: 150 W, 12 V, maximum current 10 A, maximum working pressure 10 bar.

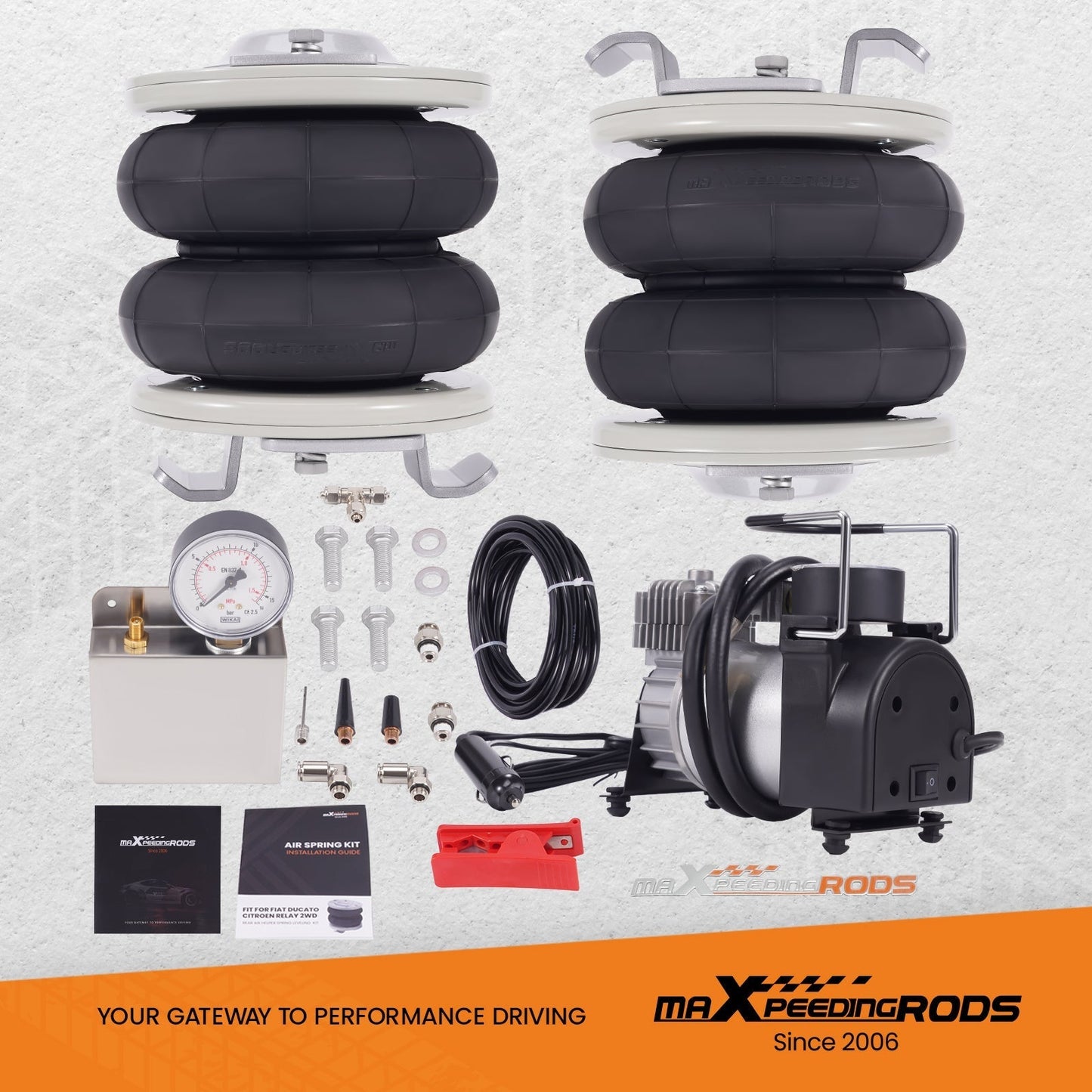

Contents of the set
- 2 × air springs made of natural rubber and high-strength steel
- 4 x heavy-duty galvanized mounting brackets
- 1 × 12V air suspension compressor
- 1 × manometer
- 4 × air hose connector
- 1 × 8 m air hose
- 1 × mounting box
- Mounting screws and gaskets
Frequently asked questions
How do I check if a part fits?
Please compare the make, model, and year of your vehicle, rear wheel type, drive type, and chassis type. This kit is not suitable for AL-KO chassis with torsion bars. If in doubt, consult your vehicle's specifications before making a selection.
Is the product ready for assembly?
The kit includes the items listed in the description, but installation requires specific instructions. The manufacturer recommends professional installation.
Does the offer include a complete set?
The offer includes the items indicated in the "Kit Contents" section, including two bellows, brackets, a 12V compressor, a pressure gauge, a hose, connectors, a mounting box, screws and gaskets.
