Diesel injector removal kit
A professional set of hand pullers and slide hammers designed for removing seized and stuck injectors in diesel engines. These tools allow for the use of adapters, clamps, and injector extraction sleeves.
Designed for workshop use, the kit can be used to remove injectors without disassembling the cylinder head, provided the specific engine design and component accessibility allow. Before purchasing, please compare the dimensions of the accessory with your vehicle's specifications.
Technical data
- Product type: hand diesel injector puller kit.
- The set includes three slide hammers with a weight and length of: 1.6 kg/160 mm, 2.7 kg/460 mm and 5.1 kg/600 mm.
- Two puller legs with fork opening 13.7 x 18 mm and 105 mm long and 12.7 x 19 mm and 130 mm long.

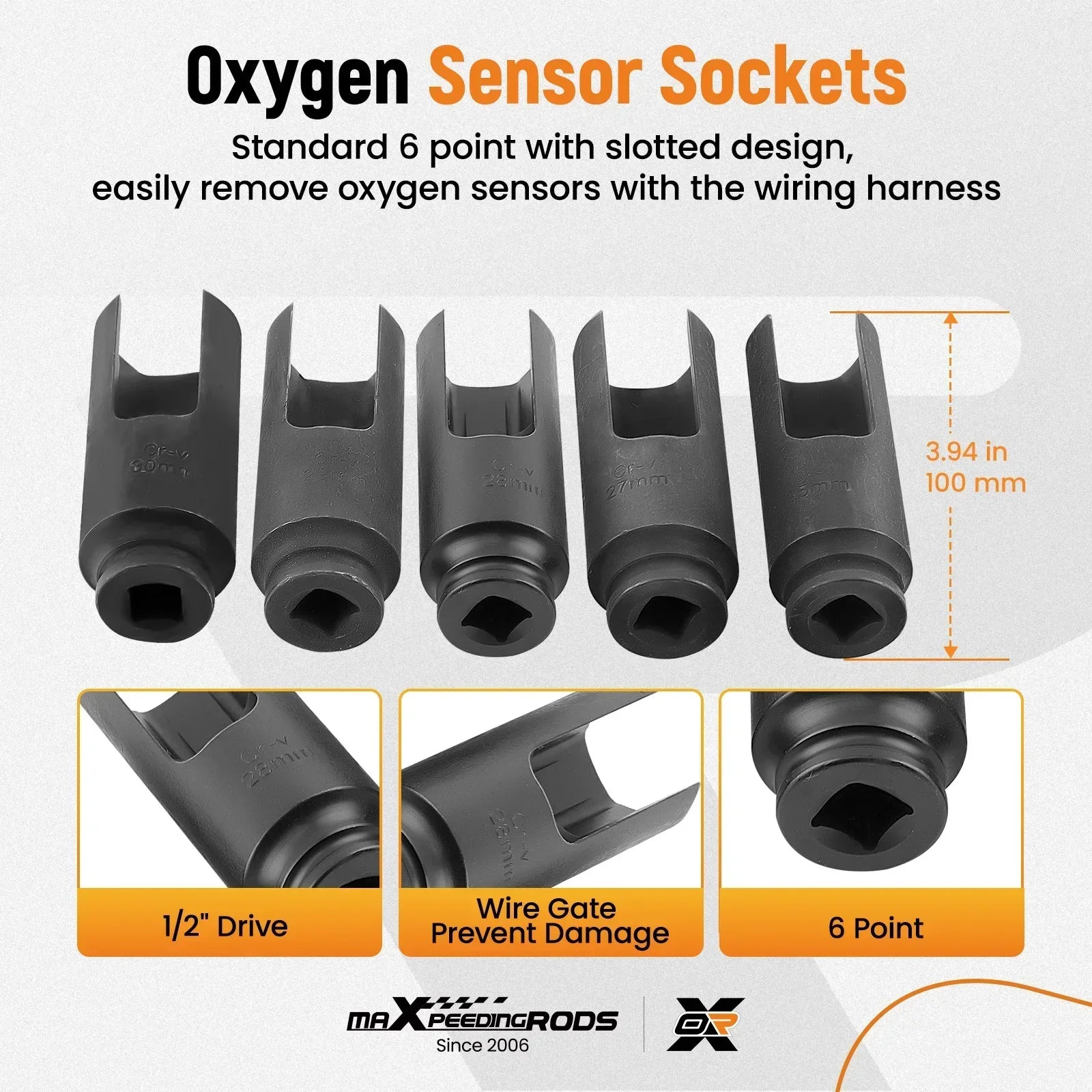

- Five 1/2 inch 6-point slotted sockets, 100mm long, in sizes 25, 27, 28, 29 and 30mm.

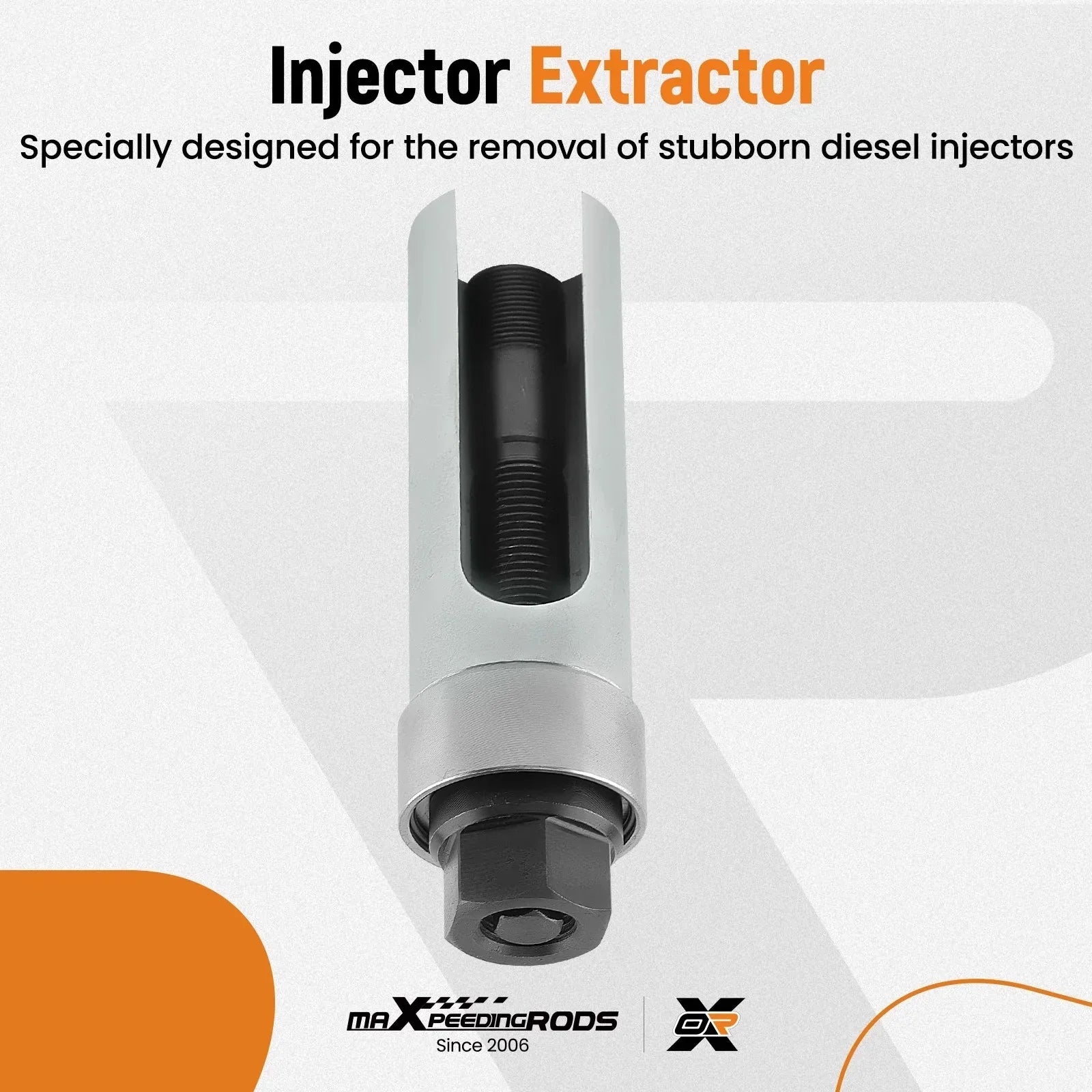

- Injector puller sleeve: outer diameter 35 mm, inner diameter 29 mm, pin M17 x 1.0.

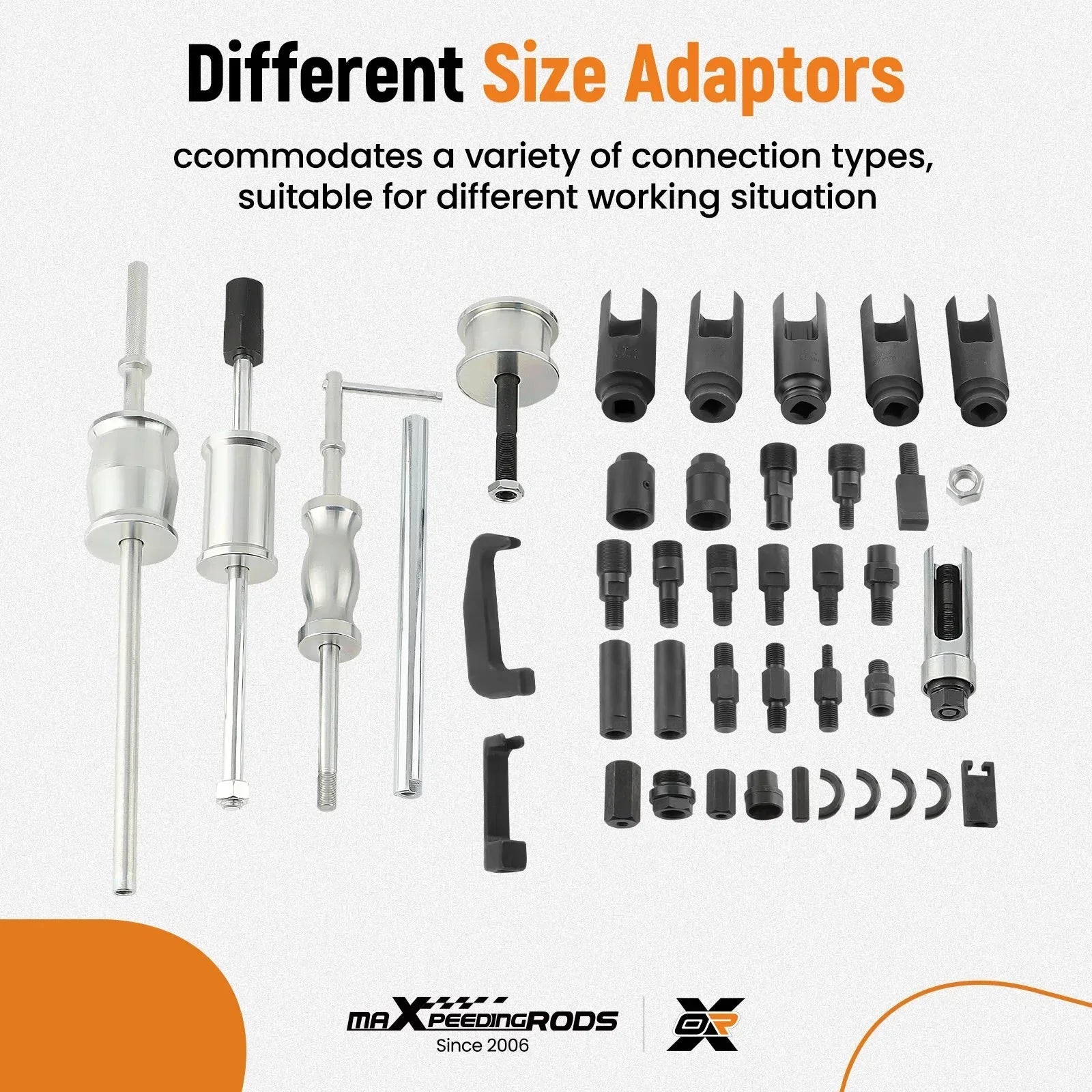

- Adapters with external thread: M27 x 1.0 - 3 pieces and M25 x 1.0.
- Adapters with internal thread M27 x 1.0 - 3 pieces.
- Slide hammer adapter for internal, external and claw pullers.
Application
This kit is used to remove diesel injectors, particularly those that are seized or stuck. Selecting the appropriate socket, clamp, sleeve, and adapter depends on the injector's dimensions and the specific engine design.
This product is new. The manufacturer recommends professional installation or use by an experienced person. Before purchasing, please verify the actual dimensions of the accessory and vehicle information.
Helpful information before purchasing
This is a manual injector puller kit designed for diesel engines. Before selecting one, compare the injector dimensions, available threads, and working space with the dimensions of the adapters, sleeves, sockets, and clamps provided. This kit is not designed for gasoline engines.
The most important information
- The set includes three slide hammers weighing 1.6 kg, 2.7 kg and 5.1 kg.
- The set includes adapters with M27 x 1.0 and M25 x 1.0 threads and a sleeve with an M17 x 1.0 pin.
- The included attachments are 25-30mm in size and 100mm long.
- Before purchasing, please verify the compatibility of accessories with your specific injector and diesel engine.

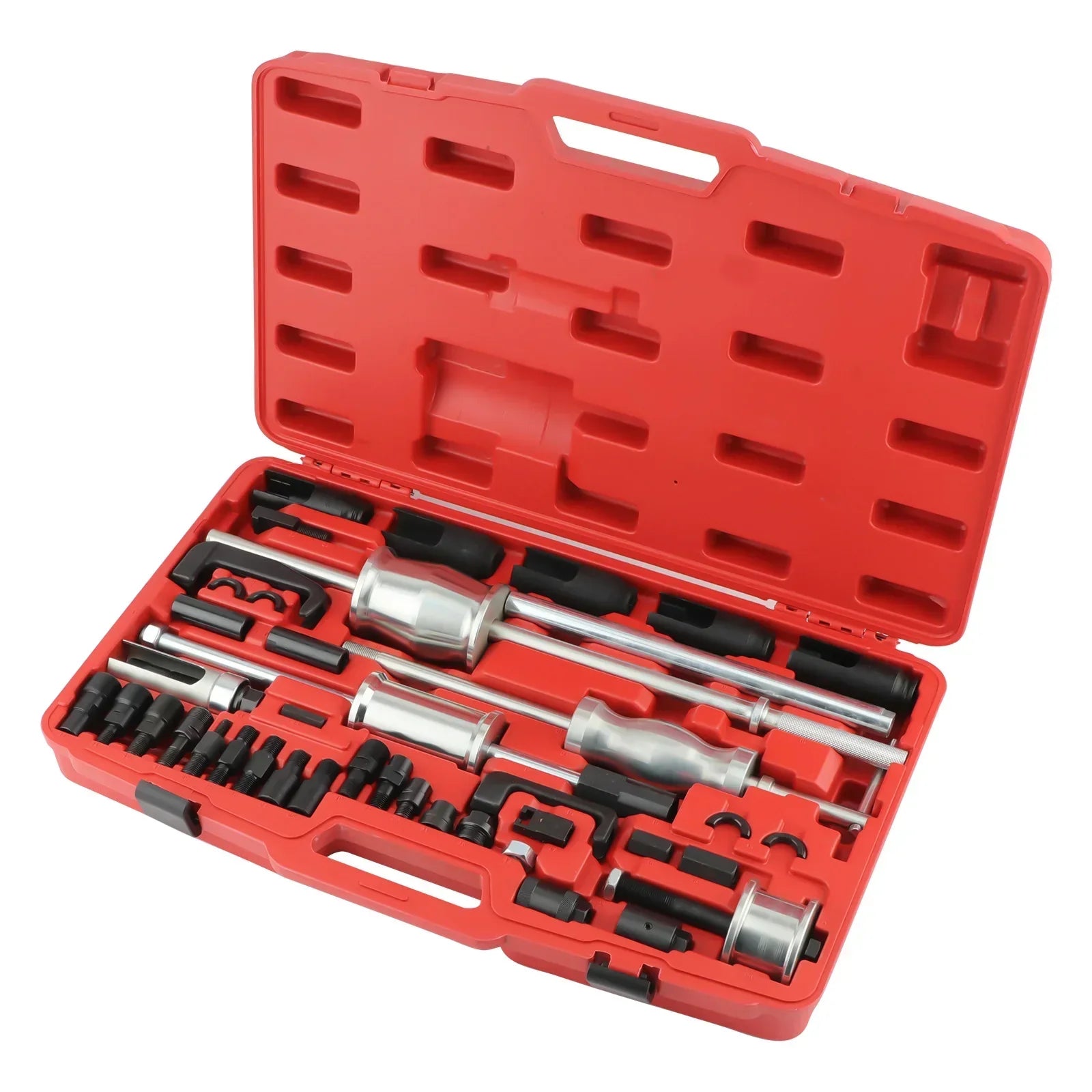

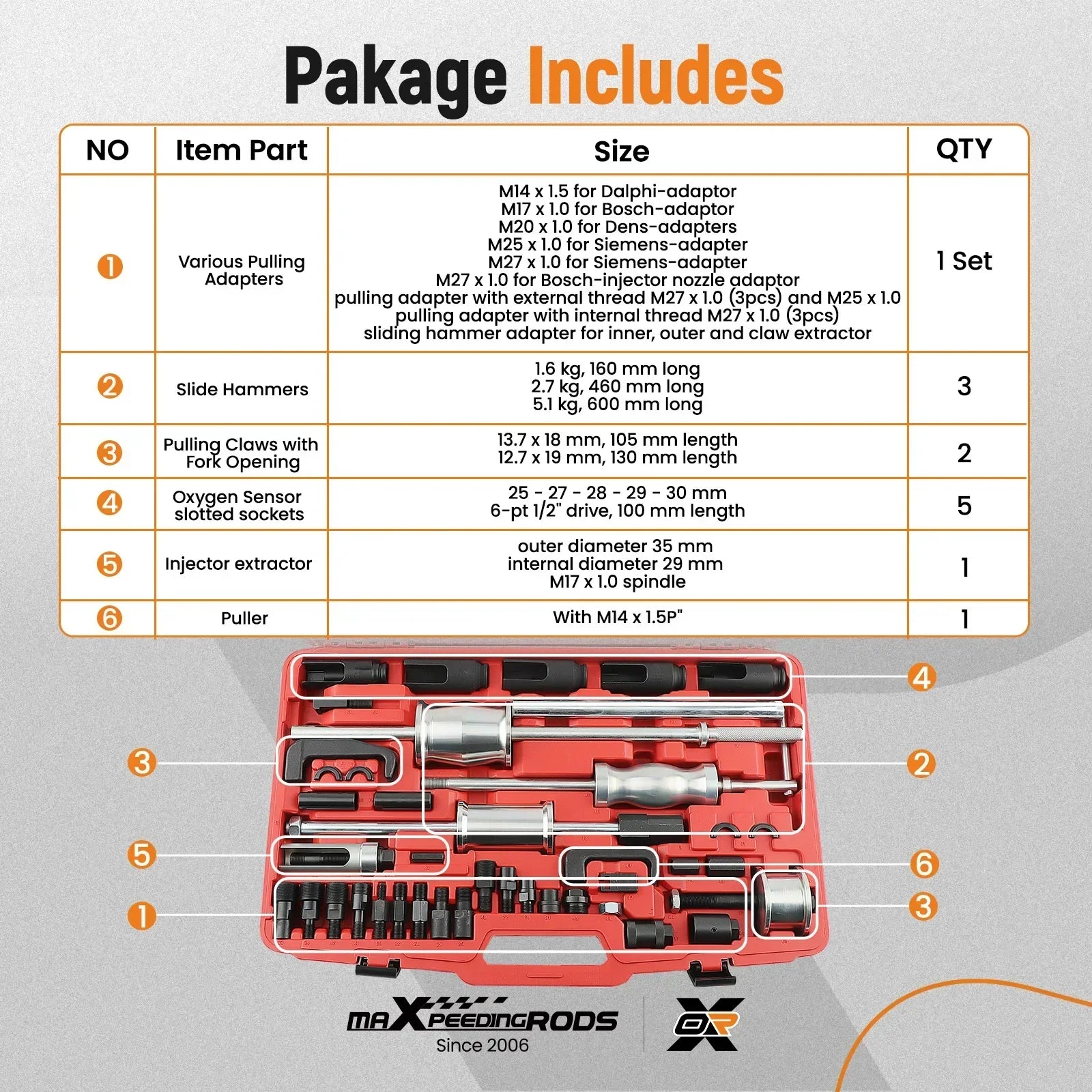

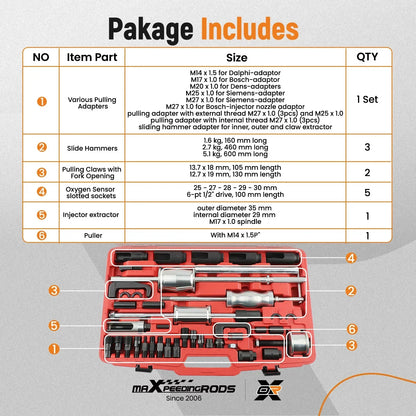

Contents of the set
- 3 slide hammers: 1.6 kg/160 mm, 2.7 kg/460 mm, 5.1 kg/600 mm
- 2 pulling paws
- 5 x 1/2 inch 6-point slotted sockets
- 1 injector puller sleeve
- Adapters with external thread M27 x 1.0 - 3 pieces and M25 x 1.0
- Adapters with internal thread M27 x 1.0 - 3 pieces
- Slide hammer adapter for internal, external and claw pullers
Frequently asked questions
How do I check if a part fits?
Check whether the injector is in the diesel engine and compare its dimensions and available mounting points with the kit components: 35/29 mm sleeve, M17 x 1.0 pin, M27 x 1.0 and M25 x 1.0 adapters and the included sockets and clamps.
Is the product ready for assembly?
This is a manual tool kit for use in removing injectors, not a permanently installed part of the vehicle. Component selection and use should be based on the engine's design; professional use is recommended.
Does the offer include a complete set?
The offer includes the items listed in the "Kit Contents" section, including three hammers, claws, sockets, sleeve and adapters.
