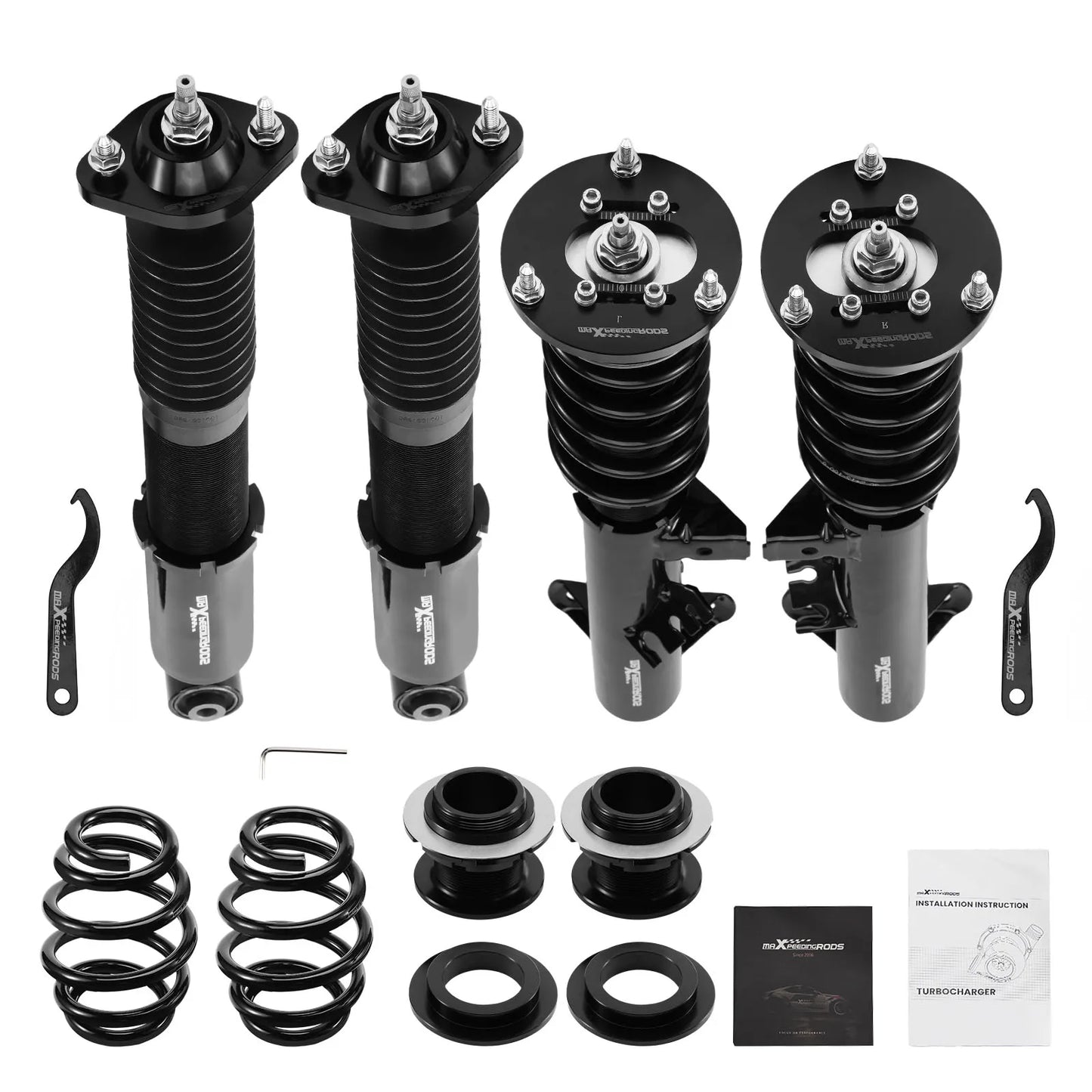

Coilover suspension for BMW E36
This coilover suspension kit is designed for selected versions of the BMW 3 Series E36: sedan, coupe, cabriolet, and Touring/Estate. Applicable to cars manufactured between 1990 and 1999, depending on body type and engine version.
The suspension height can be adjusted from 25 to 75 mm lower, depending on the vehicle model. The kit features 24-position rebound damping adjustment and spring preload adjustment. Front camber adjustment is available via adjustable camber plate mounts.
Technical specifications
- Part type: coilover suspension, Twin Tube design
- Height adjustment: lowering 25–75 mm, depending on the model
- Damping adjustment: 24 levels of rebound damping force
- Front spring: 8 kg/mm, 448 lbs/in; length 180 mm
- Rear spring: 7 kg/mm, 392 lbs/in; length 183 mm
- Tilt angle adjustment: available from the front
- Front upper mounts: pillow ball bearing camber plate
- Rear upper mounts: pillow ball
- Recommended spring preload: 7–10 mm
- Finish: anodized aluminum elements and powder-coated carbon steel elements
BMW E36 Application
BMW E36 Sedan, 09/1990–12/1998
316i, 318i, 320i, 323i, 325i, 328i, 318is, 325is, 318tds, 325tds, 325td and M3.
BMW E36 Coupe, 09/1991–04/1999
318is, 316i, 320i, 323i, 323is, 325i, 328i, 328is and M3.
BMW E36 Convertible, 03/1993–04/1999
318i, 320i, 323i, 325i, 328i and M3.
BMW E36 Touring/Estate, 08/1994–12/1999
316i, 318i, 320i, 323i, 328i, 318tds and 325tds.
Design and regulation
- Height adjustment allows you to change the body position depending on the vehicle version.
- 24-step damping adjustment allows you to change the rebound damping force setting.
- The spring preload adjustment is used to set the spring tension.
- Front adjustable camber plates and pillow ball mounts are designed to adjust steering geometry and response.
- The lower mounts are made of steel and the upper mounts are made of CNC machined aluminum, as per product specifications.
- The shock absorber inserts have rubber protective covers.
OEM/OE numbers
There are no confirmed OEM/OE numbers for this product in the source data.
Important assembly information
Modified suspension installation should be performed by a licensed mechanic, in accordance with local vehicle modification regulations. Before and after installation, check that all components are tightened to the correct torque using the vehicle's service manual. Do not use an impact wrench for installation.
Before use, check the clearance between the tires and the suspension. The minimum clearance should be 4 mm; otherwise, wheel spacers may be necessary. After installation, the suspension geometry should also be verified.
The source recommends regular maintenance of the coilover suspension and spraying it with WD-40 every 3-4 months to keep the adjustments smooth and the components clean.
Helpful information before purchasing
Before purchasing, compare your BMW E36 body style, year, and engine version with the application list. The kit includes sedan, coupe, cabriolet, and Touring/Estate, but the range of years and versions available varies by body style.
The most important information
- The lowering adjustment is 25–75 mm, depending on the vehicle model.
- The rebound damping force has 24 adjustment levels.
- Tilt angle adjustment is available from the front.
- The springs have a characteristic of 8 kg/mm at the front and 7 kg/mm at the rear.
- Before installation, check the clearance between the tire and the suspension; the minimum value stated in the source is 4 mm.
Contents of the set
- 2 × front coilover suspension
- 2 × rear coilover suspension
- 2 × C hook wrench for adjustment
- 1 × Allen key
Frequently asked questions
How do I check if a part fits?
Check the body type, year, and engine version of your BMW E36 and compare them with the application list provided in the description. If in doubt, also verify the suspension design and geometry in the vehicle's service documentation.
Is the product ready for assembly?
The source does not confirm additional preparation or easy installation. Installation should be performed by a licensed mechanic using the proper torque specifications; impact wrenches are not permitted.
Does the offer include a complete set?
According to the source, the kit includes two front elements, two rear elements, two C-hook wrenches, and one Allen key. Other components are not specified.
