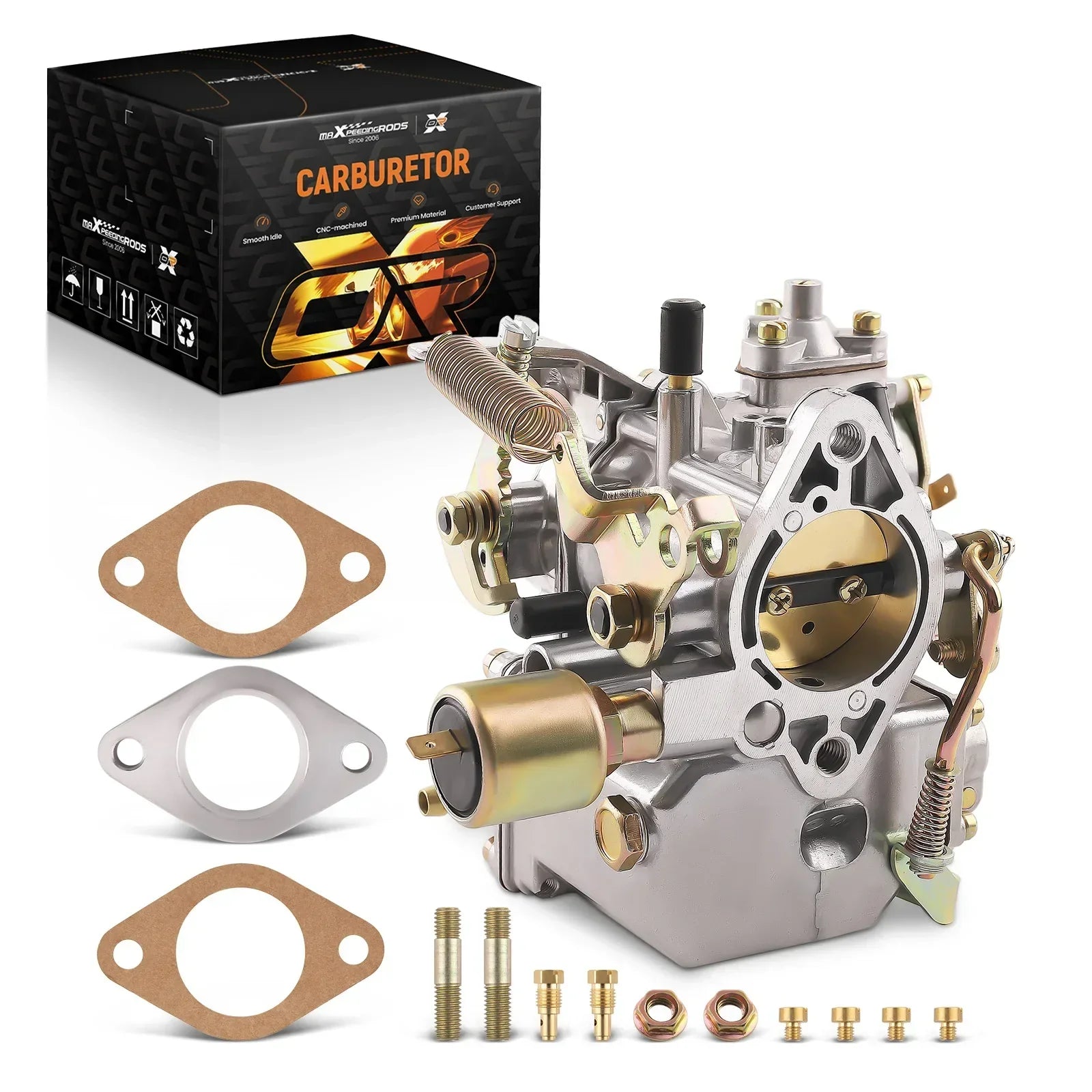

Carburetor 39 PICT-3 for Volkswagen Type 1 engines
The 39 PICT-3 carburetor with automatic choke is designed for air-cooled Volkswagen Type 1 engines with a capacity of 1600 cm³. According to sources, it is used in models such as the Beetle, Super Beetle, Thing, Karmann Ghia, Squareback, and Transporter.
The body is made of zinc alloy. The carburetor has an automatic choke powered by 12V. Before ordering, please compare dimensions, old part numbers, and your vehicle's engine, as application range depends on the specific configuration.
Application
- Volkswagen Beetle: 1971–1979
- Volkswagen Super Beetle: 1971–1979
- Volkswagen Thing: 1973–1974
- Volkswagen Karmann Ghia: 1971–1974
- Volkswagen Squareback: 1967–1973
- Volkswagen Transporter: 1969–1972
- Volkswagen Type 1 1600cc air-cooled engines
Technical specifications
- Type: 39 PICT-3
- Suction: automatic
- Suction supply voltage: 12V
- Material: zinc alloy
- Mounting pin spacing: 68 mm, measured center to center
- Intake mount diameter: 39 mm
- Inner diameter of suction air inlet: 47.3 mm
- Outer diameter of suction air inlet: 51.7 mm
- Orifice diameter: 28 mm
- Location: intake hose between the air filter and the engine
- Carburetor weight: 1300 g
- Package dimensions: 20 × 18 × 16 cm
- Package weight: 1.45 kg
Confirmed OEM/OE numbers
98-1289-B, 113129031K, Pict-3, 113129031
Important assembly information
Before installation, clean the fuel passages and air filter, and use clean fuel. We recommend that installation be performed by a qualified mechanic with experience in this type of work. Installation instructions are not included. Please allow 1-2 mm of measurement variation due to manual measurement.
Helpful information before purchasing
This is a 39 PICT-3 carburetor with automatic choke for air-cooled Volkswagen Type 1 1600cc engines. Before purchasing, compare the carburetor dimensions, old part numbers, and engine version with your vehicle's specifications. Applicable models include selected Beetle, Super Beetle, Thing, Karmann Ghia, Squareback, and Transporter model years.
The most important information
- Carburetor type: 39 PICT-3, automatic choke, 12V power supply.
- The mounting stud spacing is 68 mm and the intake mounting diameter is 39 mm.
- The orifice diameter is 28 mm; the inner and outer diameters of the intake air inlet are 47.3 mm and 51.7 mm, respectively.
- Before installation, clean the fuel channels and air filter and use clean fuel.
Contents of the set
1 × 39 PICT-3 carburetor, 1 × gasket, 2 × jets, 2 × screws, 2 × mounting screws. Installation instructions not included.
Frequently asked questions
How do I check if a part fits?
Compare your old carburetor part number, mounting dimensions, and vehicle engine. Also, check the Volkswagen model and year against the provided application list. Part numbers for this product include 98-1289-B, 113129031K, Pict-3, and 113129031.
Is the product ready for assembly?
The source does not confirm the carburetor setting for a specific vehicle.Before installation, clean the fuel passages and air filter, and use clean fuel. Installation by a qualified mechanic is recommended; instructions are not included.
Does the offer include a complete set?
The offer includes a carburetor, a gasket, two jets, two screws and two mounting screws, as specified in the kit contents.
