SPECIFICATIONS
Brand Name: MXR
Displacement: 4.5L
External Testing Certification: ce
Highly-concerned chemical: None
Item Diameter: 21
Item Height: 42
Item Length: 27
Item Type: Other
Item Weight: 12350
Item Width: 33
Material: Cured Natural rubber
Model Name: Air Suspension Kit for Fiat Ducato 1994-2023
No. of Cylinders: 4 Cylinder
OEM NO.: Air Suspension Bag Assist Kit
Origin: Mainland China
Special Features: Air Suspension Bag Assist Kit
Year: for Fiat Ducato 1994-2023

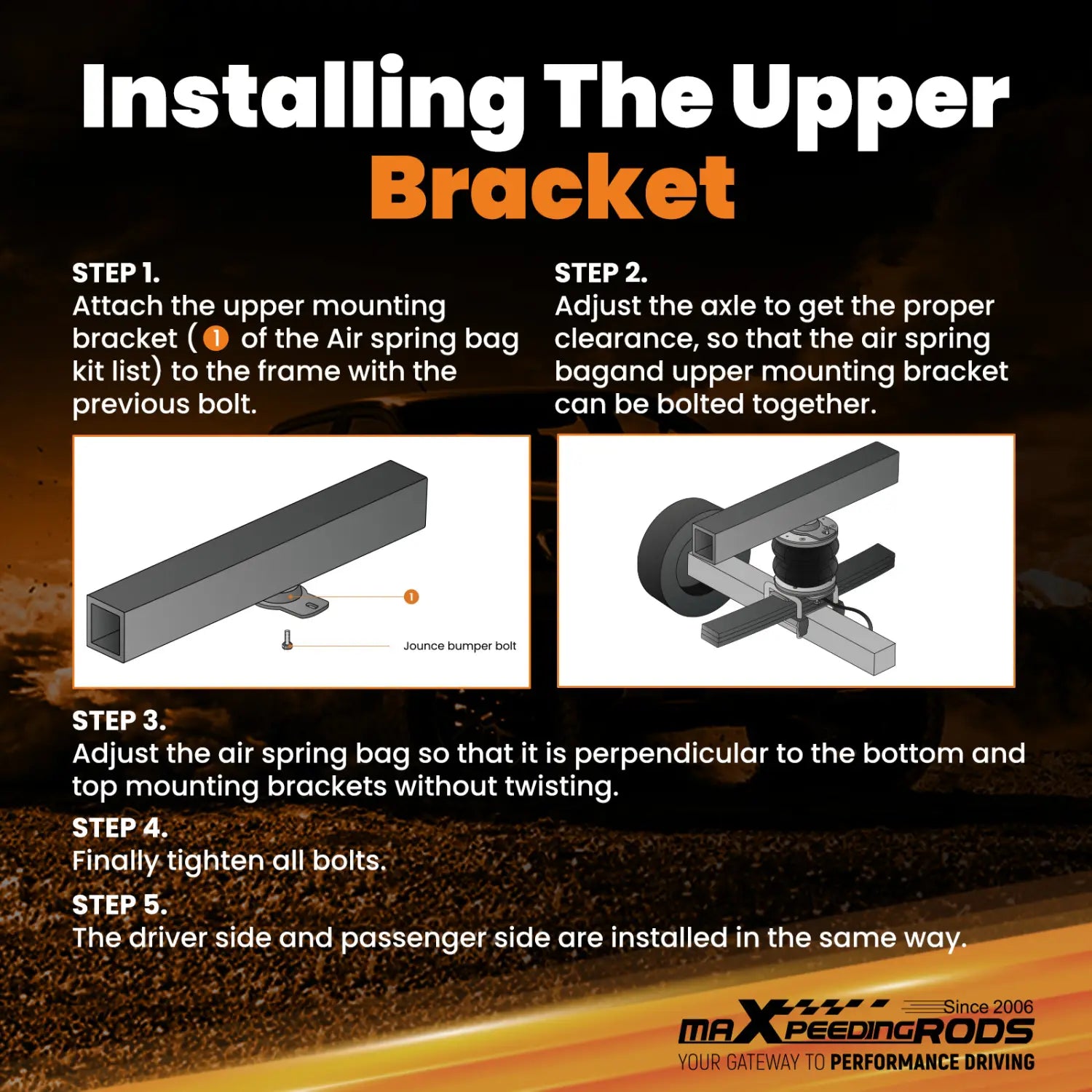

installation instructions：https://video.mxrst.com/pdf/ABK-FIA9422-VLC-EU-Installation-Guide.pdf
Air Suspension Spring Bag + 12V Compressor Kit for Fiat Ducato 1994-2023
Application
for Fiat Ducato 1994-2024
for Citroen Relay 1994-2024
for Peugeot Boxer 1994-2024
for Citroen Jumper 1994-2024
fit for single rear wheel or twin rear wheel, FWD or RWD.
BODY TYPE: Panel van, tipper, motorhome, camper, box van (excluding alco type torsion bars chassis).&
Specification
Condition: Brand New
Chassis Type: All standard type Chassis
Placement on Vehicle: Rear left and right

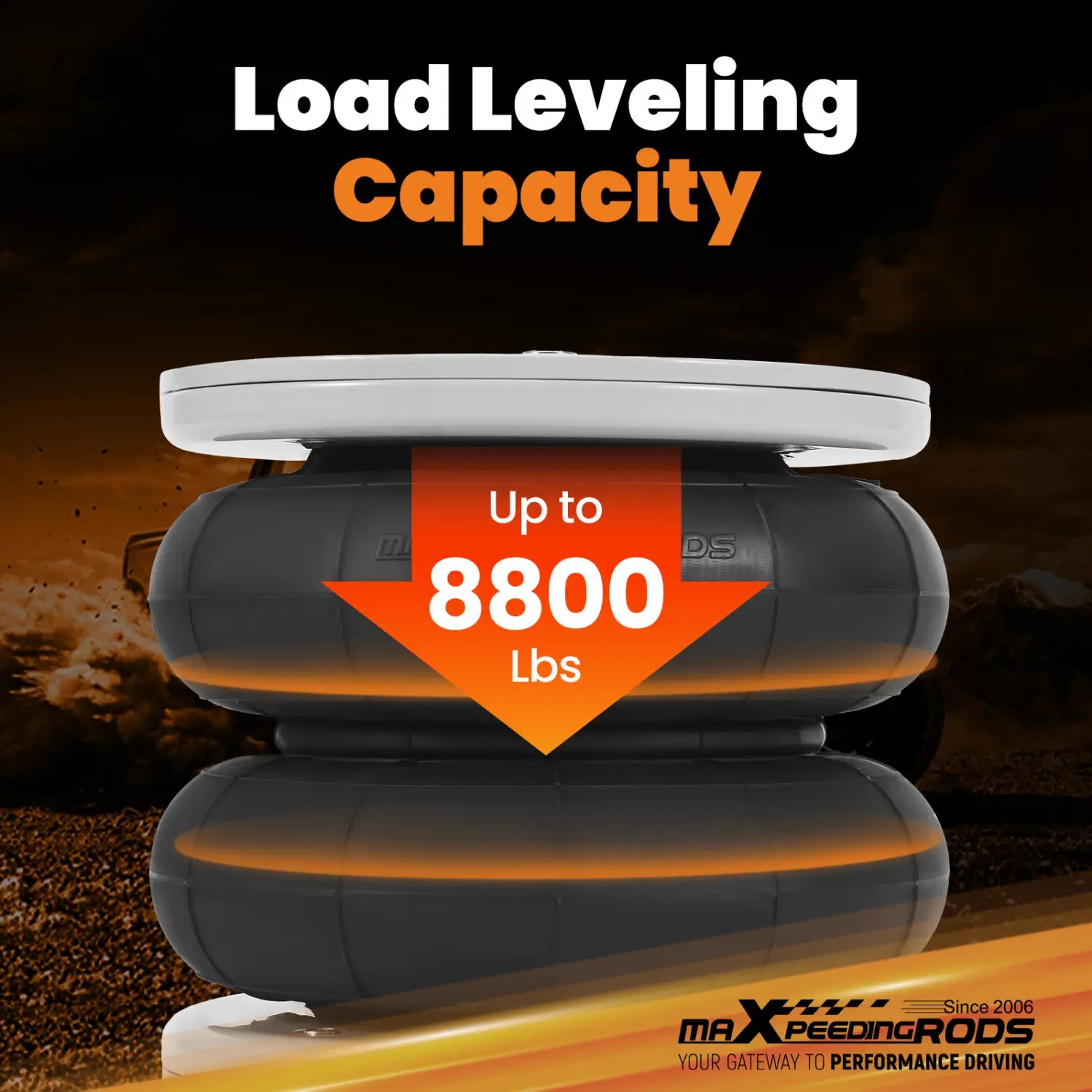

Max loading：4000 Kg
Package Length, width and height: 42*37*27 cm
Package Weight: 12.4 kg
Air spring：
Design height: 172 mm
Stroke: 140 mm
Max. Extended: 230 mm
Min.Compressed: 90 mm

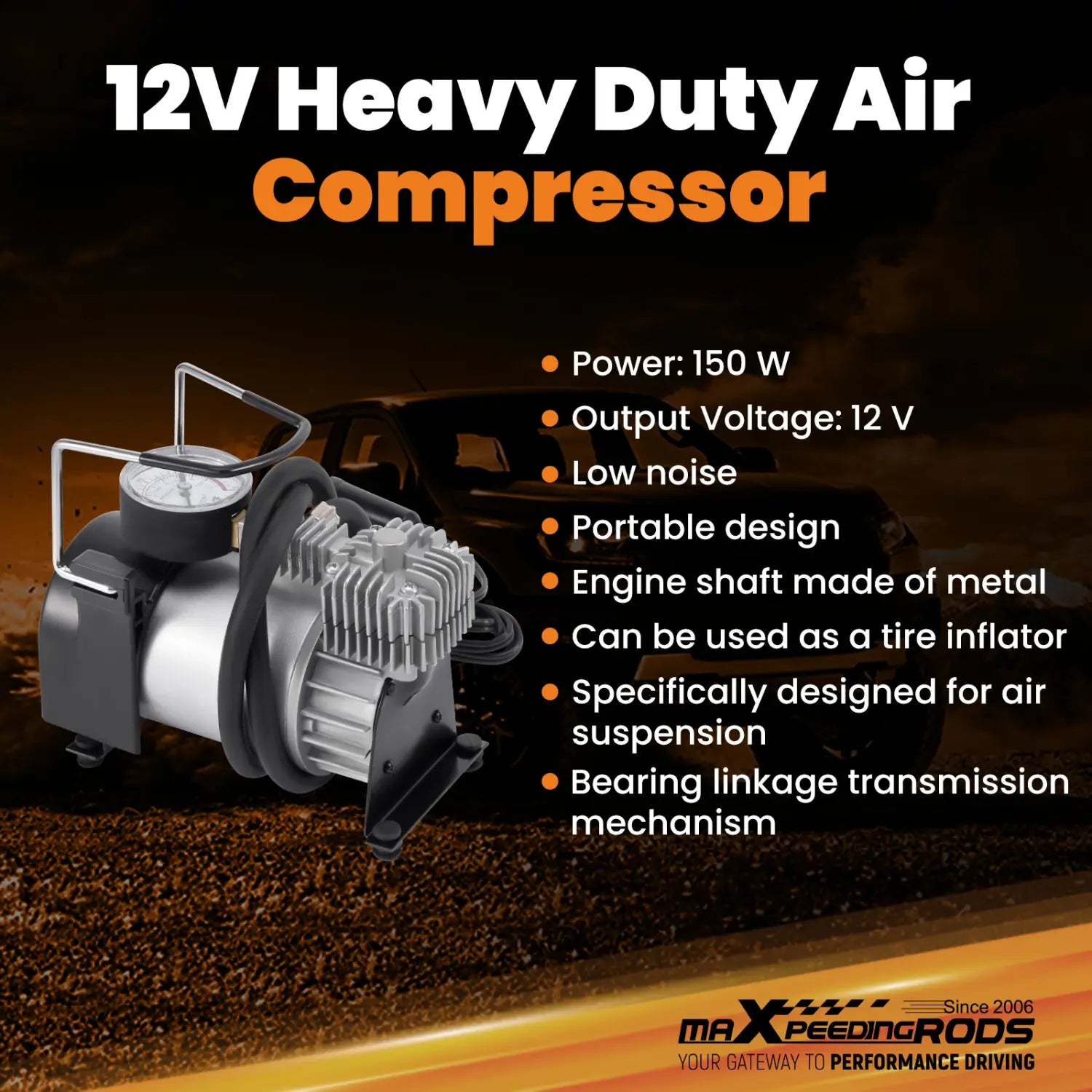

Air pump：
Power: 150W
Output Voltage: 12V
Maximum current: 10A
Maximum Working Voltage: 10bar（1MPa）

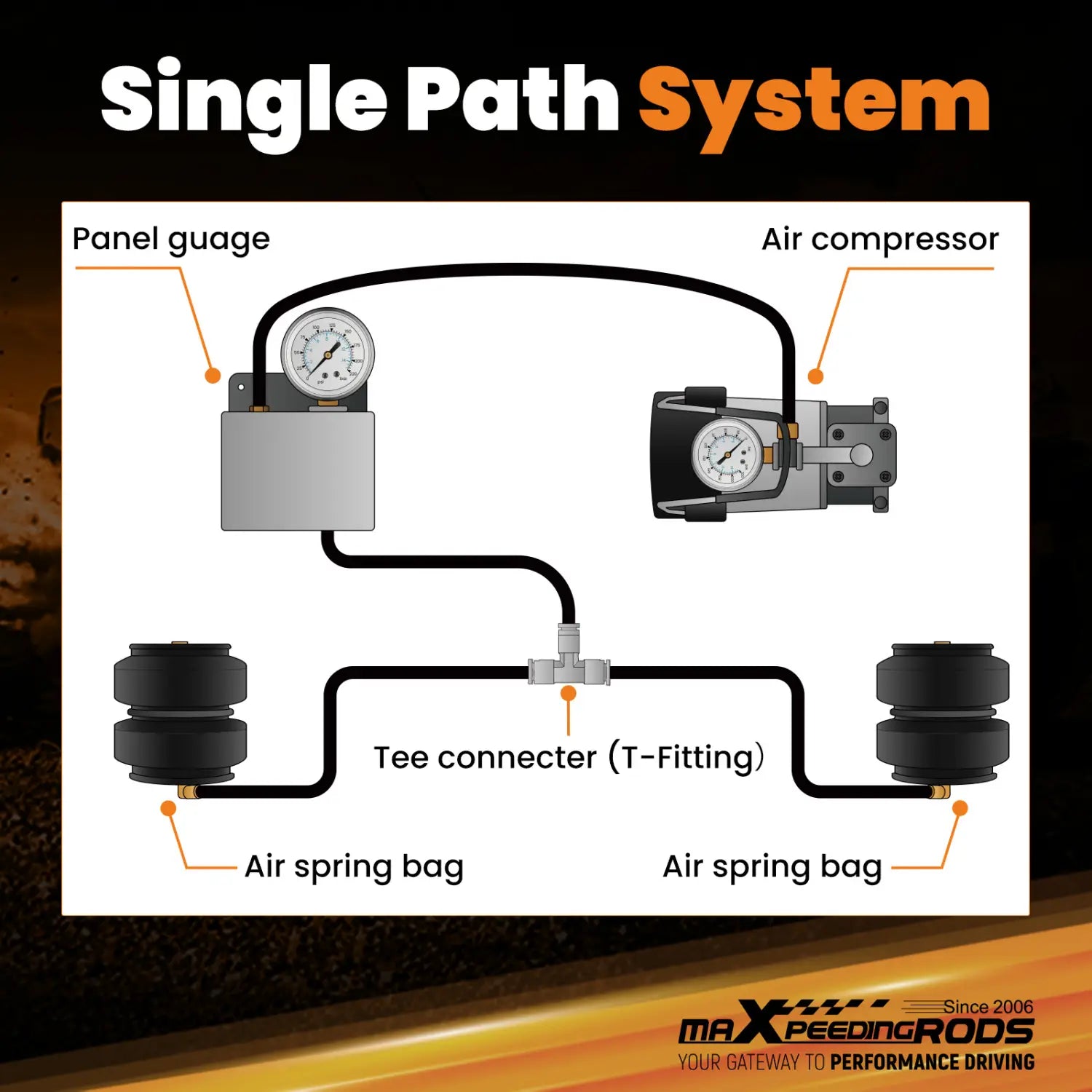

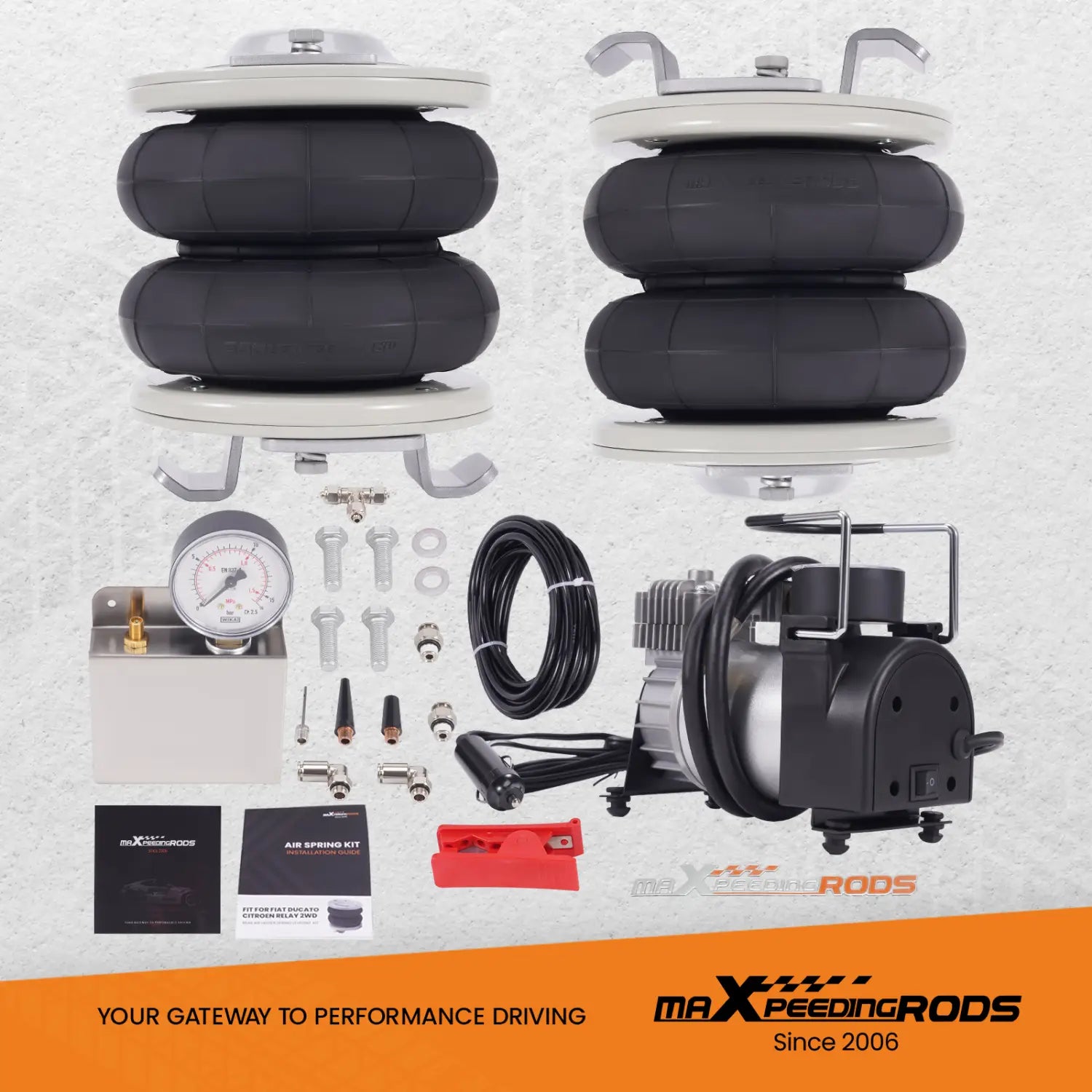

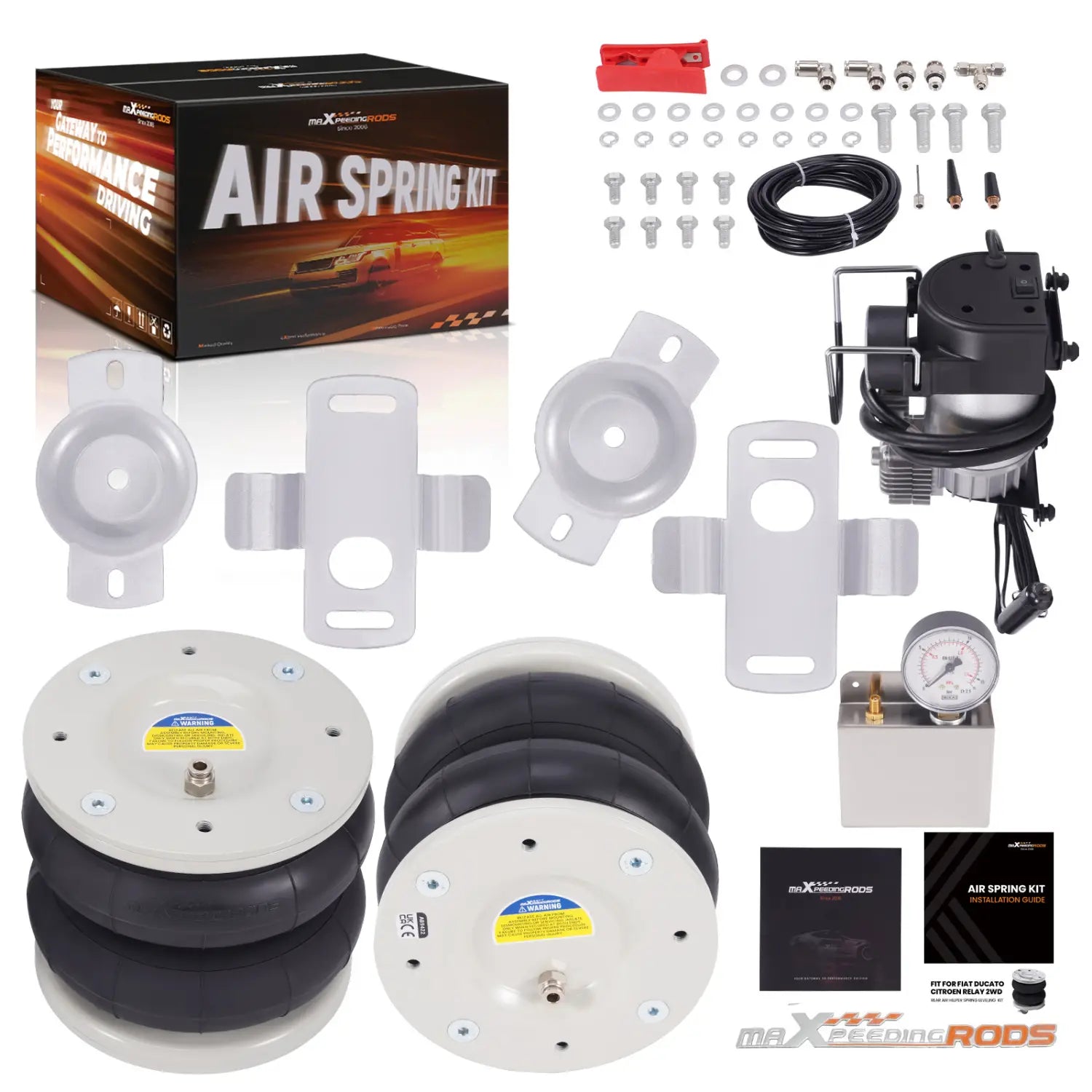

Package includes（as the picture shows）:
2x Natural Rubber & Hi-tensile steel Air spring bag
4x Galvanized Heavy duty mounting bracket
1x 12V Air suspension compressor
1x Barometer

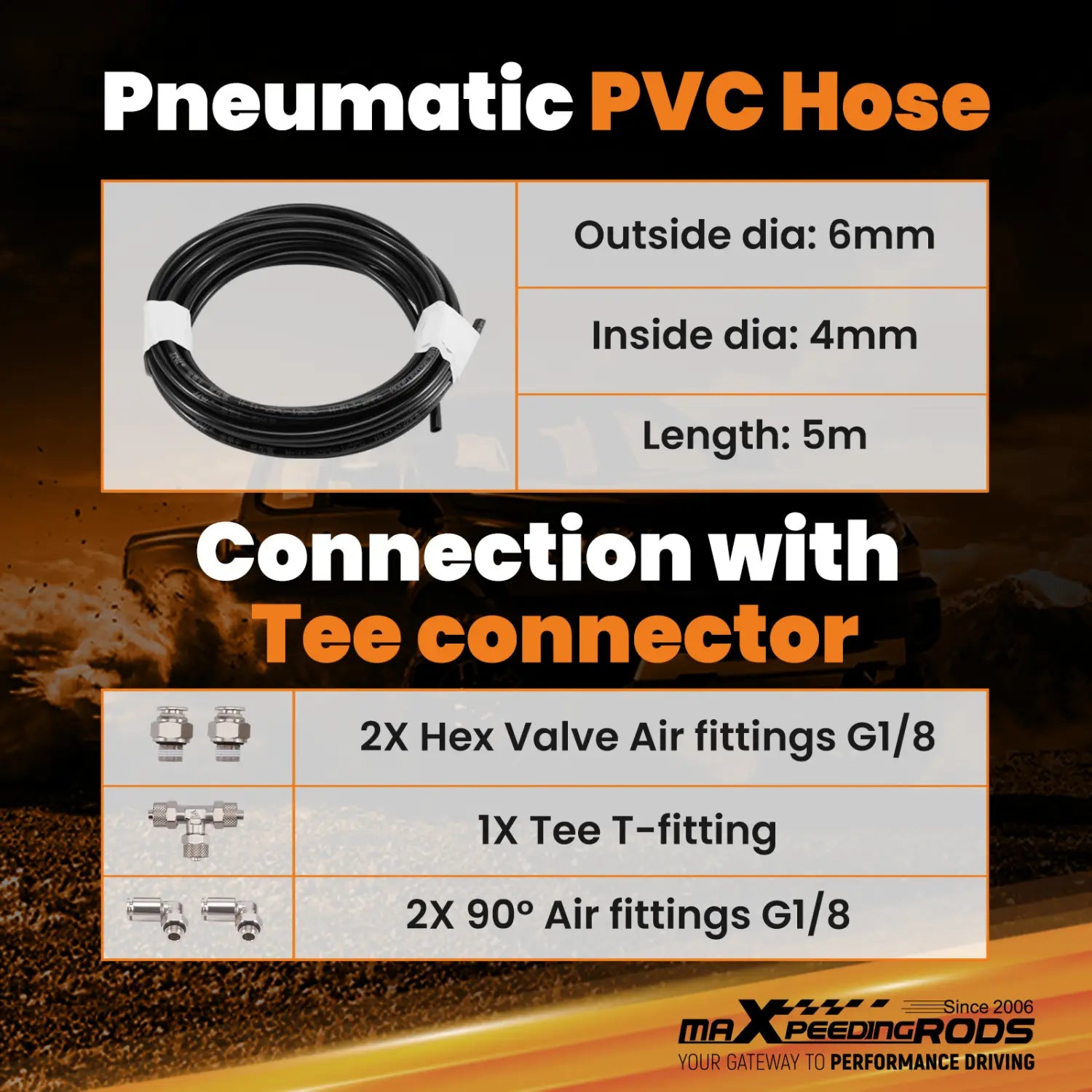

4x Air fitting
1x Air line 8m
1x Installation box
Mounting bolts and gaskets
Feature
1. Stress Test Over 5,000,000 Times：Durable and Safe
2. Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3. Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
4. Temperature Range ≥ -40℃/ ≤ 70℃：Premium Natural Rubber Material
5. Use high-quality steel with high load-bearing capacity and long life.
6. Excellent and practical bolt-on installation.
7. Safe carrying capacity and stability
8. Restore the original ride height and improve ride quality
9. Ensure our driving comfort and reduce tire wear.
Notice
- These air suspension kits are aftermarket ones. They will replace the original one.
- Professional installation is recommended.
- Contact us please for whatever we can help.
