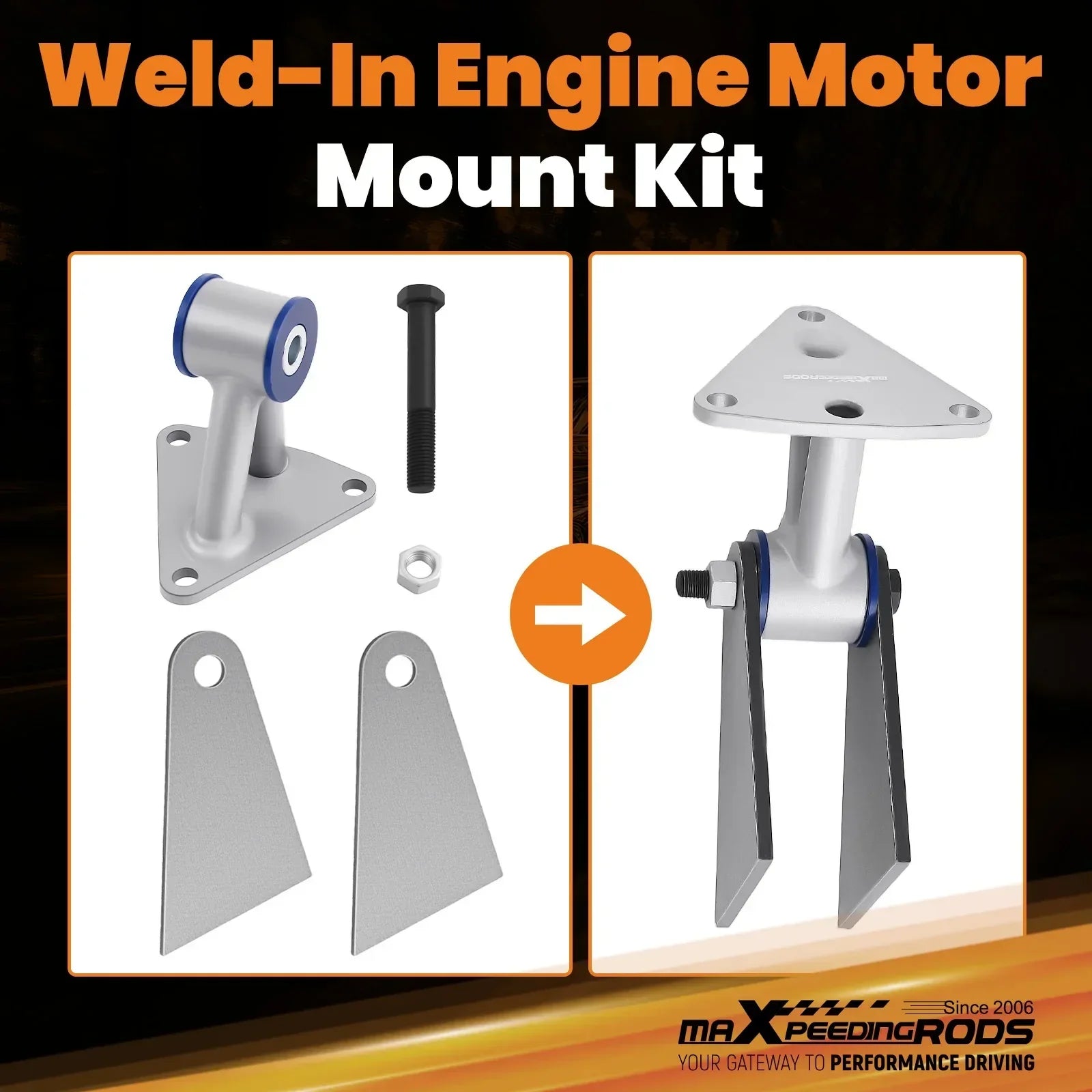

Weld-in engine mounts for Chevy SBC BBC
This engine mount kit is designed for the conversion and installation of Chevrolet Small Block and Big Block engines. These are weld-in mounts, meaning they are designed to be welded into the vehicle's structure. The offer includes two mounts, forming one pair.
Technical data
- Application: Chevy Small Block and Big Block engines
- Part type: engine mounts for welding
- Application designations: SBC, BBC
- Number of elements: 2 pieces, 1 pair
- Mounting elements: included in the set
- Condition: new
- Hole diameter: 0.50
- Total height: 4.13
- Sleeve length: 1.81
- Base length: 4.08
- Base width: 4.28
- Material thickness: 0.25
- Eye to eye spacing when bolted to the Chevy engine: 20 3/8"
- Length of single attachment to the center of the sleeve: 3,31"
- Spacing of the three engine mounting holes: 3,50" from center to center

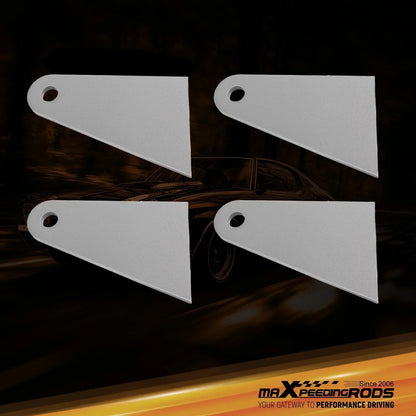

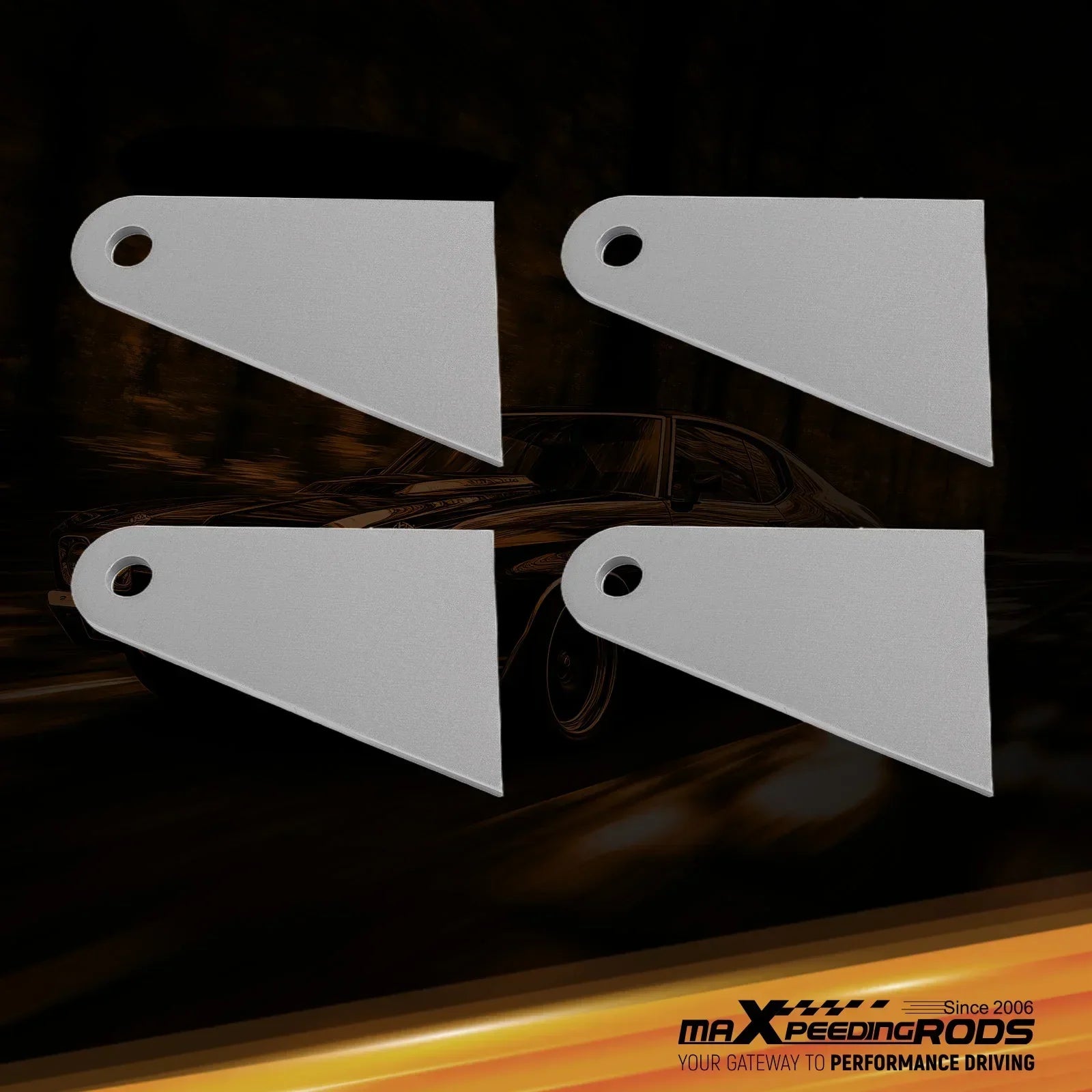

- Frame bracket length: 3 7/8"
Dimension values given without unit designation have been left as they appear in the source data.
Important information regarding assembly
The mounts are designed for welding, so before purchasing, please compare their dimensions, hole spacing, and connection method with your planned design and Chevy engine. The source data does not confirm the OEM/OE number or application to a specific vehicle model.
Helpful information before purchasing
This is a weld-on engine mount kit for projects using Chevy Small Block or Big Block engines, also known as SBC and BBC. This product is not model-specific or OEM/OE-specific. Before purchasing, please verify the dimensions and hole spacing for your planned build.
The most important information
- The set includes 2 mounts, i.e. 1 pair.
- Designed for Chevy Small Block and Big Block engines.
- Mounting hardware is included in the kit.
- The spacing of the three engine mounting holes is 3,50" from center to center.
- The eye to eye spacing when bolted to the Chevy engine is 20 3/8".

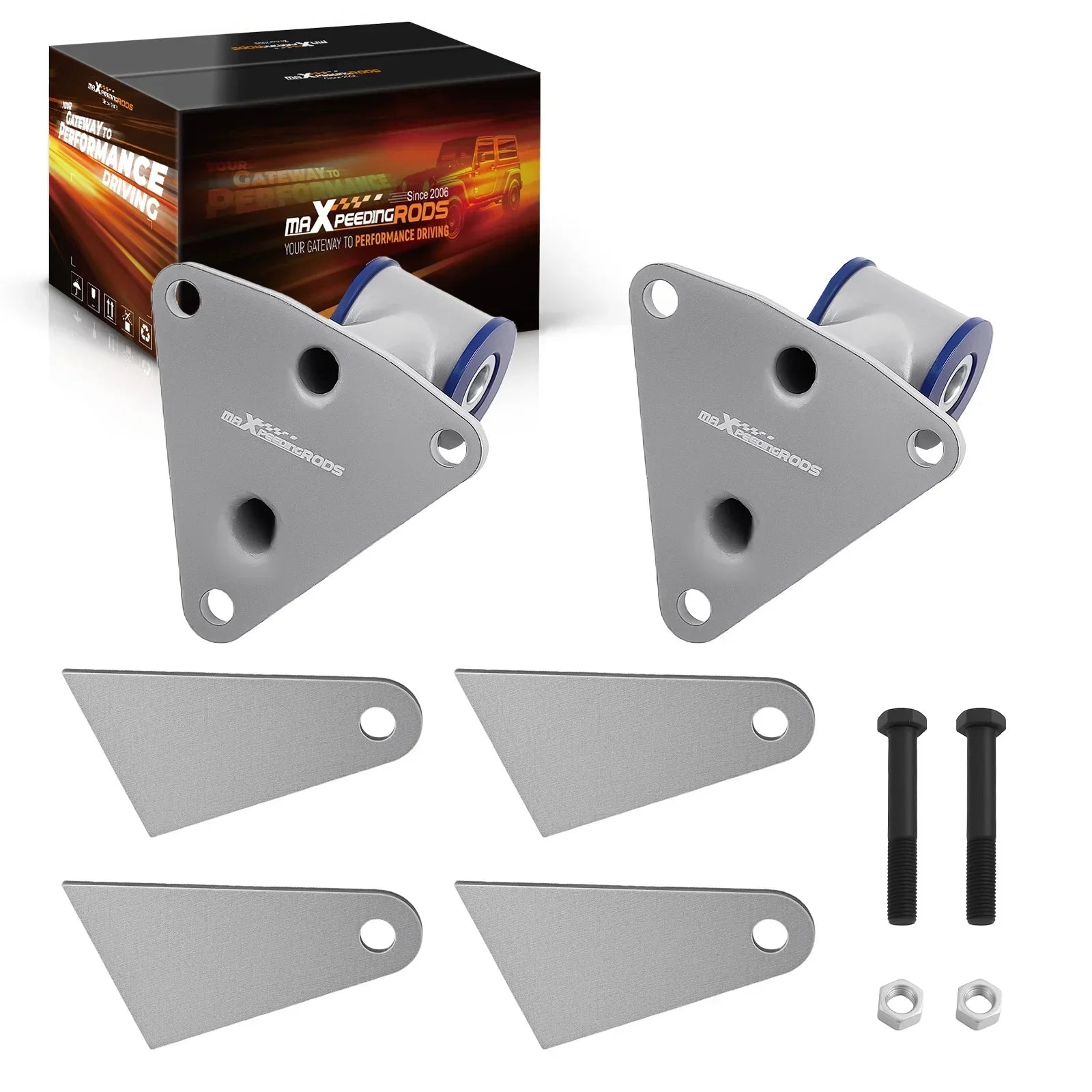

Contents of the set
Two weld-on engine mounts, forming one pair, and mounting hardware. The detailed composition of the mounting hardware is not specified in the source data.
Frequently asked questions
How do I check if a part fits?
Please compare the application for Chevy Small Block or Big Block engines, as well as the dimensions and bore spacing provided, with your vehicle's design. This offer does not include a confirmed assignment to a specific vehicle model or OEM/OE number.
Is the product ready for assembly?
The mounts are weld-in components and require welding into the appropriate structure. Mounting hardware is included in the kit, but preparation and assembly methods should be tailored to the specific project.
Does the offer include a complete set?
The offer includes 2 mounts, i.e. 1 pair, and mounting elements.
