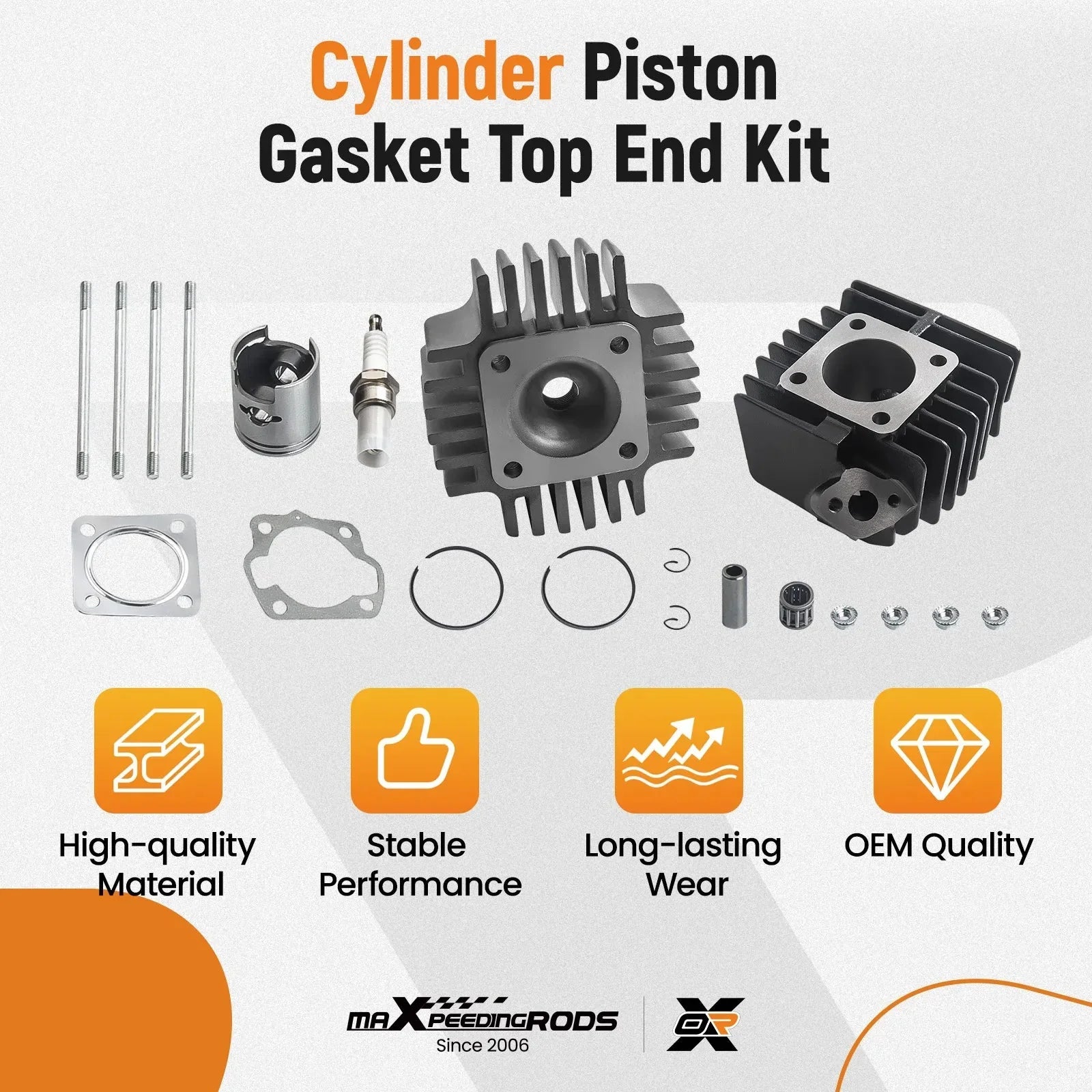

Suzuki 50cc Cylinder, Piston and Gasket Kit
Complete upper engine kit for select Suzuki LT A50, JR50, LT50, and WZ50 models. Kit includes 41mm bore cylinder, piston, piston rings, cylinder head, gaskets, and other components as specified.

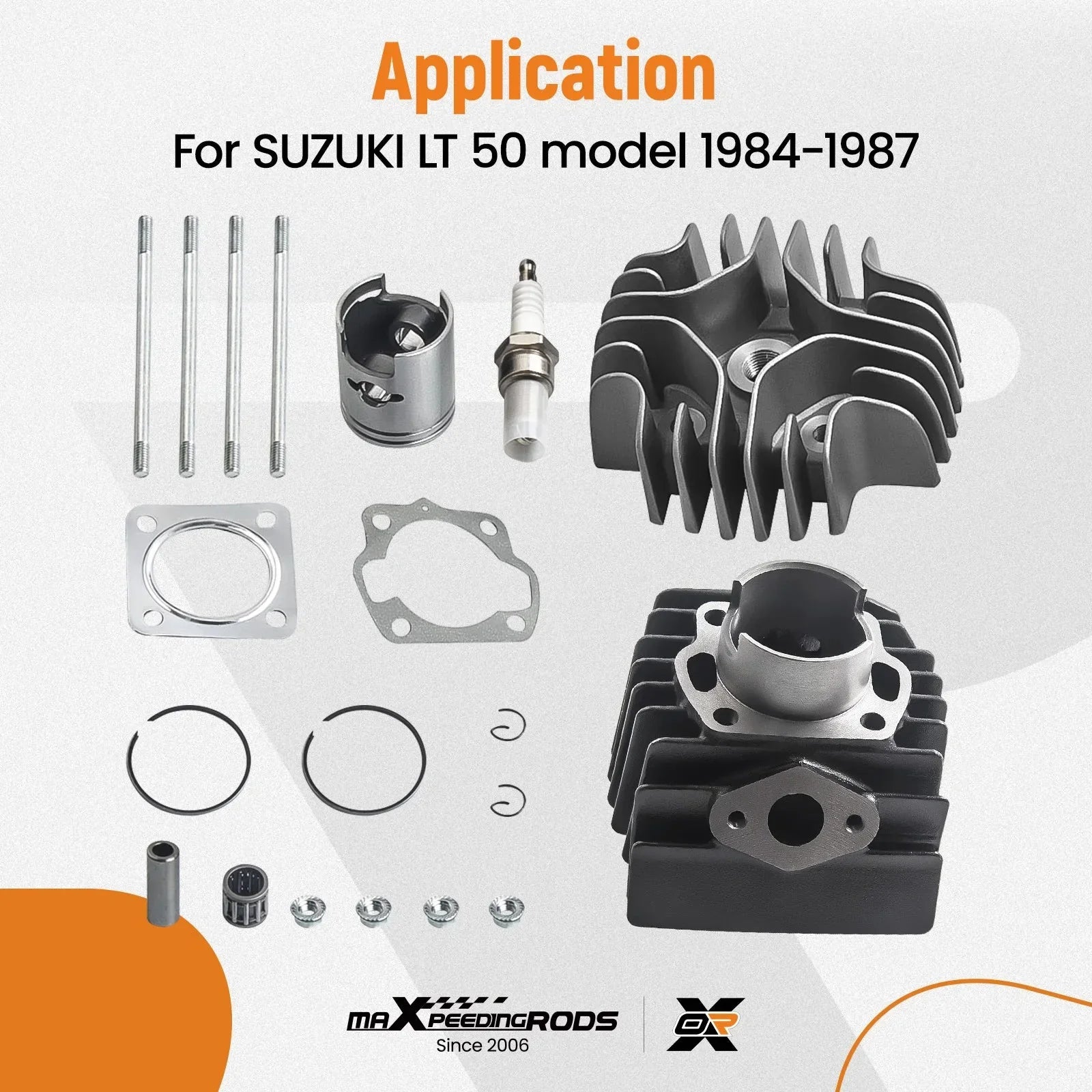

Application
- Suzuki LT A50 – 2002–2005
- Suzuki JR50 – 1985–2006
- Suzuki LT50 – 1984–1987
- Suzuki WZ50 – 1978–2006
Technical data
| Part type | Top engine cylinder, piston, rings and gasket set |
|---|---|
| Cylinder capacity | 49 cm³ |
| Cylinder diameter | 41 mm |
| Compression ratio | 5.6:1 |
Part numbers
Confirmed OEM/OE numbers: 11210-04012-0F0, 11210, 04012, 11210040120.
Additional part numbers listed in the source: 11210040120F0, 11111-04001, 1111104001, 11111 04001, 12110-43000, 1211043000, 12110 43000.
Helpful information before purchasing
Before purchasing, compare your Suzuki model and year with the application list and verify compatibility using the part numbers. This kit is for 49cc engines with a 41mm cylinder bore. The compatibility information also includes ALT50.
The most important information
- Kit includes cylinder, cylinder head, piston, piston pin and 2 piston rings.
- The kit includes a head gasket and a cylinder base gasket.
- Parameters given in the source: 49 cm³, cylinder diameter 41 mm, compression ratio 5.6:1.
- The product is recommended for Suzuki LT A50, JR50, LT50 and WZ50 models in specific years.

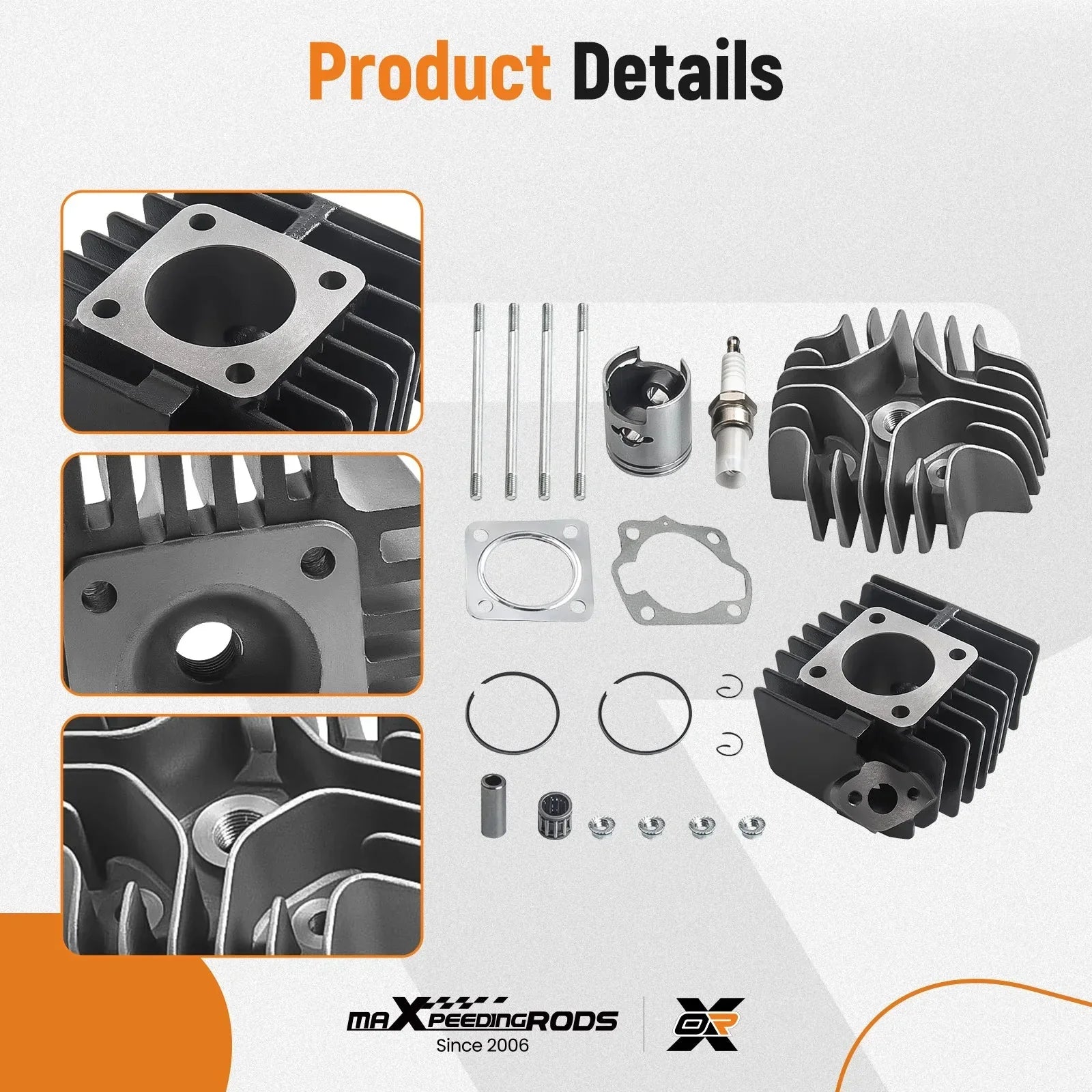

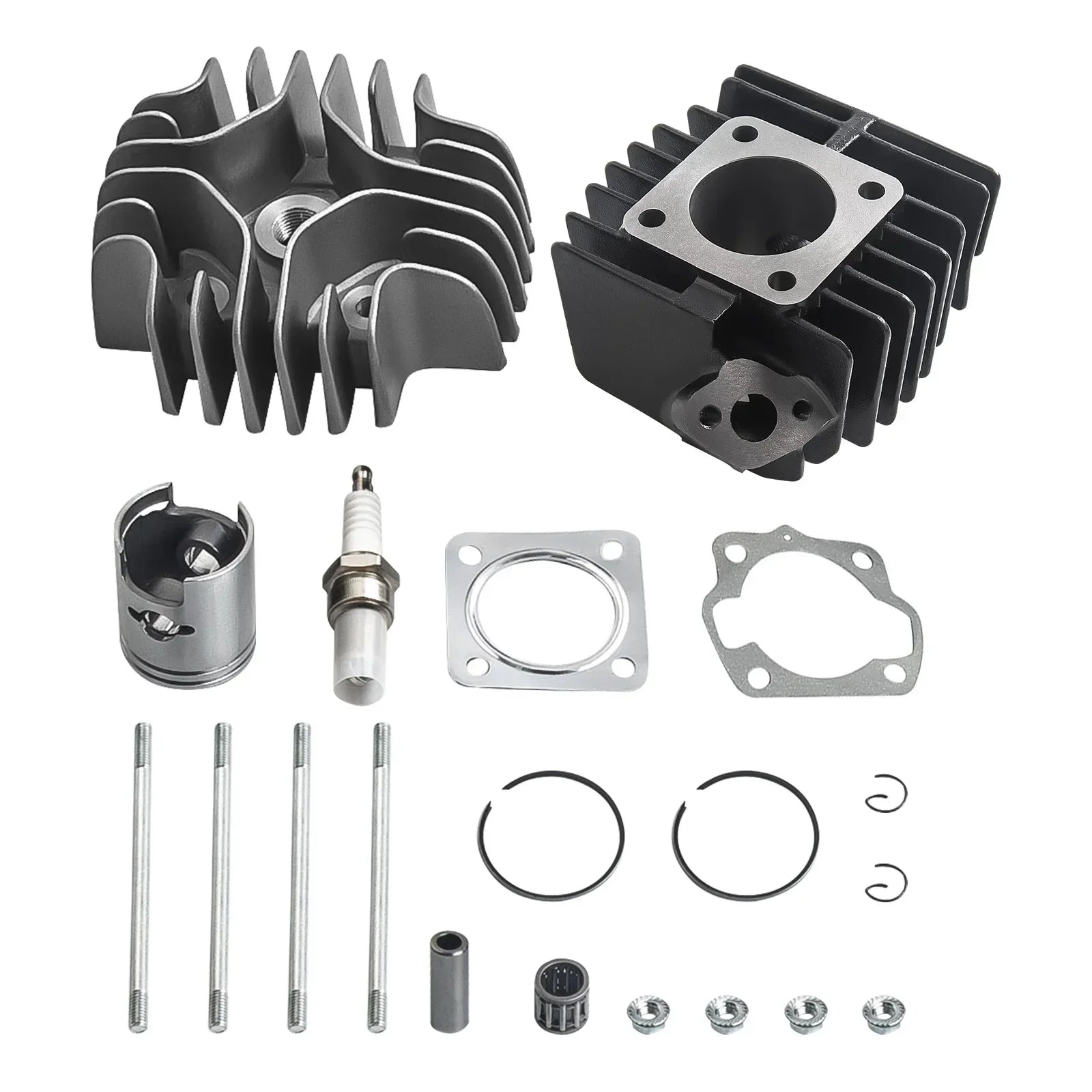

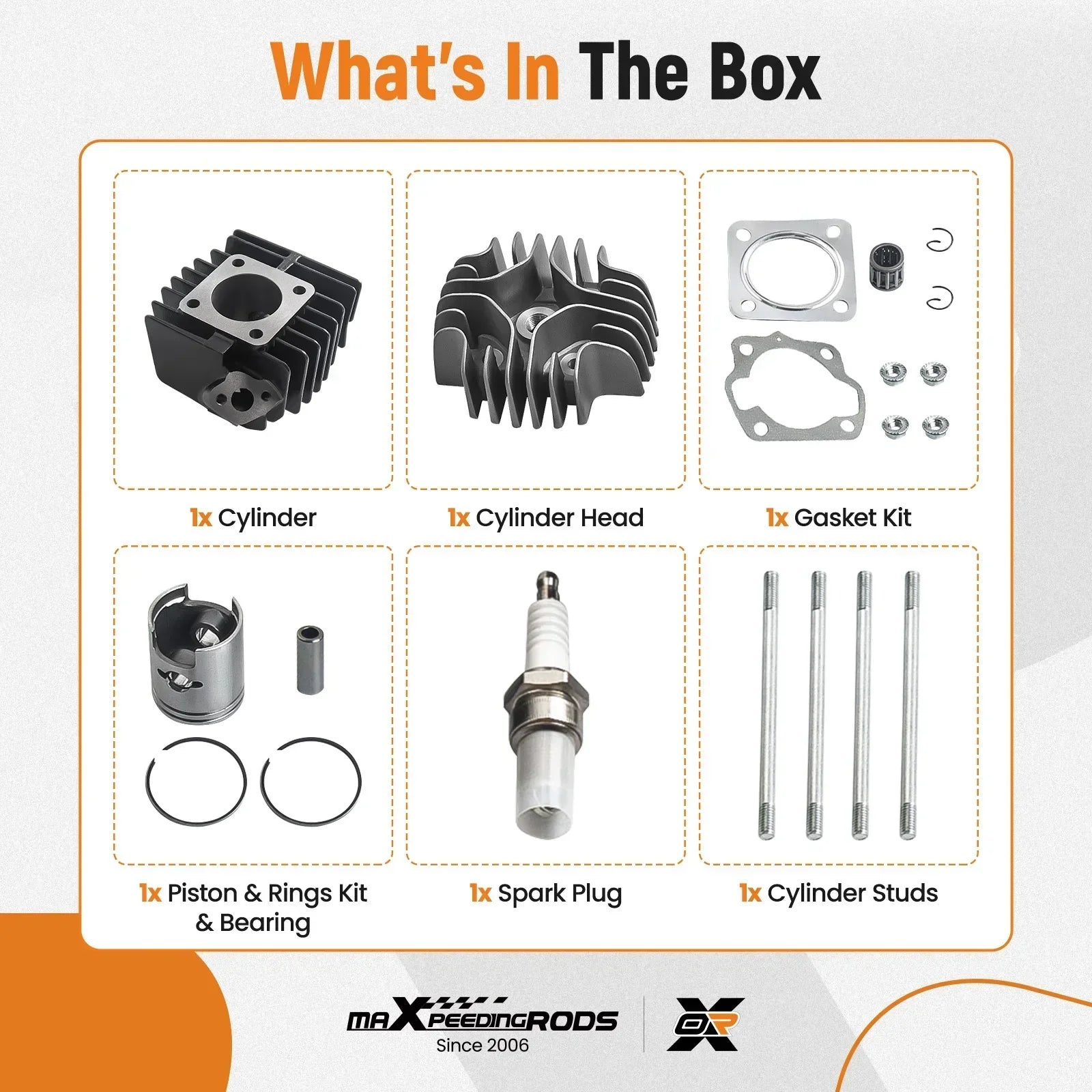

Contents of the set
- 1 × cylinder
- 1 × cylinder head
- 1 × piston
- 1 × piston pin
- 2 × piston ring
- 1 × head gasket
- 1 × cylinder base gasket
- 2 × pin protection
- 1 × needle bearing
- 4 × cylinder pin
- 4 × stud nut
- 1 × spark plug
- 1 × thread locking agent
Frequently asked questions
How do I check if a part fits?
Check your vehicle model and year in the application list, then compare the part number and 41mm cylinder diameter to the component fitted to your vehicle.
Is the product ready for assembly?
The source does not confirm the kit's level of preparation for installation. Before installation, please verify the compatibility of all components with your specific engine.
Does the offer include a complete set?
The offer includes the items listed in the "Kit Contents" section, including cylinder, head, piston, rings, gaskets and the indicated accessories.
