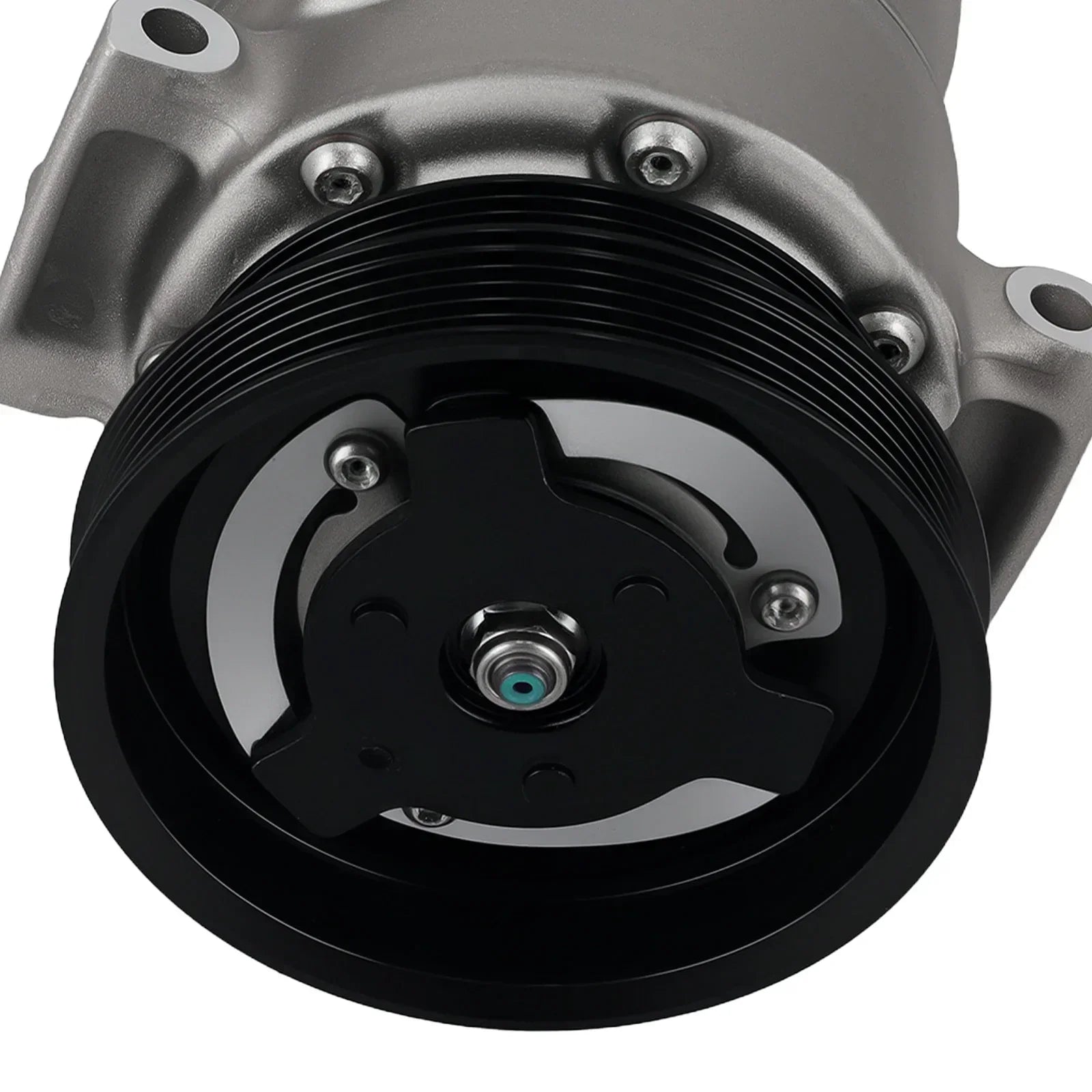

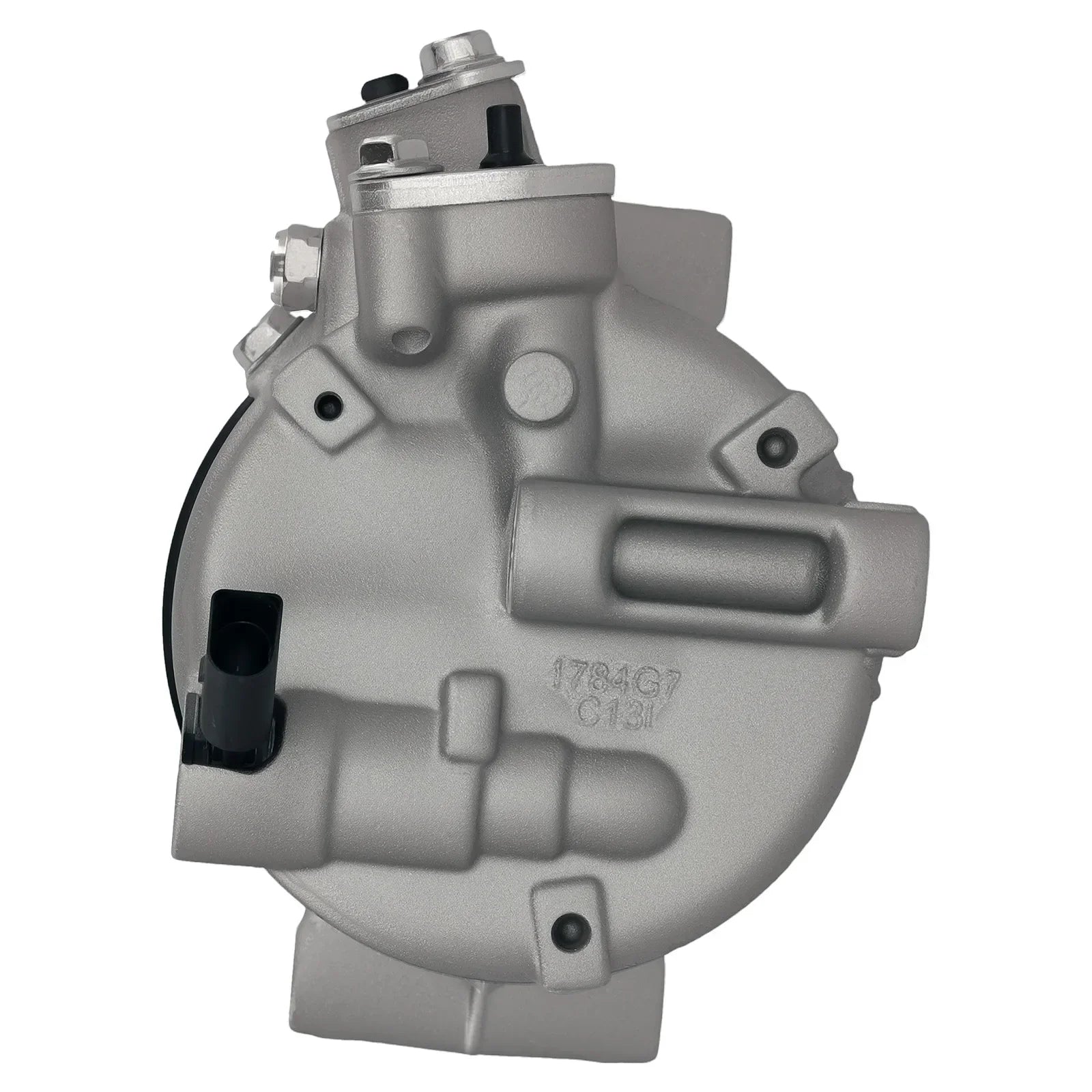

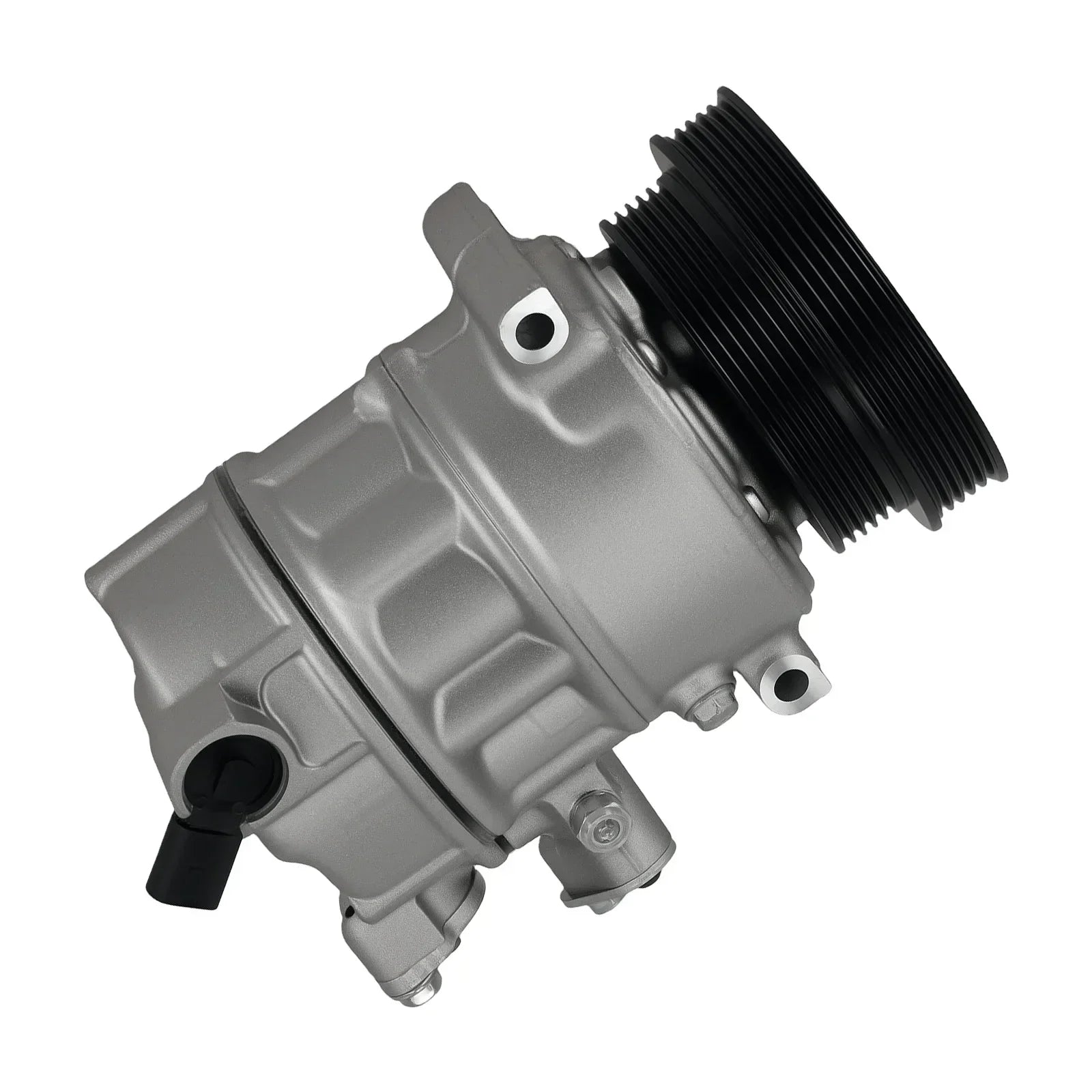

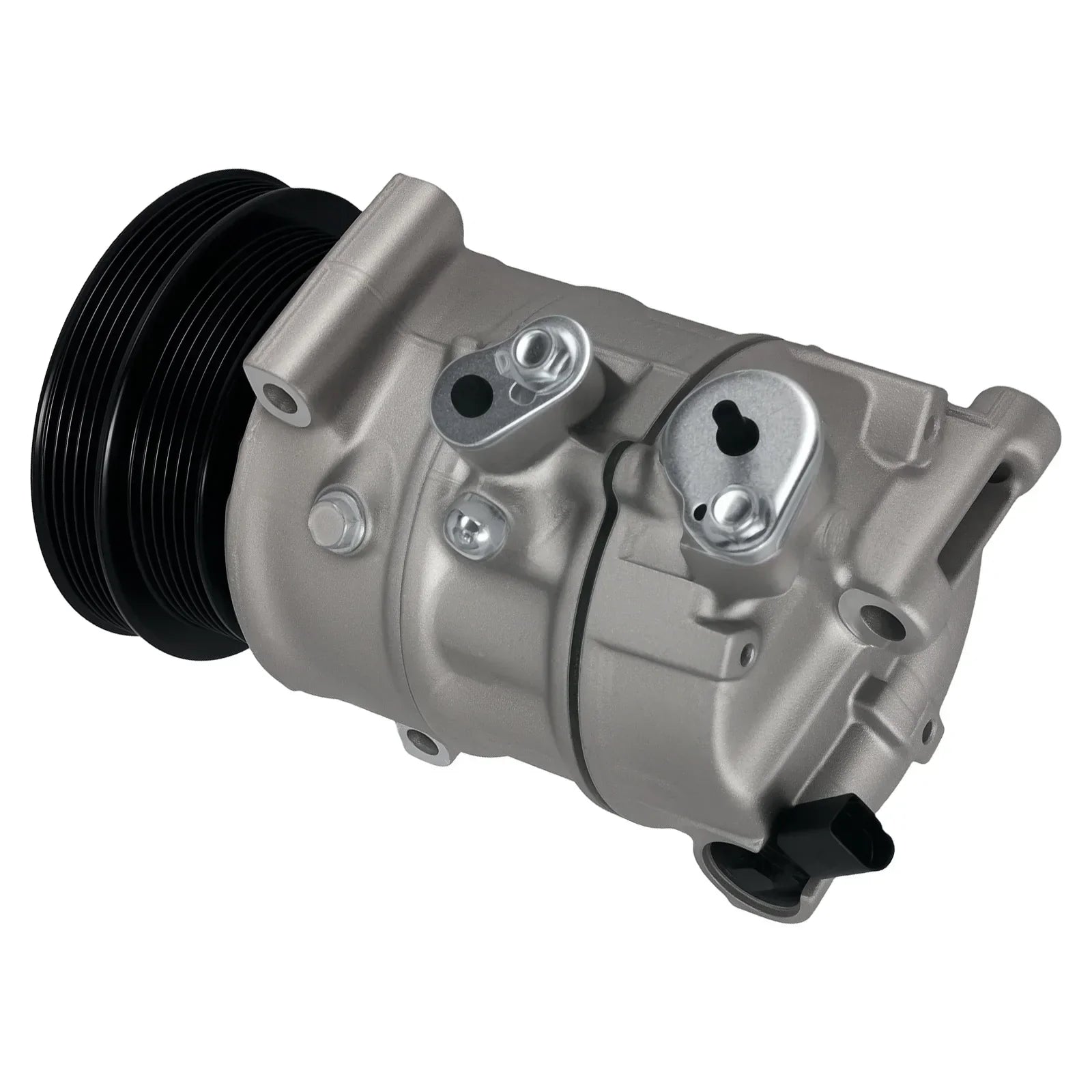

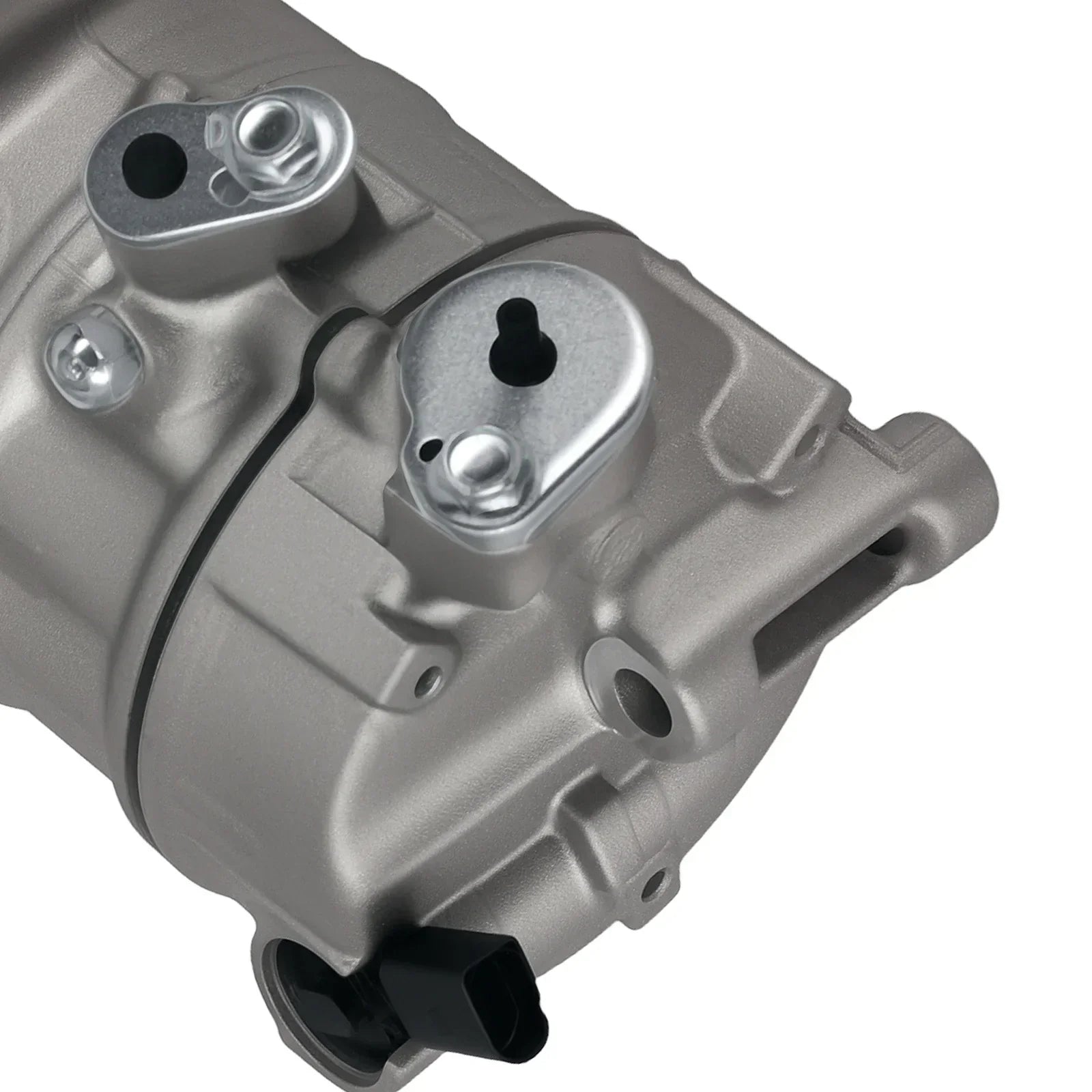

PXE16 air conditioning compressor with clutch
Air conditioning compressor with attached clutch, designed for select Audi TT and Volkswagen vehicles with 2.5L engines. This product has a 12V voltage, R134a refrigerant, and PAG46 oil. The oil is factory-filled with 180ml, with a 10ml tolerance.
Application
- Audi TT: 2012–2013
- Volkswagen Beetle: 2006–2014
- Volkswagen Beetle Convertible: 2010
- Volkswagen Golf: 2010–2014
- Volkswagen Jetta: 2005–2010 and 2012–2014; does not fit 2011
- Volkswagen Passat: 2012–2014
- Volkswagen R32: 2008
- Volkswagen Rabbit: 2006–2009
Attention: The application only applies to versions with a 2.5 l engine. Before ordering, please compare the model, year, parameters and part number.
Technical specifications
- Compressor type: PXE16
- Clutch: included
- Voltage: 12V
- Refrigerant: R134a
- Oil: PAG46
- Pre-filled oil: 180 ml, tolerance 10 ml
- Material: aluminum
- Number of pulley grooves: 5 + 5
- Pulley diameter: 110 mm
- Suction port diameter: 28 mm
- Location in the vehicle: front
- O-rings: included
- Dimensions according to source data: height 19.2; length 28.4; width 22
- Weight according to source data: 6.05
OEM/OE numbers
CO4574JC, 198567, 2008688, 1K0820859G, 0820859
Helpful information before purchasing
This is a PXE16 air conditioning compressor with clutch for selected Audi TT and Volkswagen models with a 2.5-liter engine. For the Volkswagen Jetta, the offer covers years 2005–2010 and 2012–2014, but not the 2011 model year. Selection should be confirmed based on the model, year, engine and part number.
The most important information
- The product includes an air conditioning compressor with a clutch.
- Designed for systems using R134a refrigerant and PAG46 oil.
- The oil is pre-filled with 180 ml, with a tolerance of 10 ml.
- The compressor has a pulley with a diameter of 110 mm and 5 + 5 grooves.
- Applies only to versions with a 2.5 l engine.
Contents of the set
1 × A/C compressor with clutch. Product data also confirms the inclusion of O-rings.
Frequently asked questions
How do I check if a part fits?
Compare make, model, year, 2.5L engine version, mounting position, PXE16 type and numbers CO4574JC, 198567, 2008688, 1K0820859G or 0820859. For Volkswagen Jetta do not select this version until model year 2011.
Is the product ready for assembly?
The source confirms the clutch is present and the initial oil fill is complete. The scope of installation and air conditioning system preparation should be verified in accordance with the vehicle's requirements.
Does the offer include a complete set?
The offer includes one compressor with a clutch. The product data also indicates that O-rings are included.
